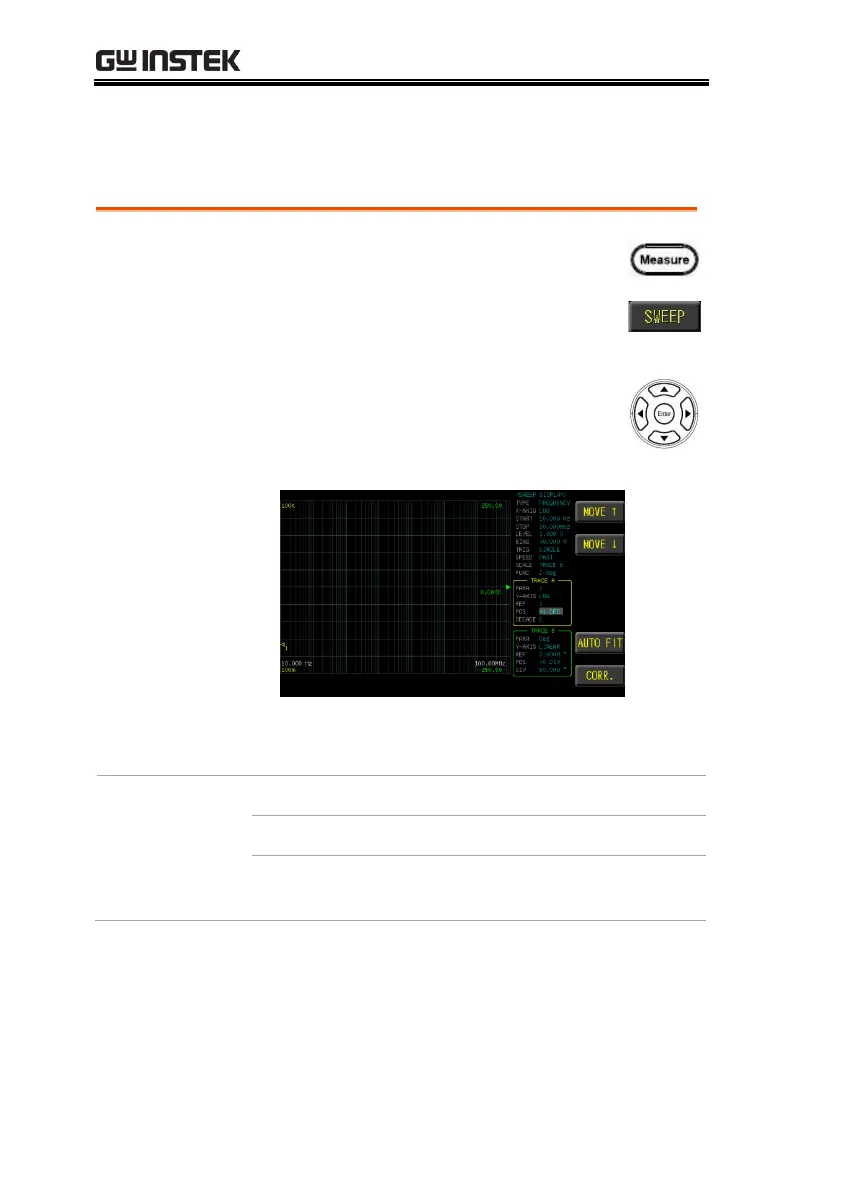

Setting pos
Move the graphic of trace A or trace B.
Steps
1. Press the Measure button to enter
[MEAS DISPLAY] page, and then
press the SWEEP function button on
the right side of the LCD to enter the
[SWEEP DISPLAY] page.
2. Use arrow keys to move the cursor
and select POS item on the [SWEEP
DISPLAY] page.
3. Use option key on the right of the LCD screen
to select a scale type for this sweep item.
Available
parameter
MOVE↑
Move the sweep graphic up
MOVE↓
Move the sweep graphic down
AUTO
FIT
Automatically adjust the Y-axis scale
and position of the sweep graph
