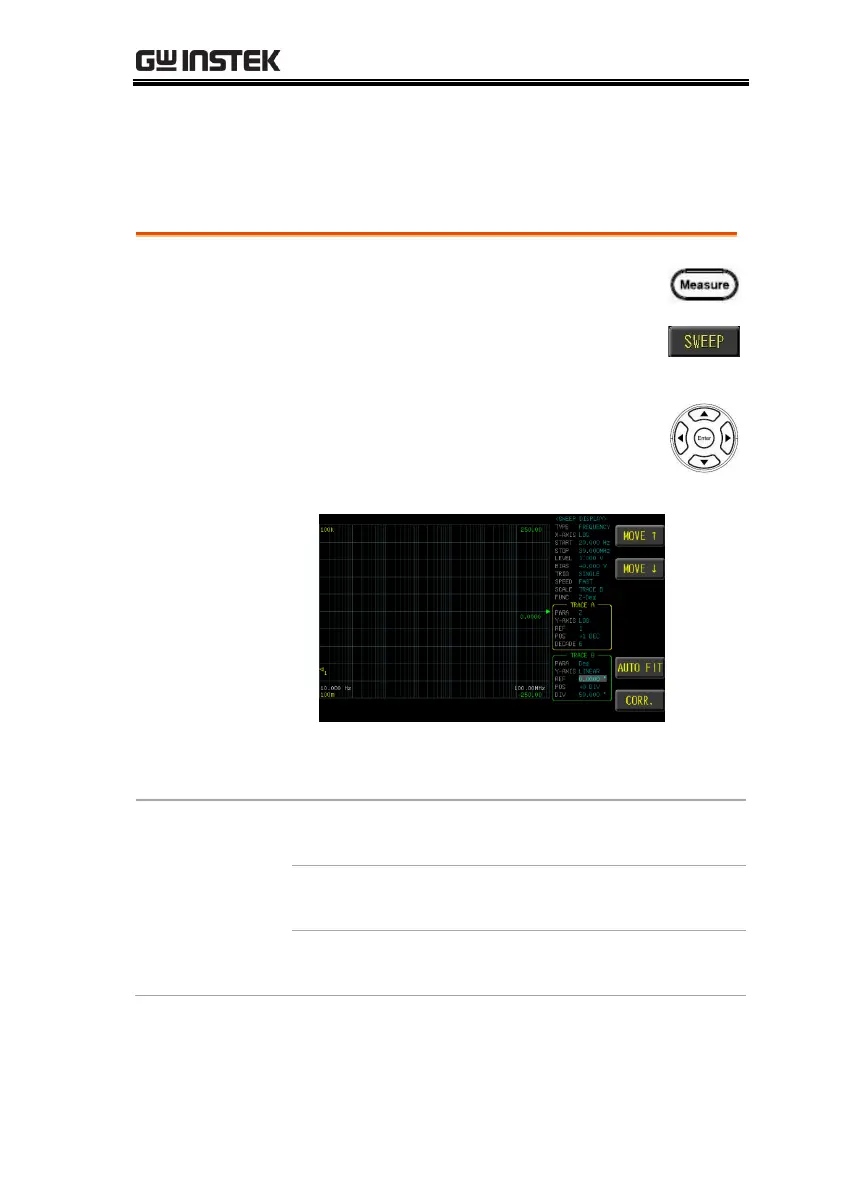

SWEEP (GRAPH MODE)
75
Setting ref
Set the Y-axis reference point scale for trace A or B. This parameter
can be set by selecting LINEAR in Y-axis.
1. Press the Measure button to enter
[MEAS DISPLAY] page, and then
press the SWEEP function button on
the right side of the LCD to enter the
[SWEEP DISPLAY] page.
2. Use arrow keys to move the cursor
and select REF item on the [SWEEP
DISPLAY] page.
3. Use option key on the right of the LCD screen
to select a scale type for this sweep item.
Reference point scale is adjusted
downwards
Reference point scale is adjusted
upwards
Automatically adjust the Y-axis scale
and position of the sweep graph
