SWEEP (GRAPH MODE)
79

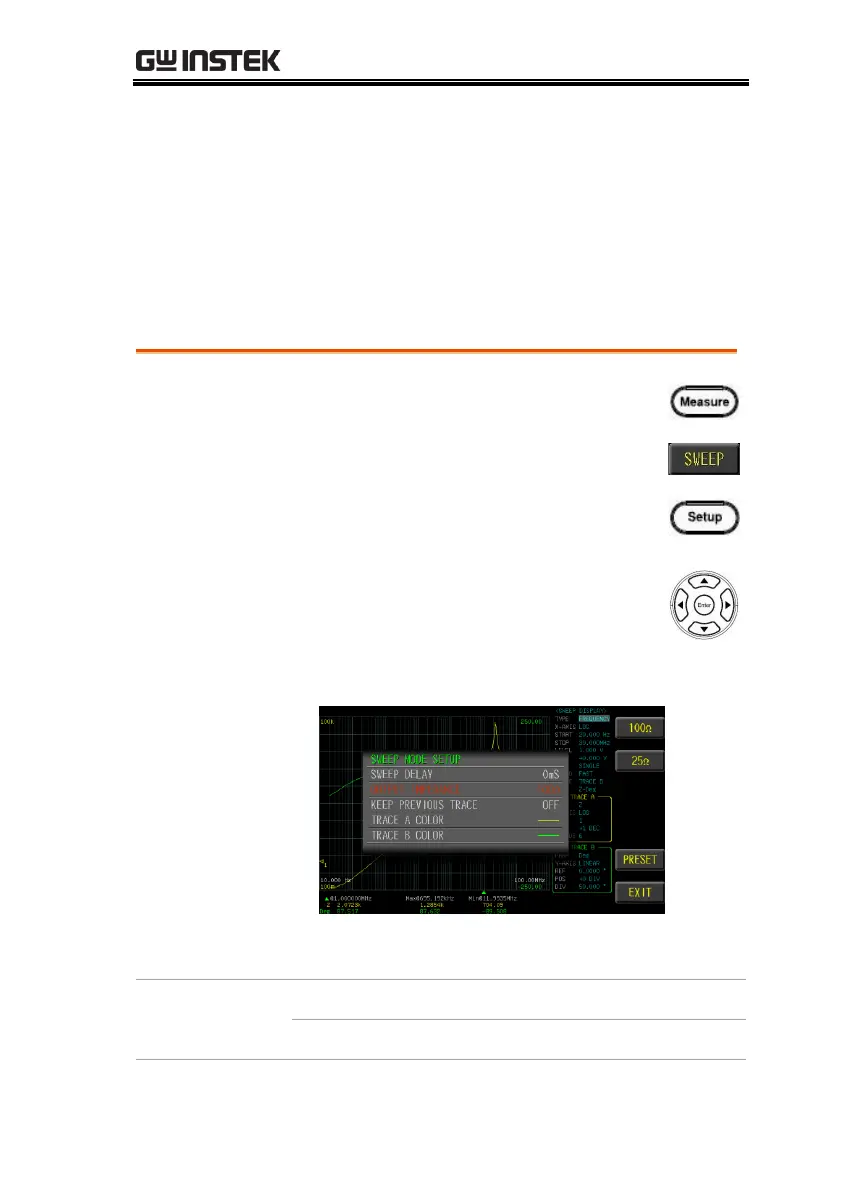

Setting output impedance
The output impedance can be set to 25Ω or 100Ω.
The varied signal source output impedance will lead to the varied
current or the difference of measuring value. If selecting <25Ω>,
then the voltage range is 10mV~1Vrms and the current range is
400µA~40mArms.
If need to compare test results with Keysight select 100Ω.
1. Press the Measure button to enter
[MEAS DISPLAY] page, and then
press the SWEEP function button on
the right side of the LCD to enter the
[SWEEP DISPLAY] page, and press
the Setup button to enter [SWEEP
MODE SETUP] page.
2. Use arrow keys to move the cursor
and select OUTPUT IMPEDANCE
item on the [SWEEP MODE SETUP]
page.
3. Use the numeric keypad to enter the time (ms).
Set output impedance to 100Ω
Set output impedance to 25Ω
To Next Page
