GW Instek LCR Series User Manual

GETTING STARTED
21
Connect to the test terminal
Background
Please use the test fixture to connect to the test
terminal for testing. Please follow the procedure
below to connect.
Steps
Please insert the test fixture into the terminal of
the test equipment correctly.
1. Turn the left and right handles of the test
fixture to turn the BNC notch to the top and align
the BNC bumps of the test equipment.
2. Test the fixture into the BNC terminal of the
test equipment.
3. Rotate the left and right handles of the test
fixture to the right and push the test fixture to the
end. As shown below.

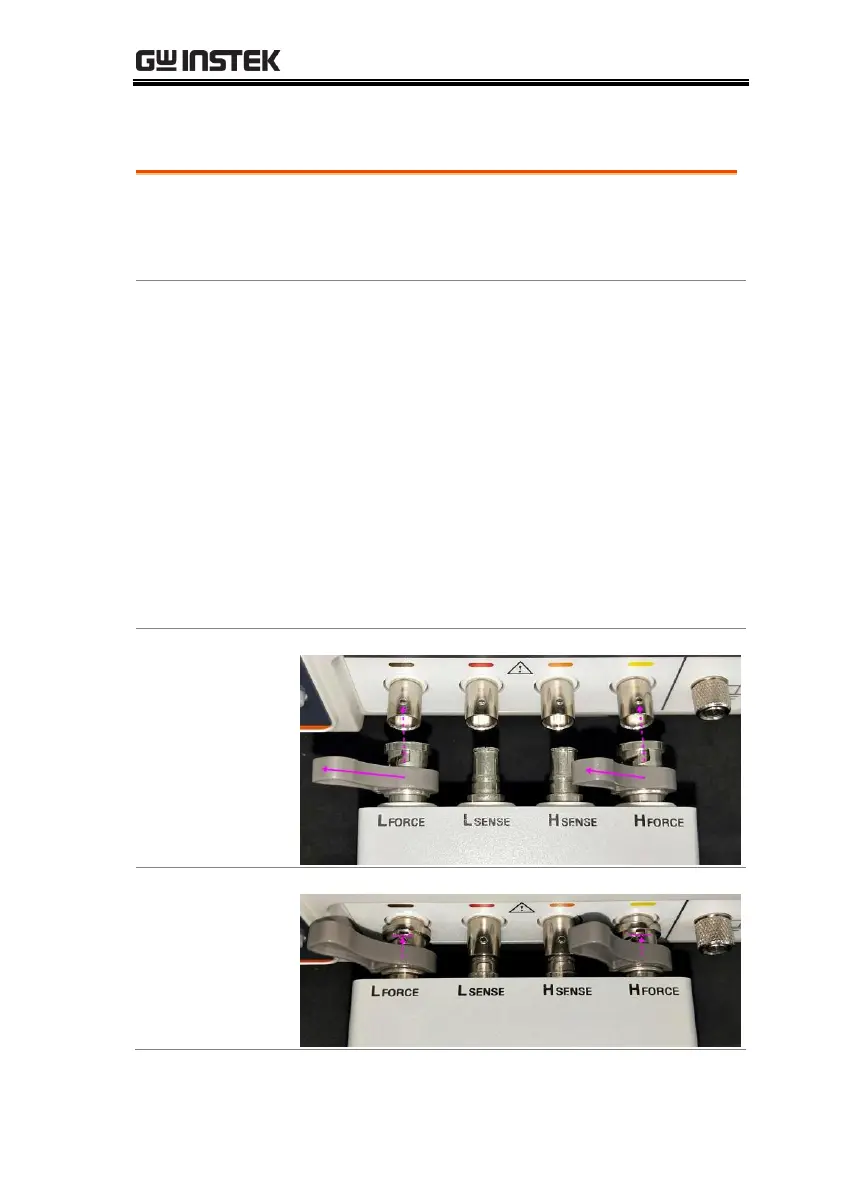

Connection
diagram
1.
2.
