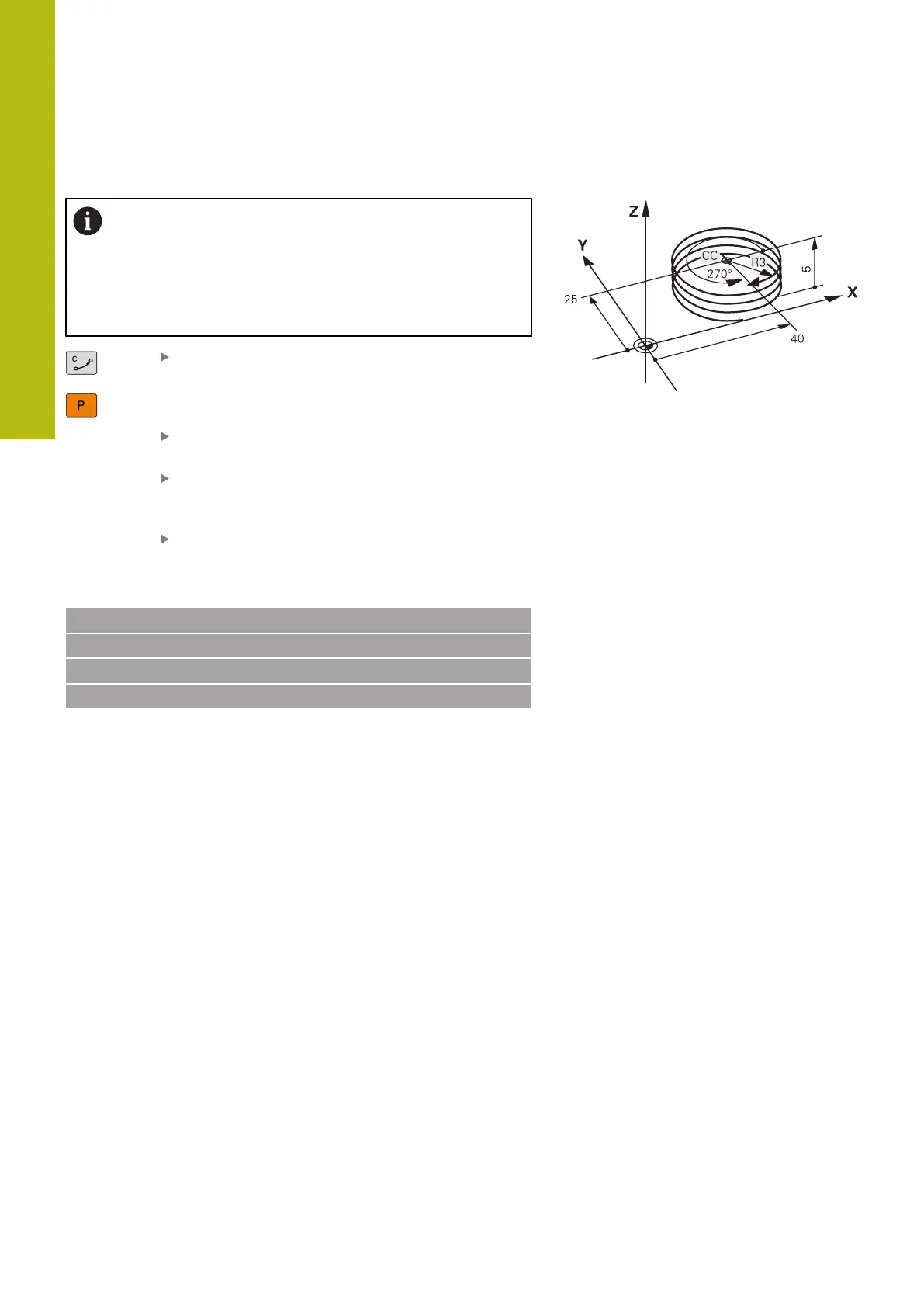

HEIDENHAIN TNC 620 Programming Station

Programming Qparameters | Additional functions
9
Defining the output path in machine parameters
If you wish to save the measurement results to a certain directory,
you can define the output path for the log file in the machine
parameters.
To change the output path:
Press the MOD key
Enter the code number 123
Select the machine parameter CfgUserPath (no.
102200)
Select the machine parameter fn16DefaultPath
(no. 102202)
The control opens a pop-up window.
Select the output path for the machine operating
modes
Select the parameter fn16DefaultPathSim (no.
102203)
The control opens a pop-up window.
Select the output path for the Programming and
Test Run operating modes
Enter the source or the target with parameters
You can enter the source file and the output file as Q parameters or
as QS parameters. For this purpose you previously define the desired
parameter in the NC program.
Further information: "Assigning string parameters", Page 312
Enter Q parameters in the FN 16 function with the following syntax
so that the control can detect the Qparameters:
Input Function
:'QS1' Set QS parameters with preceding colon and
between single quotation marks
:'QL3'.txt Specify additional file name extension for the
target file if required
If you want to output a path with a QS parameter to a
log file, then use the function %RS. This ensures that
the control does not interpret the special characters as
formatting characters.
304
