HEIDENHAIN TNC 620 Programming Station

Data transfer from CAD files | CAD Import (option 42)
12
Element information
In the Element Information window, the control displays the
coordinates of the last machining position selected.

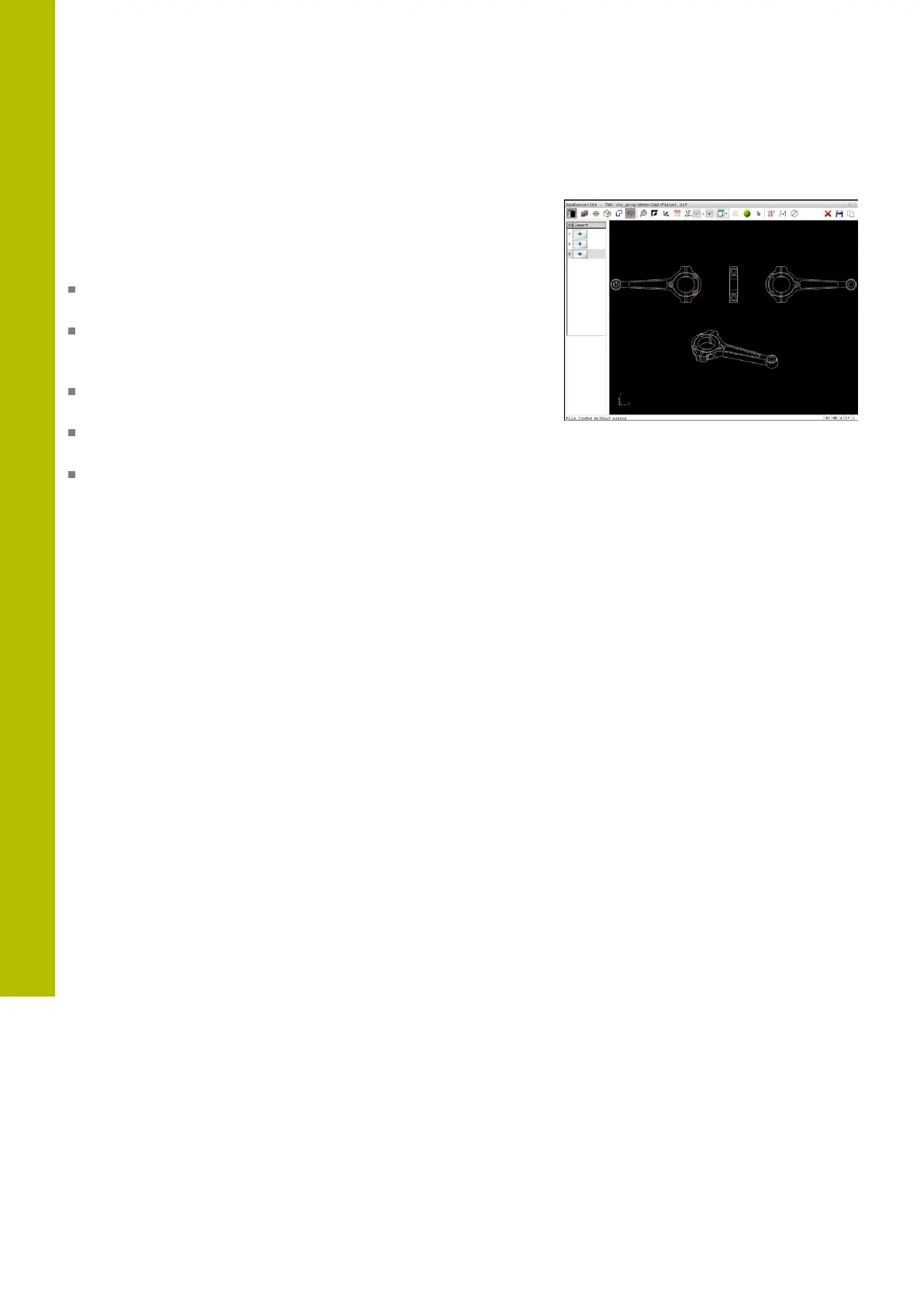

You can also use the mouse to change the turning graphic. The
following functions are available:
To rotate the graphic move the mouse while holding down the
right mouse button.
To shift the displayed model, hold down the center mouse button
or the mouse wheel (depending on your mouse model), and move
the mouse.
To zoom in on a certain area mark a zoom area by holding the
left mouse button down
To rapidly zoom in or out rotate the mouse wheel backwards or
forwards
To restore the standard view, double-click with the right mouse
button
516
