HEIDENHAIN TNC 620 Programming Station User Manual

Multiple-Axis Machining | The PLANE function: Tilting the working plane (option 8)
13
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
553

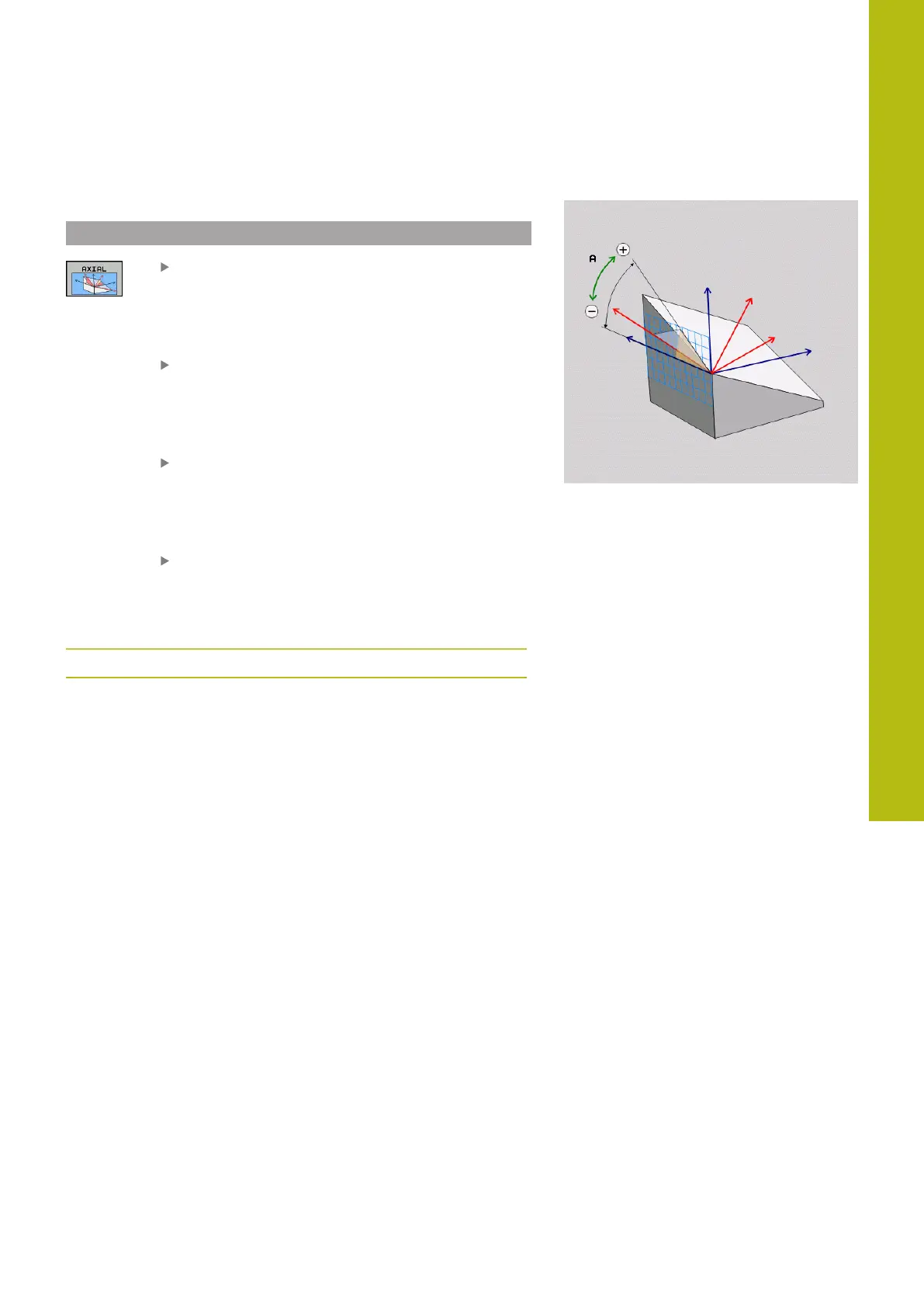

Input parameters
Example
5 PLANE AXIAL B-45 .....
Axis angle A?: Axis angle to which the A axis
is to be tilted. If entered incrementally, it is the
angle by which the A axis is to be tilted from its
current position. Input range: –99999.9999° to
+99999.9999°
Axis angle B?: Axis angle to which the B axis
is to be tilted. If entered incrementally, it is the
angle by which the B axis is to be tilted from its
current position. Input range: –99999.9999° to
+99999.9999°
Axis angle C?: Axis angle to which the C axis
is to be tilted. If entered incrementally, it is the
angle by which the C axis is to be tilted from its
current position. Input range: –99999.9999° to
+99999.9999°
Continue with the positioning properties
Further information: "Specifying the positioning
behavior of the PLANE function", page 554
Abbreviations used
Abbreviation Meaning
AXIAL
In the axial direction
