Tables and overviews | System data
15
Group
name
Group number
ID...
System data
number NO....
Index IDX... Description
1 Formatting of: System time in seconds
that have elapsed since 00:00:00 UTC on
January1, 1970 (look-ahead calculation)
Format: DD.MM.YYYY hh:mm
0 The current calendar week number according
to ISO 8601 (real time)
20
1 The current calendar week number according
to ISO 8601 (look-ahead calculation)
Global Program Settings (GPS): Global activation status
330 0 - 0 = No GPS setting is active
1 = Any GPS setting is active
Global Program Settings (GPS): Individual activation status
0 - 0 = No GPS setting is active
1 = Any GPS setting is active
1 - GPS: Basic rotation
0 = Off, 1 = On
3 Axis GPS: Mirroring
0 = Off, 1 = On
Index: 1 - 6 (X, Y, Z, A, B, C)
4 - GPS: Shift in the modified workpiece system
0 = Off, 1 = On
5 - GPS: Rotation in input system
0 = Off, 1 = On
6 - GPS: Feed rate factor
0 = Off, 1 = On
8 - GPS: Handwheel superimpositioning
0 = Off, 1 = On

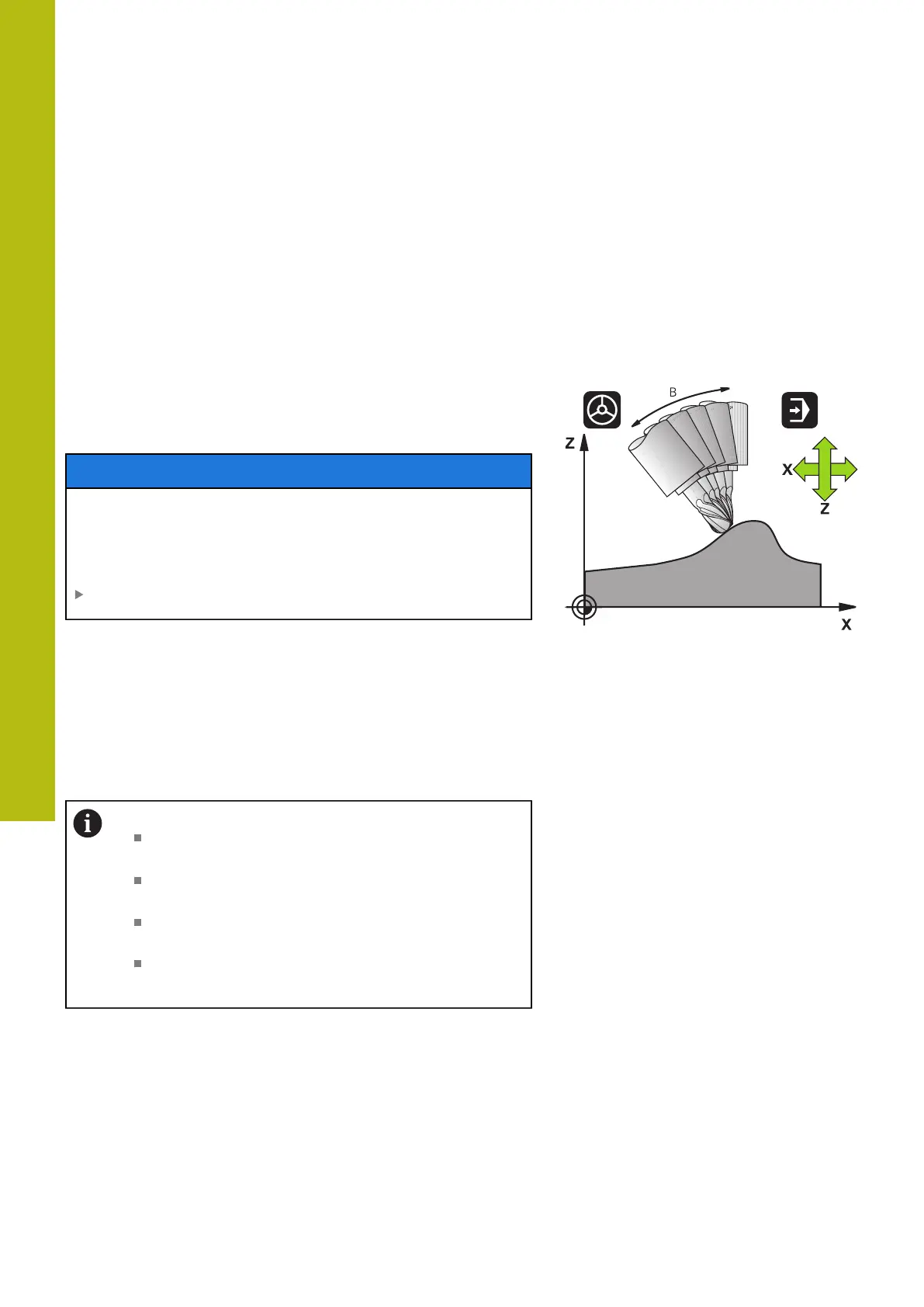

10 - GPS: Virtual tool axis VT
0 = Off, 1 = On
15 - GPS: Selection of the handwheel coordinate
system
0 = Machine coordinate system M-CS
1 = Workpiece coordinate system W-CS
2 = Modified workpiece coordinate system
mW-CS
3 = Working plane coordinate system WPL-CS
16 - GPS: Shift in the workpiece system
0 = Off, 1 = On
331
17 - GPS: Axis offset
0 = Off, 1 = On
568
