Hioki 3166 - Integrated Output Rate

119
────────────────────────────────────────────────────
7.5 Changing Settings
────────────────────────────────────────────────────
7
.5.10 Integrated Output Rate
Integrated Output Rate Setting
NOTE
Integrated powe
r
Integration star
t
Elapsed tim
e
* When active power is 5 kW with a uniform increas
e

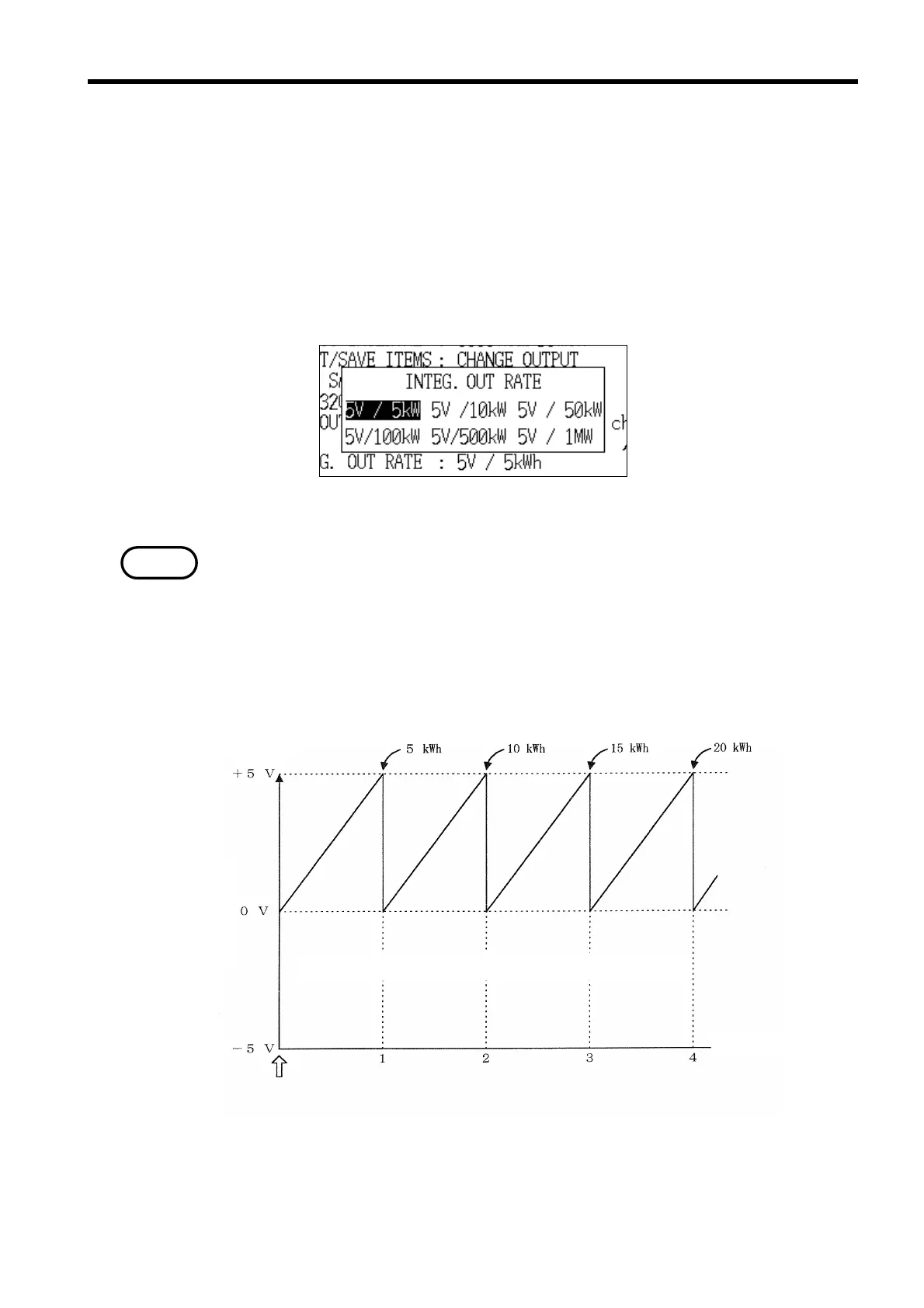

Integrated Output Waveform Example
This item sets the output rate when using D/A output of integrated values
(active power integration).
Output is generated by ±5 VDC versus the full scale for the power integration
that was set.
Options: 5 V/5 kW, 5 V/10 kW, 5 V/50 kW, 5 V/100 kW,
5 V/500 kW, 5 V/1 MW
* 5 V/5 kW
・For details on the specific method for setting the integrated output rate, refer
to section 6.5.11, "Integrated Output Rate."
・Select a suitable integration output rate based on expected power levels. In
order to see changes in detail, a small full-scale value should be selected.
・If the power level increases uniformly, once it reaches the full-scale setting
the output voltage returns 0 V once and then increases again. (The level is
recorded as a sawtooth wave.)
