Hioki 3166 - Displaying Instantaneous Values

73
────────────────────────────────────────────────────
6.4 Taking Measurements
────────────────────────────────────────────────────
6
.4.4 Displaying Instantaneous Values

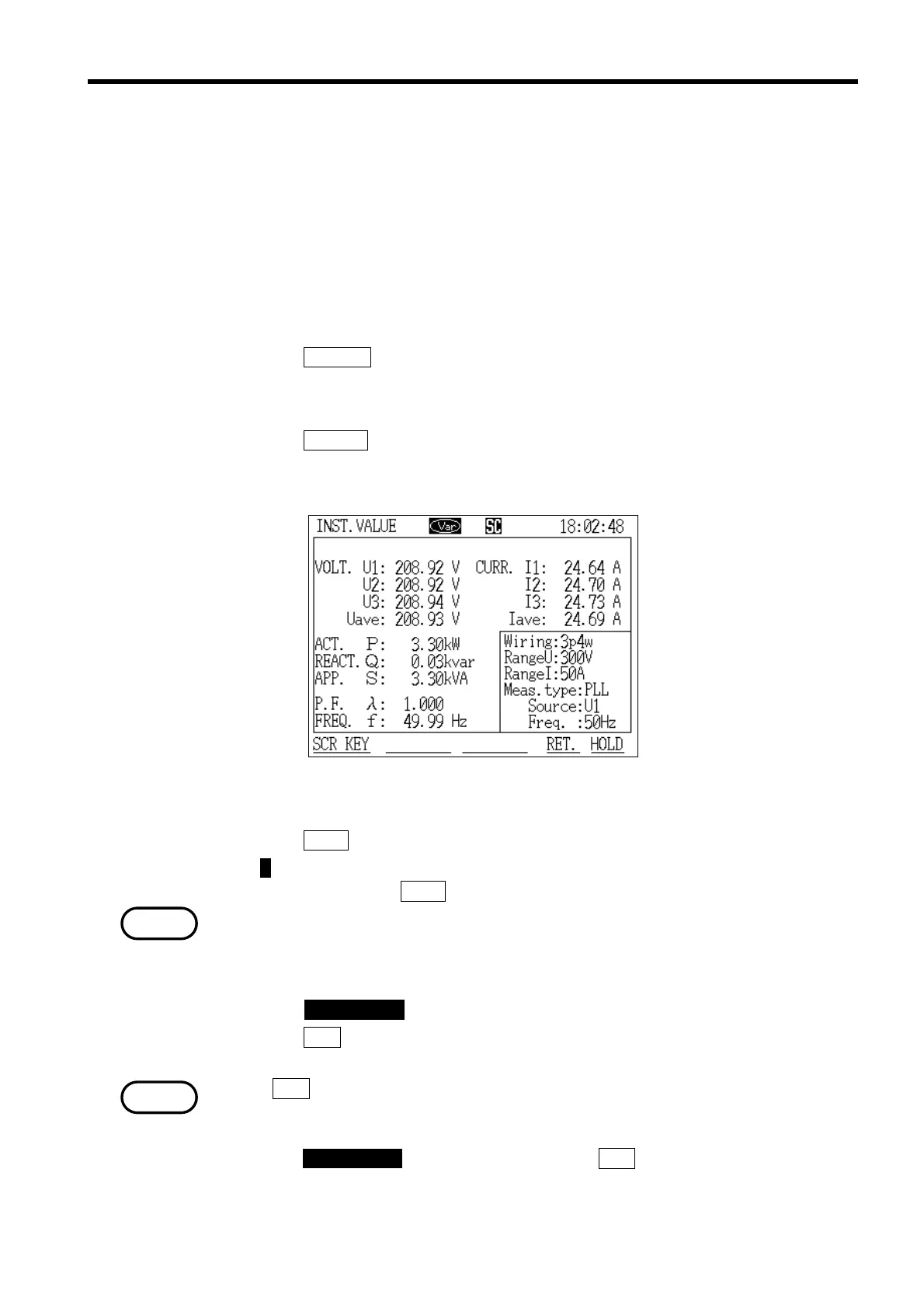

Instantaneous Value Measurement Screen
NOTE
NOTE
●Screen configuration in "Integrated Measurement" mode
"Normal Measurement" mode uses four screens:
・ Instantaneous values
・ Minimum/maximum values
・ Integration 1/2 (basic)
・ Integration 2/2 (detailed)
(1) In integrated measurement mode
1. Press the
SCR.KEY function key.
2. The "Display Selection" window is displayed.
3. Position the cursor at "Instantaneous value (INSTANT)."
4. Press the
DETERM function key.
5. The "Instantaneous Value" screen is displayed. Measurement of
instantaneous values starts automatically.
(2) Holding the display of measured values
1. Press the
HOLD function key.
2. The H mark is displayed on the status line, and the display is held. To release
the display, press the
HOLD key again.
Even if the displayed values are held, the power meter continues to record
measurements internally.
(3) Leaving "Integrated Measurement" mode
1. Press the DATA RESET key. (The measurement data is cleared.)
2. Press the
RET. function key.
3. The "Initial" screen is displayed.
If the
RET. key is pressed while integrated measurement is in progress or after
integrated measurement is complete, a message is displayed, and the display
does not return to the Initial Screen. Terminate integrated measurement and
press the DATA RESET key before pressing the RET. key. The message
disappears when any of these keys is pressed.
