5.5 Changing the Settings
────────────────────────────────────────────────────
5
.5.3 D/A Output Items

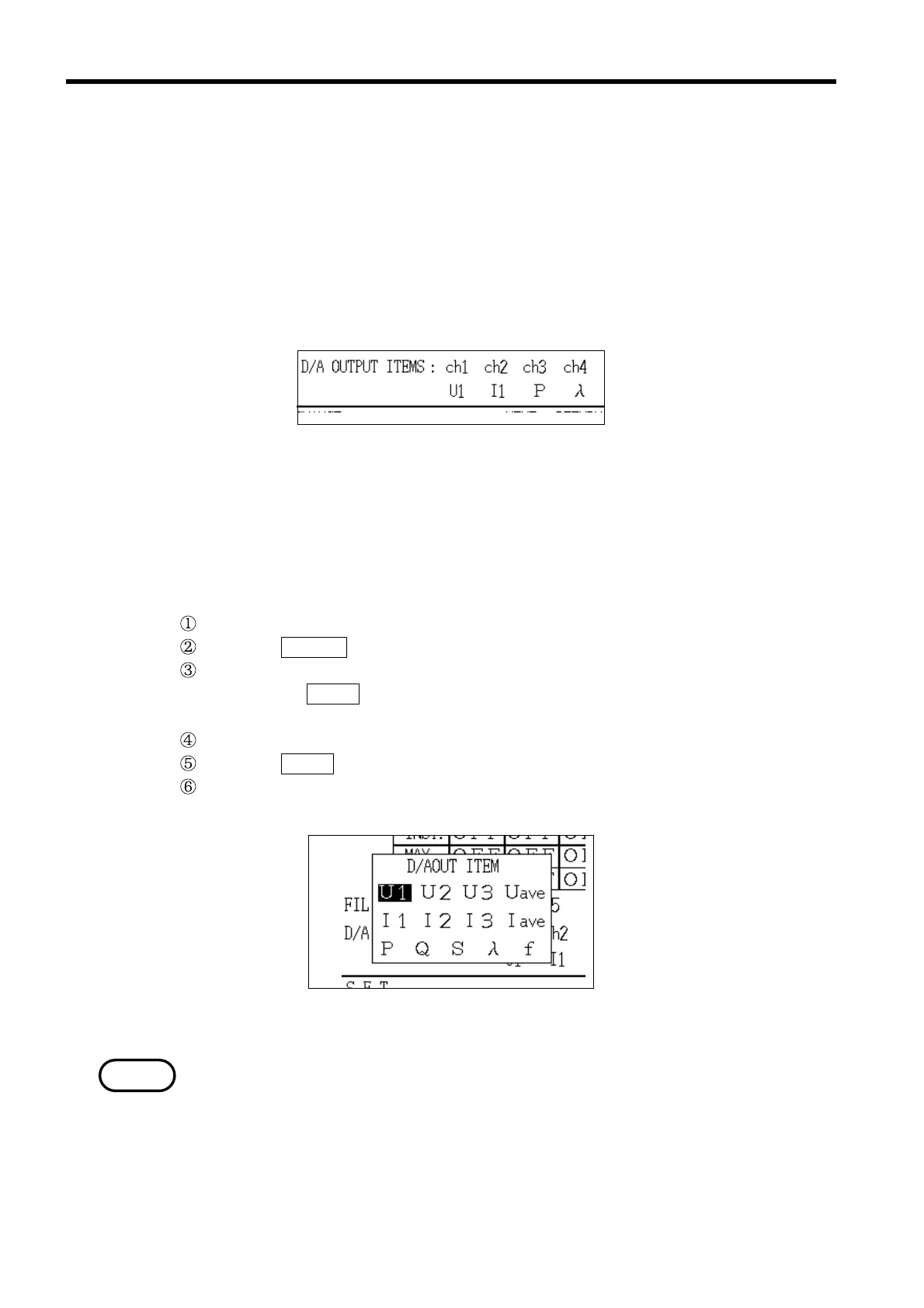

D/A Output Item Settings
D/A Output Items Setting Window
NOTE
Four channels of D/A output can be output simultaneously.
The output voltage is DC±5 V/f.s.
* ch1:U1, ch2:I1, ch3:P, ch4:λ
Setting choices: Voltage (U1, U2, U3,Uave), current (I1, I2, I3,Iave), active
power (P), reactive power (Q), apparent power (S), power factor
(λ),and frequency (f)
Example Setting the frequency (f) for output channel ch2:
Assume that the current settings are the factory settings: ch1:U1, ch2:I1,
ch3:P, ch4:(λ).
Position the cursor at "ch2" for "D/A output items".
Press the CHANGE function key.
The "Output Items" window appears.
Pressing the
CLOSE key returns the display to the "Normal Measurement
Settings" screen (page 1/2).
Position the cursor at "f" (frequency).
Press the ENTER function key.
The "Output Items" window closes, and "f" is set and is displayed in the "ch2"
field on the "Normal Measurement Settings" screen (page 1/2).
・Regarding the output response, during measurement at 50/60 Hz, the output
is updated every two cycles (50 Hz: approximately 40 ms; 60 Hz:
approximately 34 ms); during measurement at 400Hz, the output is updated
every 16 cycles (approximately 40ms).
・When using D/A output, the 9594 D/A OUTPUT (optional) must be installed
in the power meter.
