Hioki 3166 - Names and Functions of each Part

4
────────────────────────────────────────────────────
1.3 Names and Functions of Each Part
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11

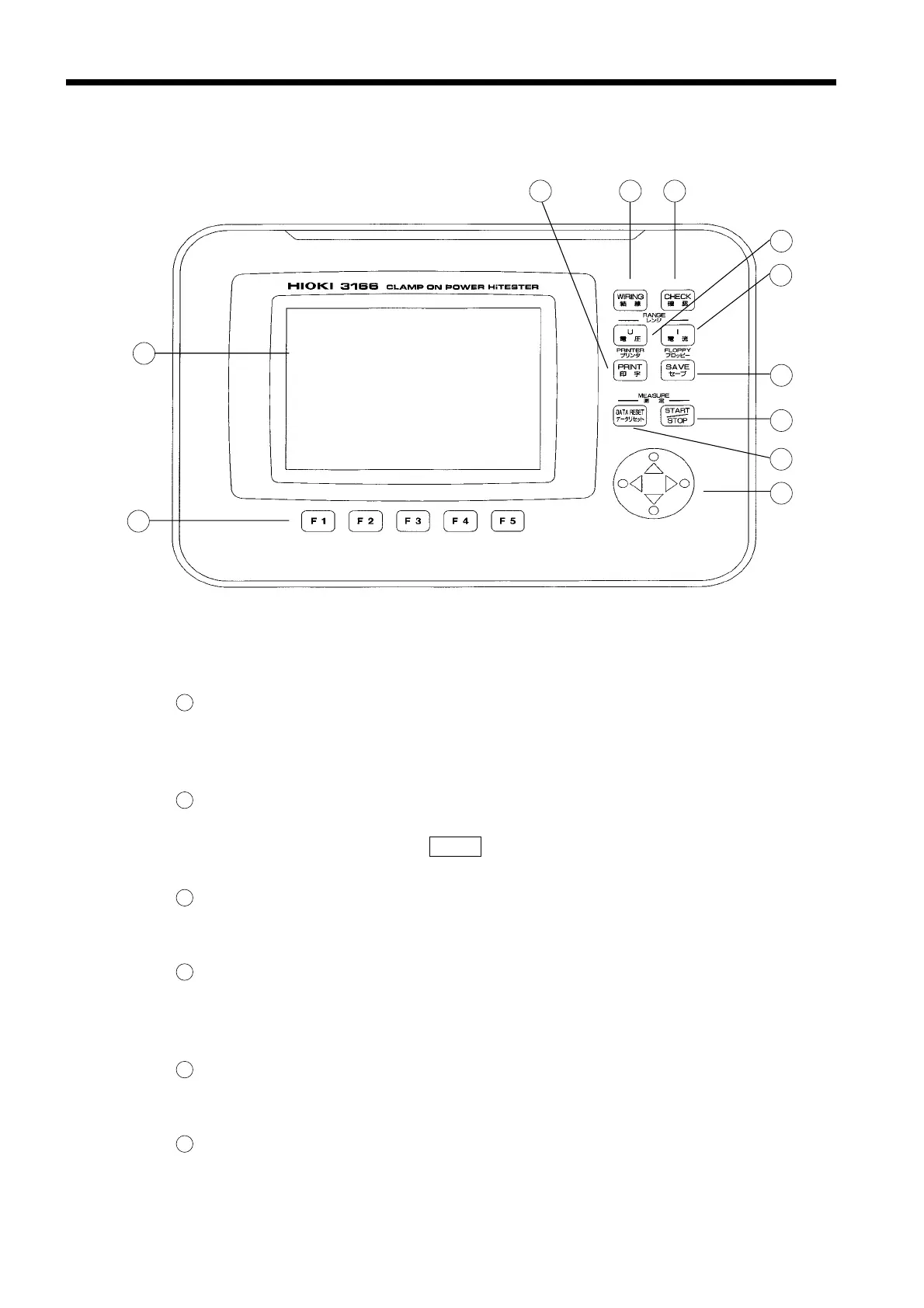

Front Panel
1
2
3
4
5
6
1
.3 Names and Functions of Each Part
Display
The 3166 is equipped with a 4.7-inch LCD display with backlight. The
language used on the display can be switched between Japanese and English.
Function keys (F1 to F5)
These keys are used to switch the display, select/change settings, etc. (These
keys are represented by the
mark mark in the text.)
Wiring key (WIRING)
This setting key is used to select the line to be tested.
Check key (CHECK)
This key is used to check for incorrect wiring, to check the contents of settings,
and to set the key lock.
Voltage range key (U)
This key is used to set the voltage measurement range.
Current range key (I)
This key is used to set the current measurement range.
