9.1 Connection With the Remote Control Jack
────────────────────────────────────────────────────
WARNIN
G
To avoid electrocution, turn off the power to all devices before pluggingor
unplugging any of the interface connectors.
CAUTIO
N
・To prevent damage to the product and sensor, never connect or disconnect
a sensor while the power is on.
・Use the optional 9440 CONNECTION CABLE for output.
Cable Connection
NOTE
9
.1 Connection With the Remote Control Jack
Reference The control jack is insulated from the voltage and current inputs.

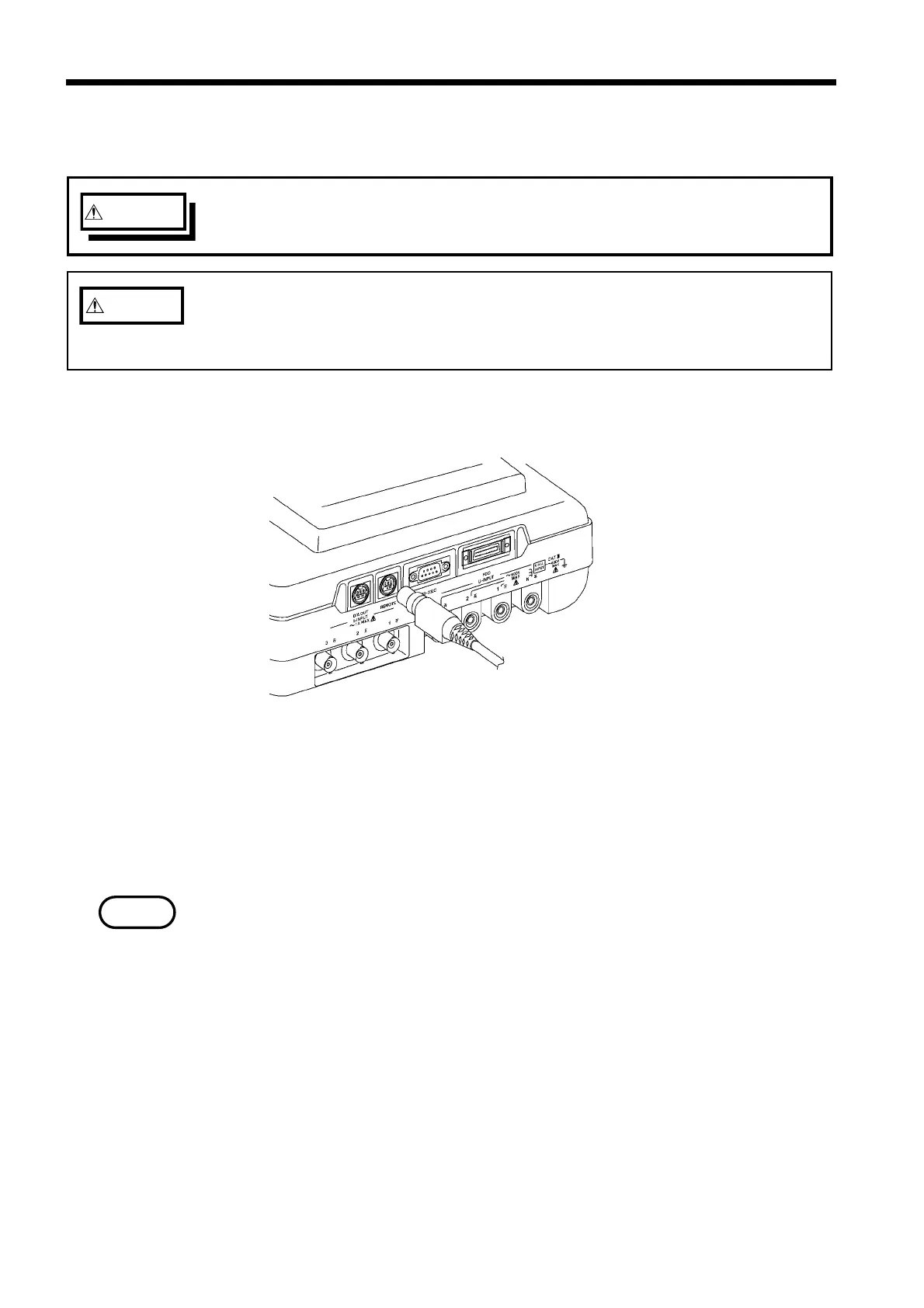

As shown in the diagram, align the special connection cable with the connector
guide notch on the remote control jack and then plug the cable in. (The
connector has a locking mechanism.)
When disconnecting the cable, grasp the plastic portion of the cable connector
and pull it out of the jack.
Plastic cable connectors are used. Attempting to forcibly push the connector
in without aligning it with the connector guide notch, or forcibly pulling it out
without releasing the lock will damage the connector.
