9.3 Functions That Support Remote Control
────────────────────────────────────────────────────
0 V (closed
)
5 V (open
)
Start
Stop
Integrated Measurement Start/Stop Control
5 V (open)
0 V (closed)
Data reset is executed
during this interval.
At least 300 ms
Data Reset Control
9
.3 Functions That Support Remote Control
The following four functions support remote control. These functions can be
controlled through the remote control jack in exactly the same manner as if
the corresponding keys on the control panel were pressed.
(1) Integrated measurement start/stop
This remote control function starts/stops the integration operation in
"Integrated Measurement" mode, and starts the measurement operation in
"Demand Measurement" mode.

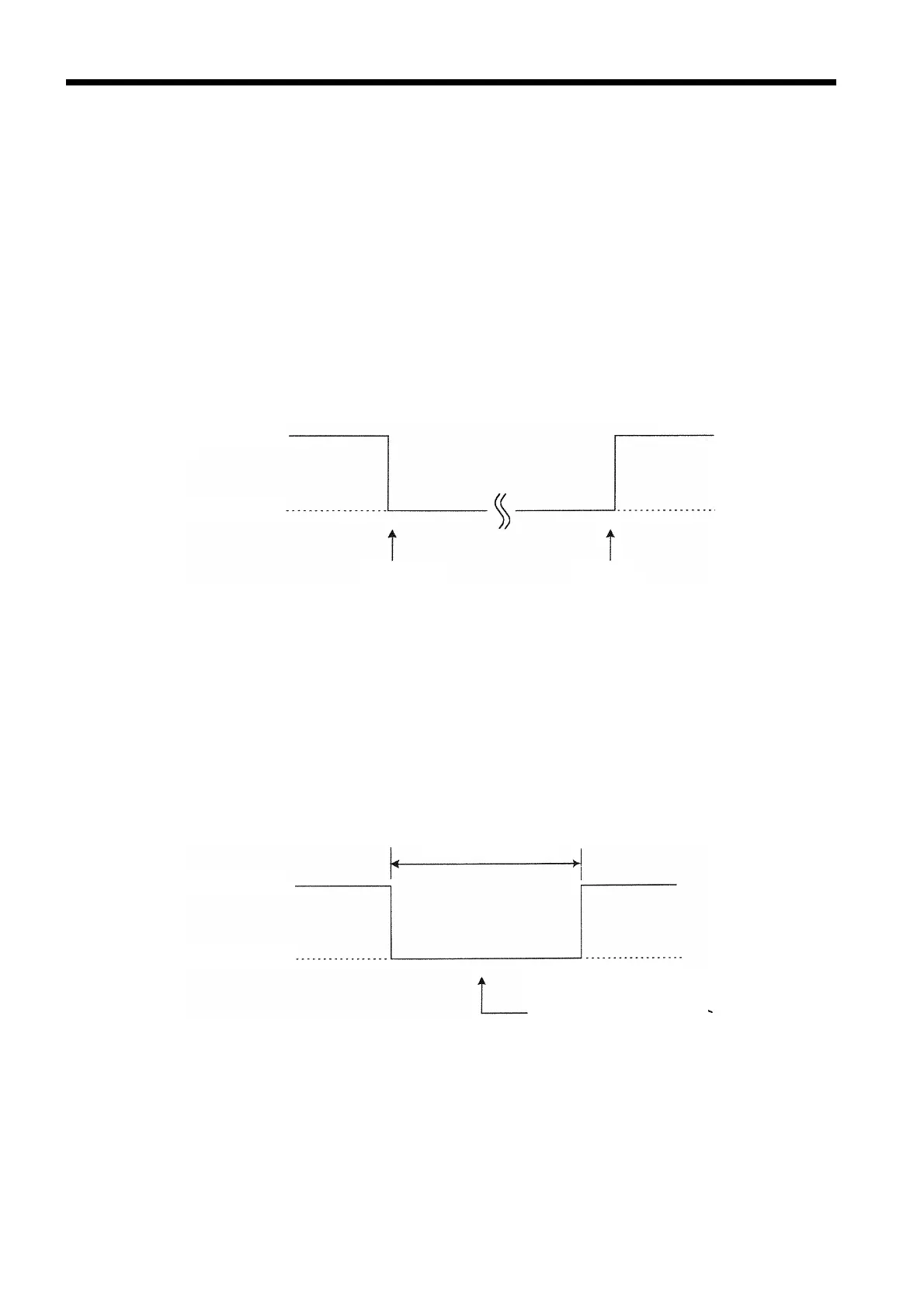

The operation of the control signal is illustrated below.
(2) Data reset
This remote control function clears the integration data and the
minimum/maximum value data.
The operation of the control signal is illustrated below.
