Hioki 3166 - Displaying Minimum;Maximum Values

51
────────────────────────────────────────────────────
5.4 Taking Measurements
────────────────────────────────────────────────────
5
.4.2 Displaying Minimum/Maximum Values
NOTE

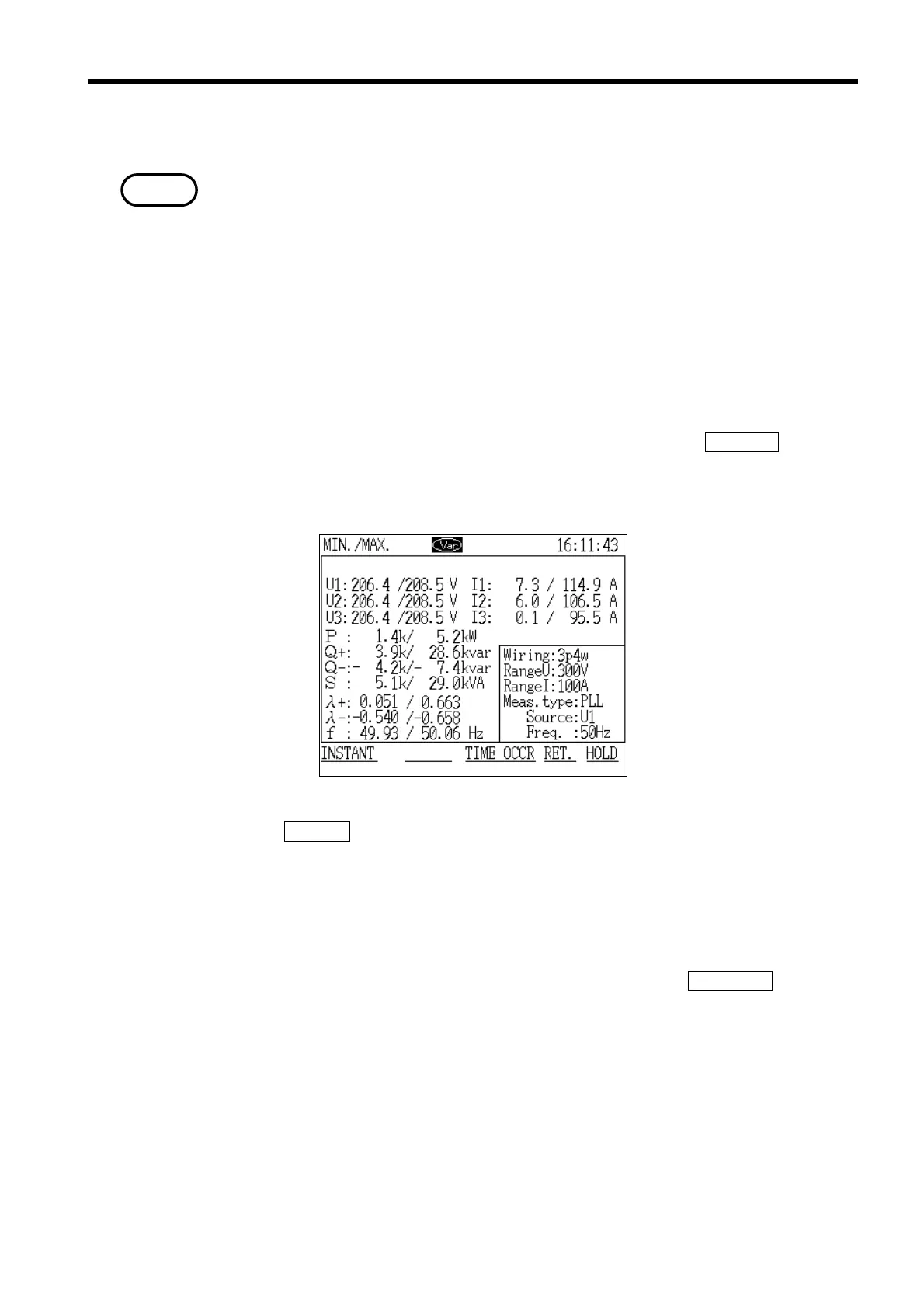

Minimum/Maximum Screen
On minimum/maximum values
This power meter uses two cycles as one sample and takes measurements by
continuously performing various calculations on the data (without losing the
waveform). This data is displayed intermittently, depending on the display
update rate, as the instantaneous values. In contrast, the minimum and
maximum values are displayed by finding the minimum and maximum values
in all of the sample values that are being continuously measured.
Therefore, even transient input waveforms generated by a power spike, for
example, will be correctly detected.
1. With the "Instantaneous Value" screen displayed, press the
MIN./MAX. function
key.
2. The "Minimum/Maximum" screen is displayed.
3. If the
INSTANT function key is pressed, the display returns to the
"Instantaneous Value" screen.
●Displaying the time at which minimum and maximum values were
generated
1. With the minimum/maximum screen displayed, press the TIME OCCR function
key.
2. The "Generation Time" window is displayed.
