Hioki 3166 - D;A Output Items; Integrated Output Rate

84
────────────────────────────────────────────────────
6.5 Changing Settings
────────────────────────────────────────────────────
6

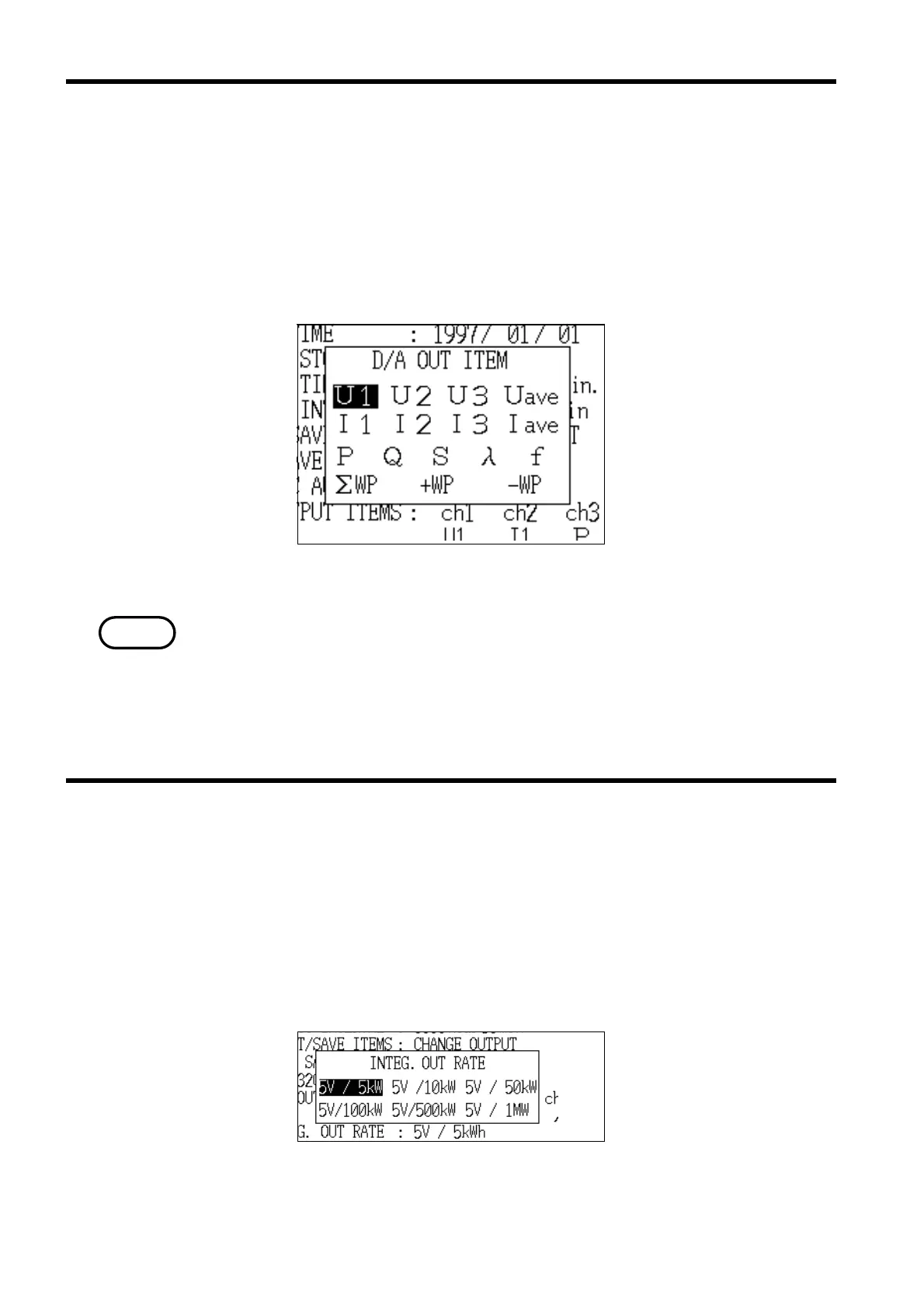

.5.10 D/A Output Items
D/A Output Item Settings
NOTE
6
.5.11 Integrated Output Rate
Integrated Output Rate Setting
Four channels of D/A output can be output simultaneously.
The output voltage is DC±5 V/f.s.
* ch1:U1, ch2:I1, ch3:P, ch4:λ
Setting choices: Voltage (U1, U2, U3, Uave), current (I1, I2, I3, Iave), active
power (P), reactive power (Q), apparent power (S), power
factor (λ), frequency (f), and active power integration (+WP,
-WP, ΣWP)
・For details on the specific method for setting the D/A output items, refer to
section 5.5.3, "D/A Output Items."
・When using D/A output, the 9594 D/A OUTPUT (optional) must be installed
in the power meter.
・The output response depends on the display update rate.
・If fast response is required, use "Normal Measurement" mode.
This item sets the output rate when using D/A output of integrated values
(active power integration).
Output is generated by ±5 V DC versus the full scale for the power
integration that was set.
Options: 5 V/5 kW, 5 V/10 kW, 5 V/50 kW, 5 V/100 kW, 5 V/500 kW,
5 V/1 MW
* 5 V/5 kW
