7.3 Disposing of the Power Meter and the Packing
Materials
This power meter uses a lithium battery for memory backup. Remove the
lithium battery before disposing of the power meter, and follow the prescribed
method when disposing of the power meter.
(1) Tools required for disassembly
The following tools are required in order to disassemble this unit:
・One philips screwdriver
・One pair of wire cutters
(2) Disassembly

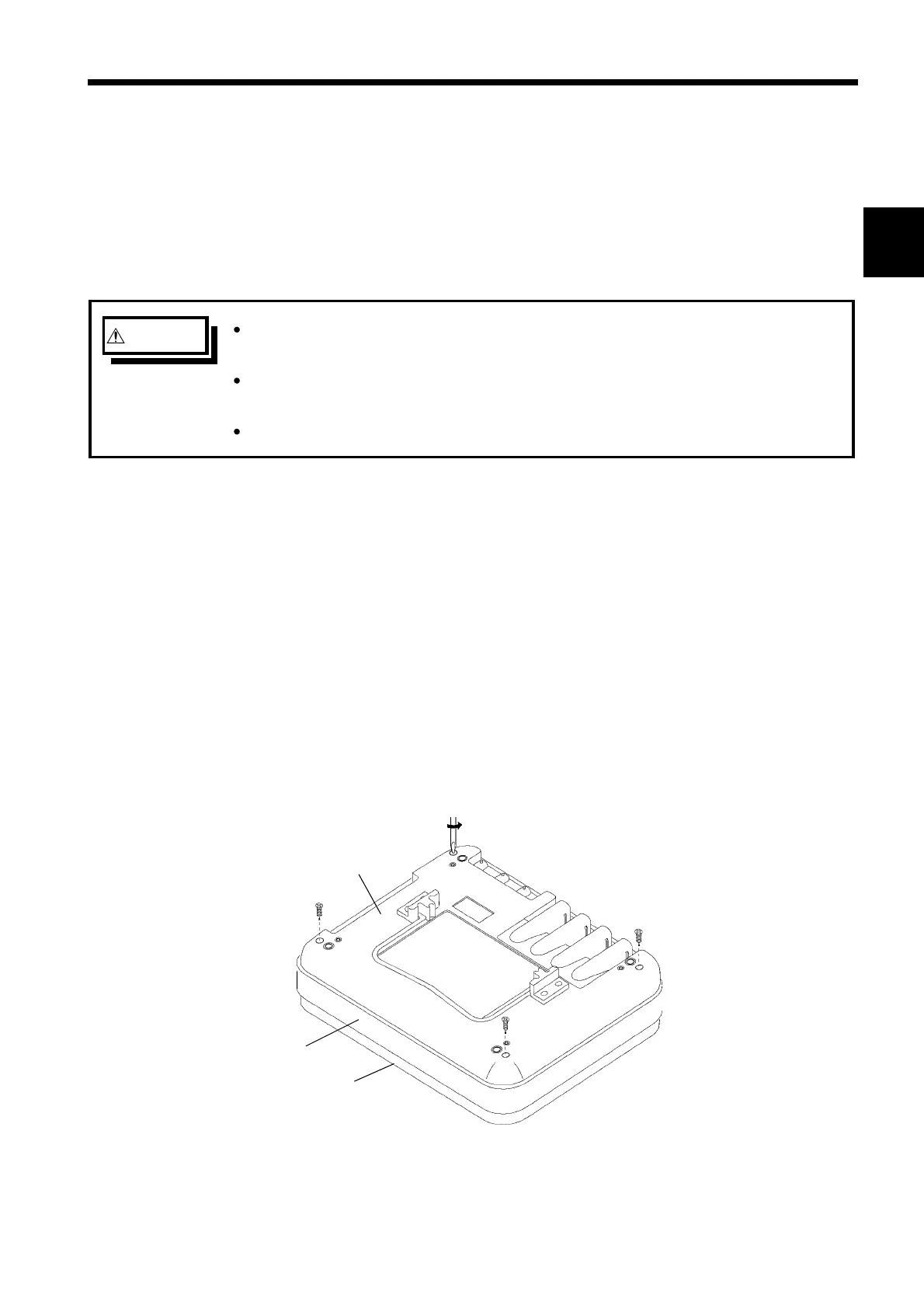

1. As shown in the diagram, remove the four screws that hold the back cover of
the power meter in place.
2. Remove the front panel and the protector.
3. Turn over the first board (on which the LCD is mounted), revealing the
lithium battery. Cut the two leads with the wire cutter, and remove the
lithium battery.
