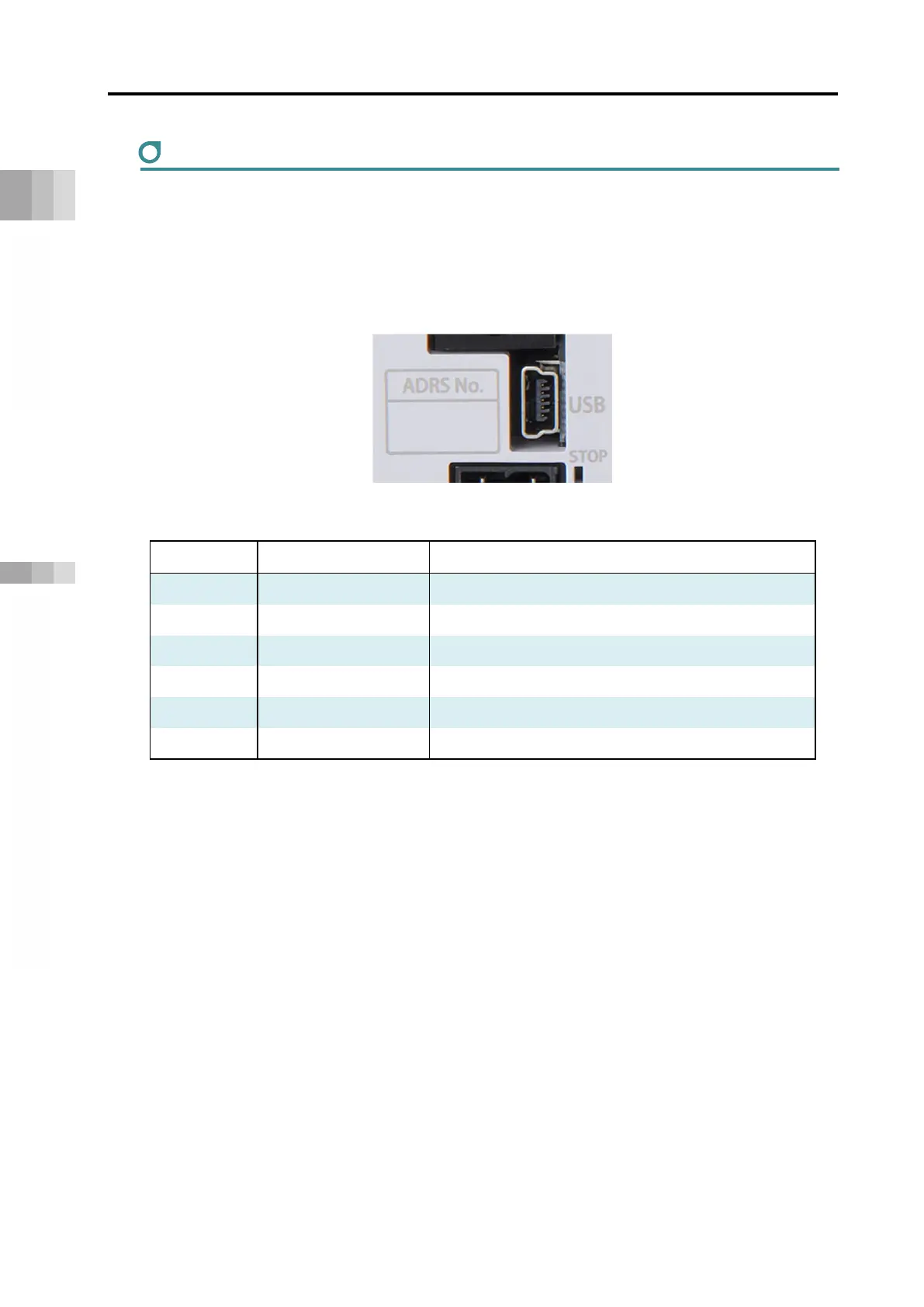

3.4 Part Names/Functions and External Dimensions
A3-11
ME0384-4A
USB connector
It is a connector to be connected to the PC software or gateway parameter configuration tool.
For use, it is necessary to install the USB connection driver for RCON.
For how to install the driver, refer to “Startup Section, Chapter 4, 4.1 [Installing USB Connection
Driver for RCON] (page B4-14)”.
Connector name: 51387-0530 (Molex)
Pin No. Signal name Description
1 VBUS USB power
2 D- USB signal line -
3 D+ USB signal line +
4 NC Not connected
5 GND 0 V
Shell GND 0 V
