Chapter 3 Absolute Reset
3.1 Absolute Reset
Overview
Incremental specification actuators can be used as absolute specification models by adding a
simple absolute unit to the driver unit.
(Note)
After absolute reset, home return motion is not required even if turning the control power supply
OFF and then ON again.
Note: The driver units applicable for the simple absolute unit are as follows:
• Stepper motor specification (RCON-PC)
• 24V AC servo motor specification (RCON-AC)

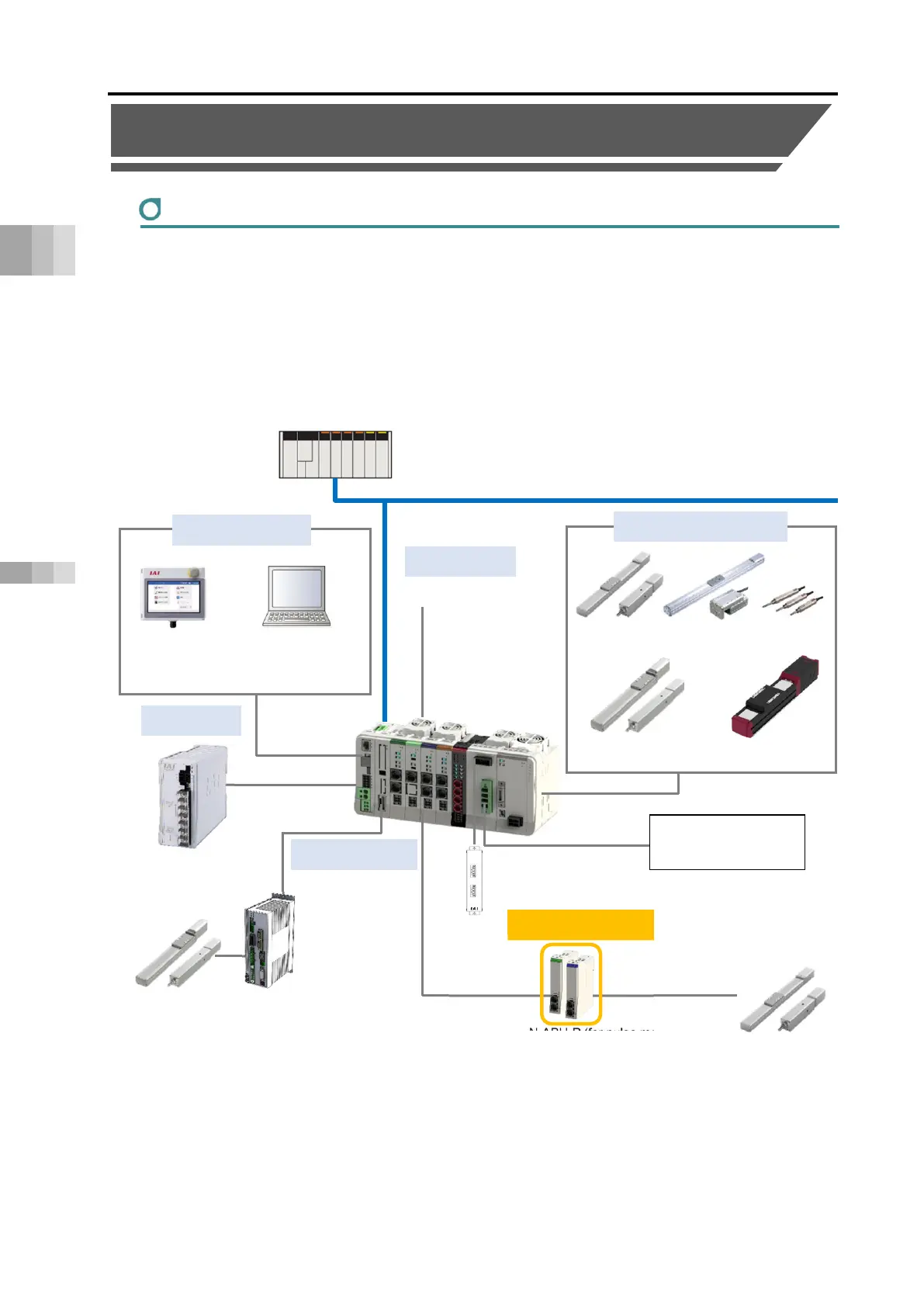

Teaching tool
Model:
TB-02
TB-03
Model:
RCM-101-MW
RCM-101-USB
Power supply unit
Model: PSA-24
RCS/ISB etc.
SCON-CB
(RCON connection type)
SCON Expansion unit
Model: RCON-EXT
Field network
Fan unit
Model: RCON
-FU
RCON-FUH
RCP RCD
RCA
･
RCL
Simple Absolute Unit
RCP/RCA
Model: RCON
-ABU-P (for pulse motor)
Model: RCON
-ABU-A (for AC servo-motor)
PLC
Connectable actuators
ELECYLINDER
RCS/ISB etc.
(Note 1)
+24V, 0V
Regenerative Resistor
Unit
(Note 2)
Model:
RESU-2/RESUD-2
3-Phase /
Single-Phase 200V AC
