6.1 Overview
A6-1
ME0384-4A
Specifications Section
Chapter 6 SCON Extension Units
6.1 Overview
SCON extension unit is a unit to connect SCON-CB Controller (RCON connection type) to R
Unit.
Using the SCON extension unit and SCON-CB Controller should enable to connect actuators
(*)
that are not capable to connect with the 200V driver unit.

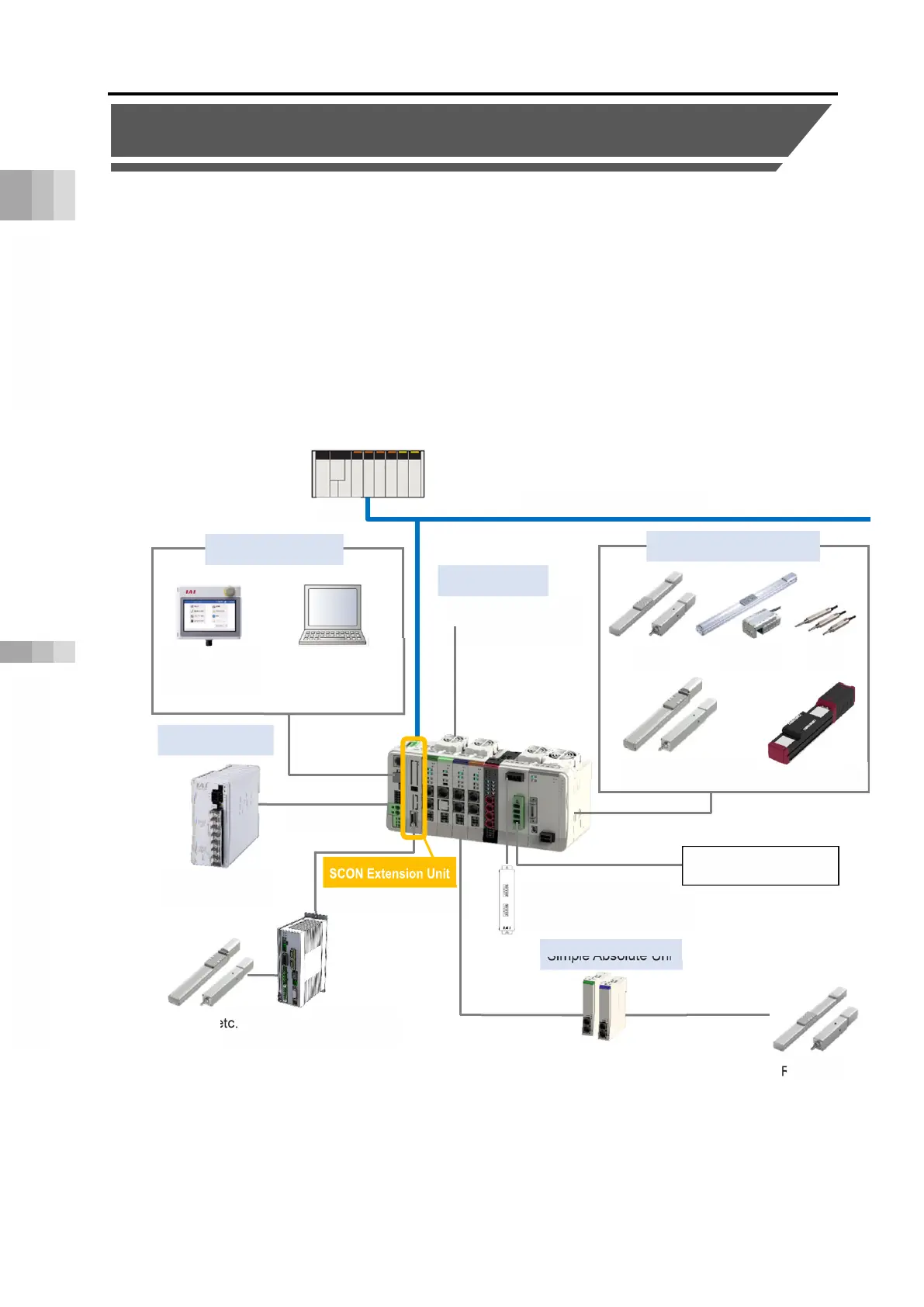

*: Refer to Note 1 in the figure below
As seen from the front, the gateway unit is placed to the left end of the RCON system, while the
expansion unit is located on the right side of the gateway unit during use.
Teaching tool
Model:
TB-02
TB-03
Model:
RCM-101-MW
RCM-101-USB
Power supply unit
Model: PSA-24
RCS/ISB, etc.
SCON-CB
(RCON Connection Type)
Model : RCON-EXT
Field network
Fan unit
Model
: CON-FU
RCON-FUH
RCP RCD
RCA
･
RCL
Simple Absolute Unit
RCP/RCA
PLC
Connectable actuators
ELECYLINDER
RCS/ISB, etc.
(Note 1)
+24V、
0V
Regenerative Resistor Unit
(Note 2)
Model:RESU
-2/RESUD-2
3-Phase / Single-Phase
AC200V
Model: RCON
-ABU-P (for stepper motor)
Model: RCON
-ABU-A (for AC servo motor)
