3.9 Gateway Parameter Configuration Tool
A3-153
ME0384-4A
3.9 Gateway Parameter Configuration Tool
Use the gateway parameter configuration tool to select the operation mode of the RCON system
and to set various functions. The screen design differs slightly depending on the OS of the PC.
Tool startup

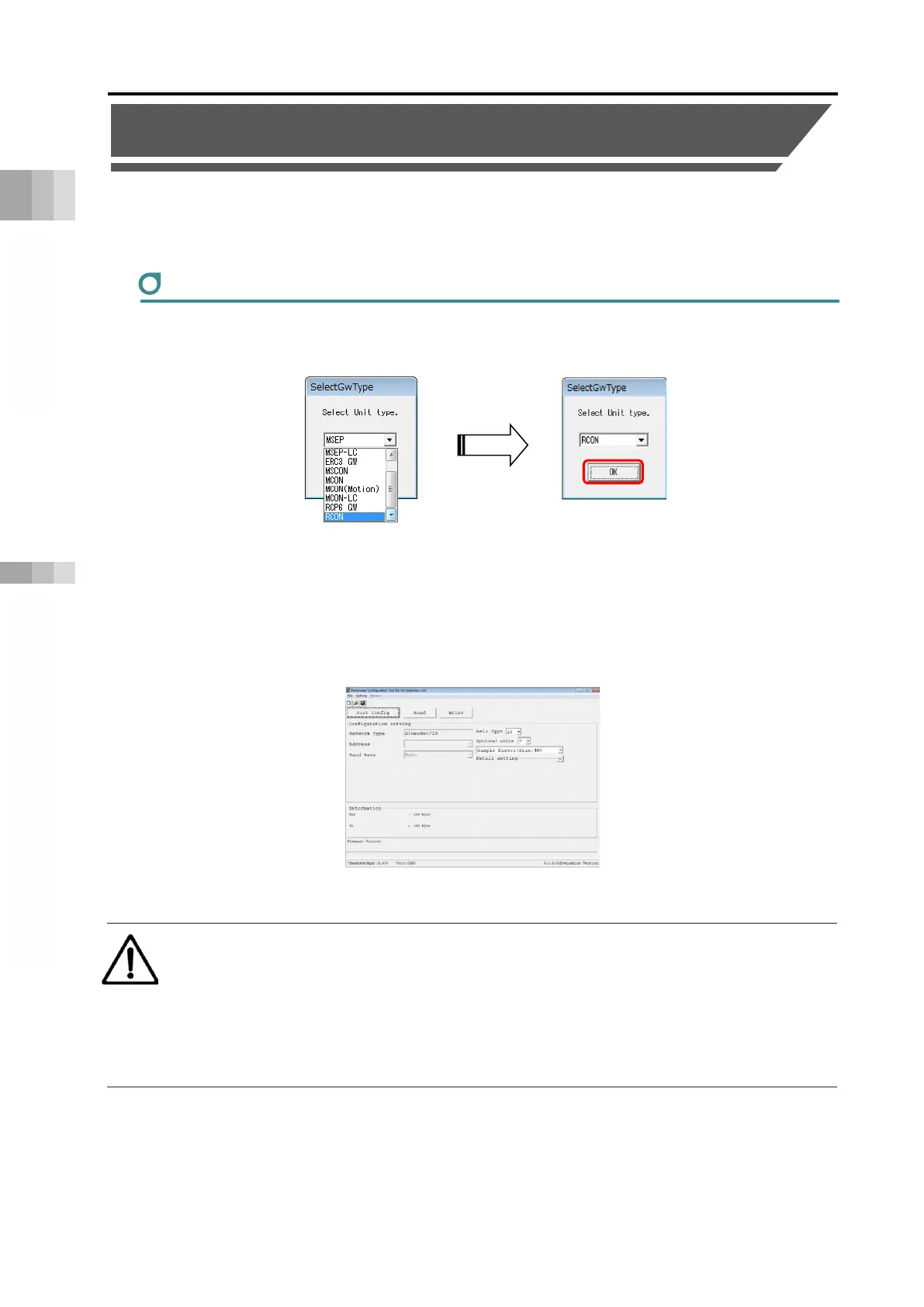

After turning on the RCON system, starting the gateway parameter configuration tool will
display the following screen. Select "RCON" and press OK.
The main screen will be displayed. Even if the gateway unit cannot be detected, the main
screen will be displayed. When you press "Import" on this screen, parameters will be
imported from the detected gateway unit.
Press the "Transfer" button to transfer the parameters. However, note that they cannot be
transferred if the address or communication speed is not selected.
Main screen (initial state)
Caution
● If the actual number of connected axes of the RCON system does not match the
number of axes set and transferred in the gateway parameter configuration tool, the PC
software cannot be connected.
● Set and transfer the gateway parameters suitably according to the actual unit
configuration and the number of connected axes.
