IAI Rcon - Parameter Details of ELECYLINDER

6.1 Parameter
B6-54
ME0384-4A
Startup Section
Parameter Details of ELECYLINDER
[Operation range adjustment (Parameter No. 1)]
No. Name Unit Input range Default initial value setting
1
Operation range
adjustment
mm 0 to 9,999.69 0
● The ELECYLINDER operation range can be adjusted to suit your system.
● The minimum setting unit is 0.01mm.
● Set to your desired stroke length.
The controller automatically adds 0.30mm and controls/monitors the
operation range.
Set the operating stroke between 0 and 80mm
by changing [Parameter No.1] to [80.00mm].
Caution
● Set within the ELECYLINDER movable range.
Setting to a value that exceeds the maximum stroke will result in collision with the
forward side mechanical stopper
● This may damage the ELECYLINDER, workpiece or peripheral devices.

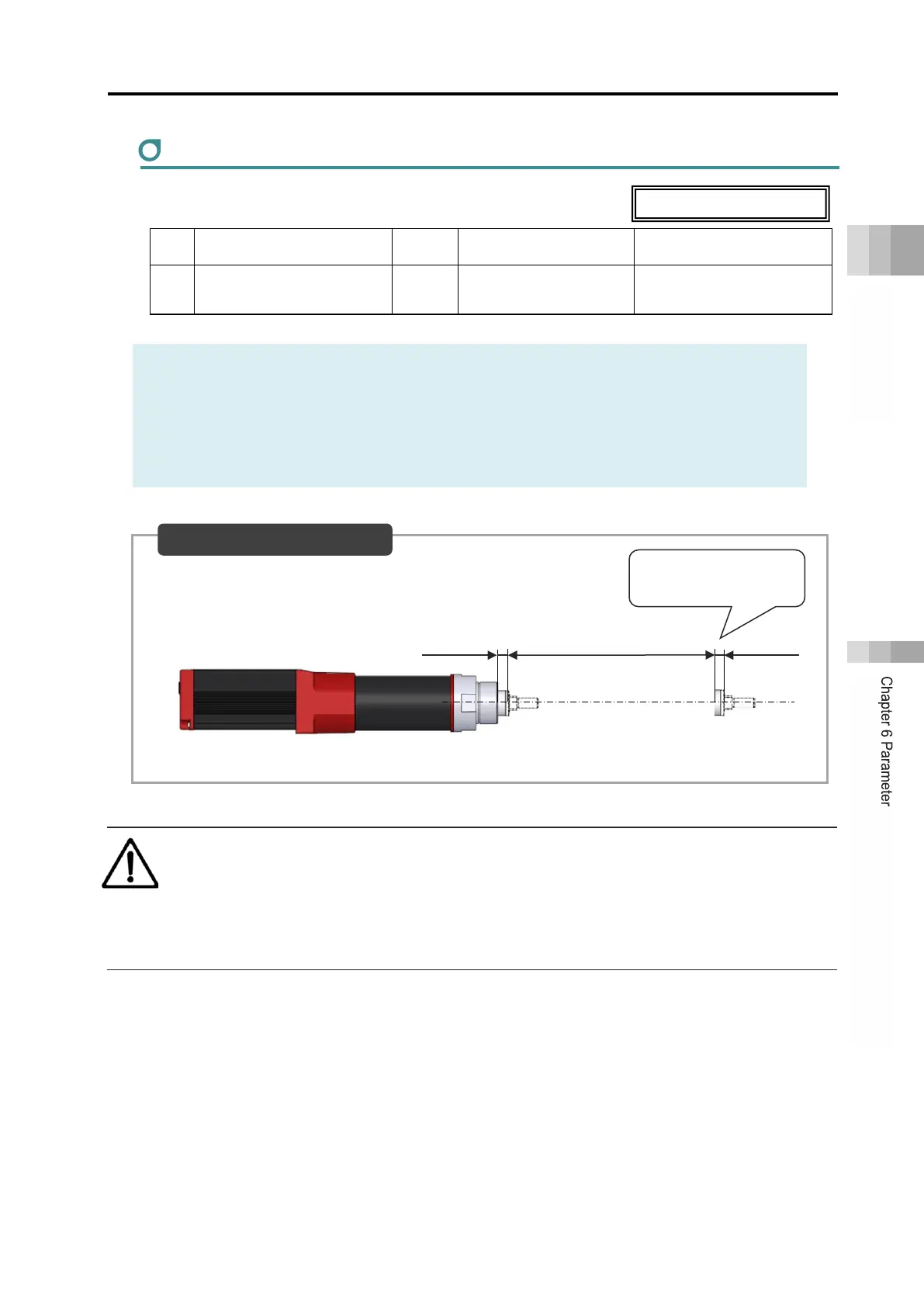

Configuration example
0.30mm
0.30mm
80.00mm (Stroke to be used)
Parameter No.1:
80.00mm
Elecylinder only
