IAI Rcon - Jog Travel

5.1 Operation Confirmation with PC Software
B5-12
ME0384-4A
Startup Section
Jog travel

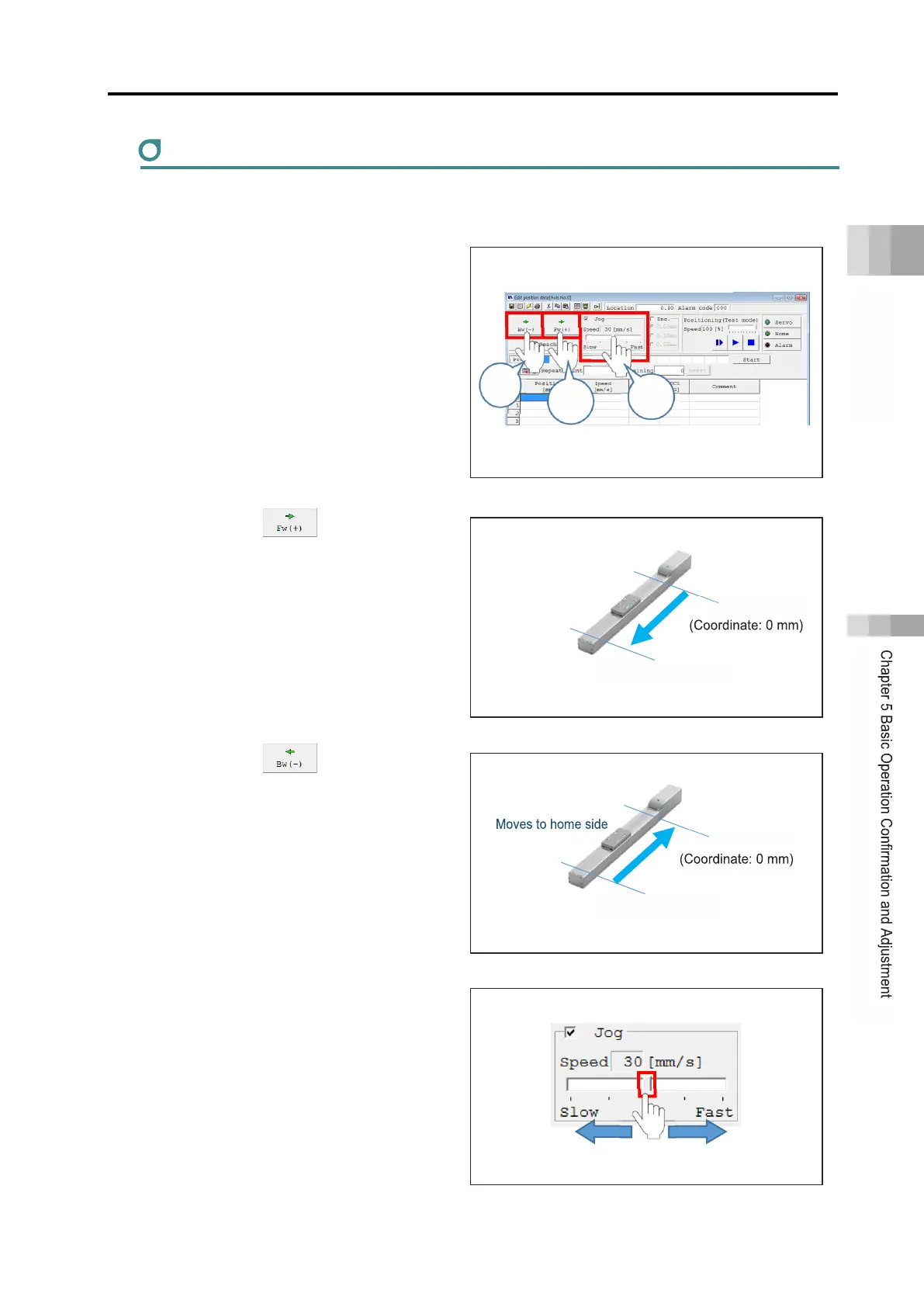

Activates the JOG operation of the actuator.
(1) Clicking will move the
actuator to the stroke end side.
(2) Clicking will move the
actuator to the home direction.
(3) The speed can be adjusted by
moving the red frame section
below to the left (slow) or right
(fast).
1
"Edit position data" screen
(2)
(1)
(3)
Home
Moves to stroke
end side
Stroke end
Home
Stroke end
