IAI Rcon - Control Power Connector

3.4 Part Names/Functions and External Dimensions
A3-14
ME0384-4A
Chapter 3 Gateway Unit
Specifications Section

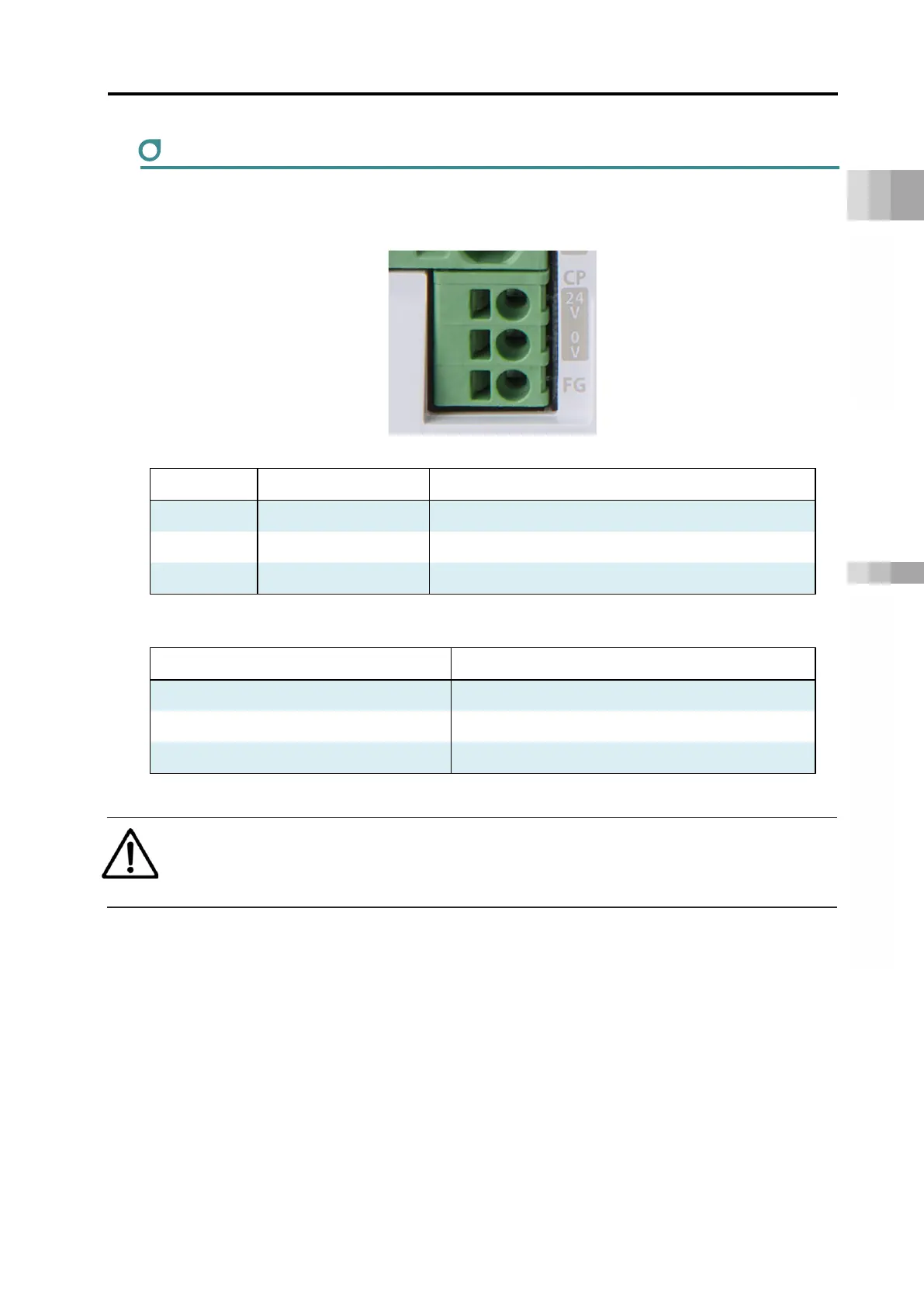

Control power connector
Control power +24 V and FG connector. Supplies power for the control power of all units linked
to the gateway unit and for the actuator brake.
Pin No. Signal name Description
1 FG Frame ground
2 GND 0 V
3 CP Control power +24 V input
Control power connector compatible wire
Item Specifications
Compatible wire AWG20 ~ 12 (Copper Wire)
Strip length 10.0mm
Rated Temperature on Isolation Coating 60degC or more
Caution
● Select a wire with thickness that tolerates the rated current total value obtained in "2.3
Specifications/Power supply capacity (page A2-10)".
