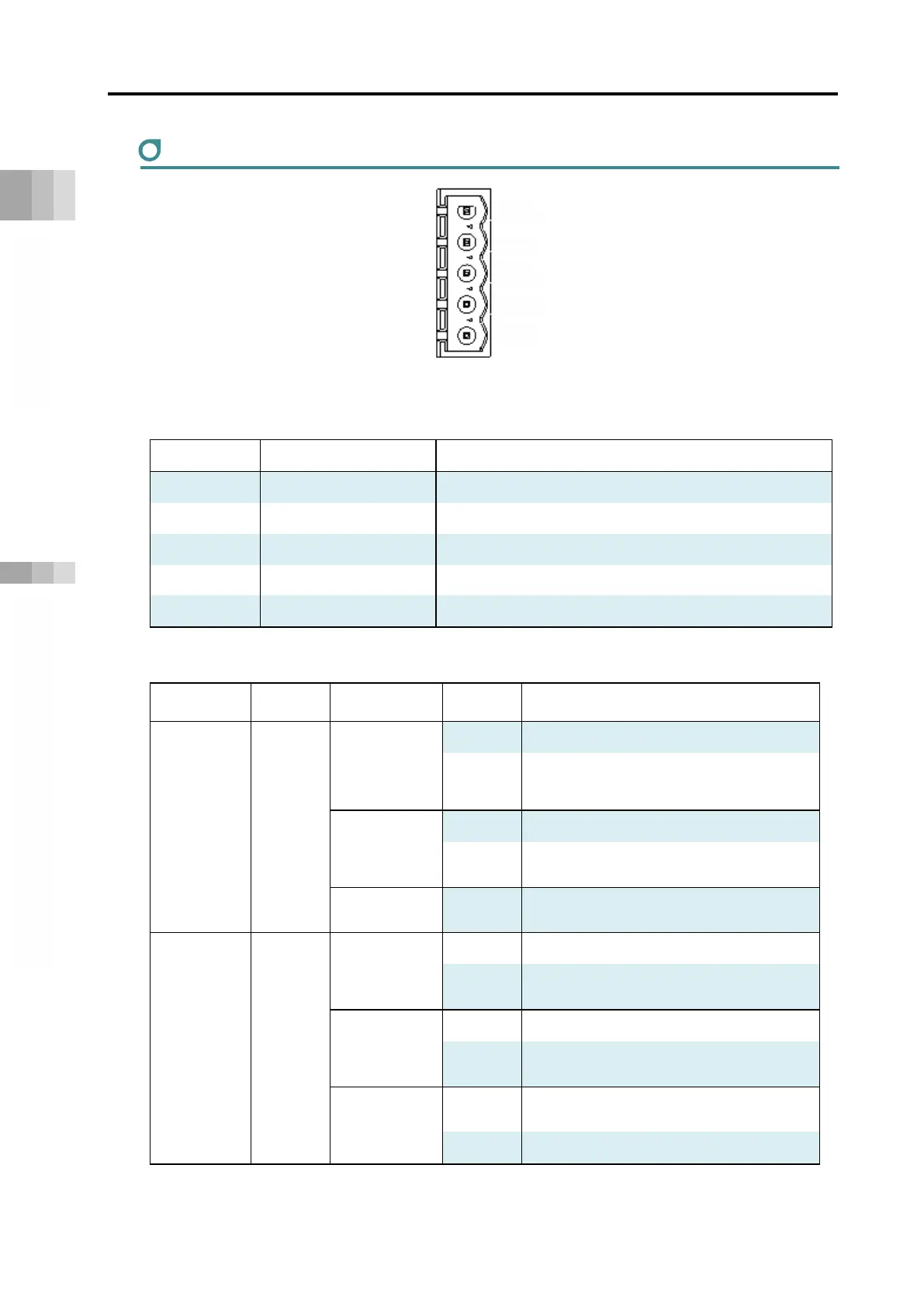

DeviceNet
Cable connector name: MSTB2.5/5-STF-5.08 AU M (Phoenix Contact)
Pin No. Pin color scheme Description
1 Black Power supply cable - side
2 Blue Signal data Low side
3 － Shield
4 White Signal data High side
5 Red Power supply cable + side
LED display
Name
Panel
notation
Display
color
Status Description
STATUS 0 MS
Green
Light ON Normal operation
Blinking
(1 Hz)
No configuration information,
incomplete information, or device test
operation required
Orange
Light ON Non-recoverable fault
Blinking
(1 Hz)
Recoverable fault
Green/orange
Alternate
blinking
Self-diagnosis
STATUS 1 NS
Green
Light ON Online, connection established
Blinking
(1 Hz)
Online, connection not established
Orange
Light ON Fatal error
Blinking
(1 Hz)
Connection timeout
Orange/green
Alternate
blinking
Self-diagnosis
Light OFF Offline
5
4
3
2
1

IAI Rcon Specifications

General

Brand	IAI
Model	Rcon
Category	Controller
Language	English
