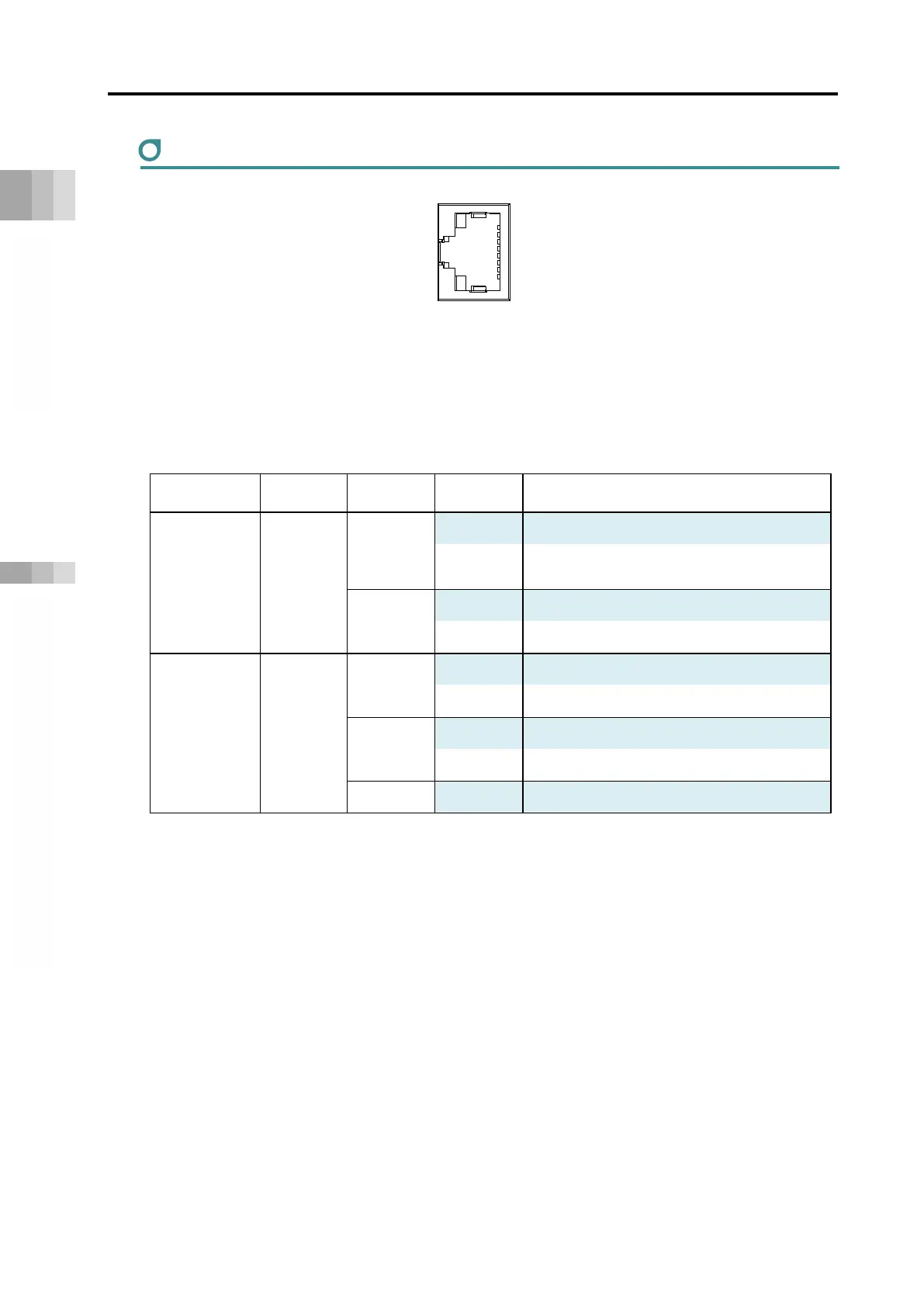

3.5 Field Network General Specifications
A3-23
ME0384-4A
EtherNet/IP
Cable/connector specifications: Ethernet ANSI/TIA/EIA-568-B Category 5 or higher, shielded
8P8C modular plug (RJ45)
* It is to be prepared by the customer.
LED display
Name
Status Description
STATUS 0 MS
Green
Light ON Normal operation
Blinking
No configuration information,
or scanner in idle status
Orange
Light ON Non-recoverable fault
Blinking Recoverable fault
STATUS 1 NS
Green
Light ON Online, connection established
Blinking Online, connection not established
Orange
Light ON Fatal error, IP address duplication error
Blinking Connection timeout
Light OFF No IP address
