IAI Rcon User Manual

2.2. Wiring
B2-7
ME0384-4A
Startup Section
Chapter 2 Mounting and Wiring
2.2. Wiring
Controller wiring

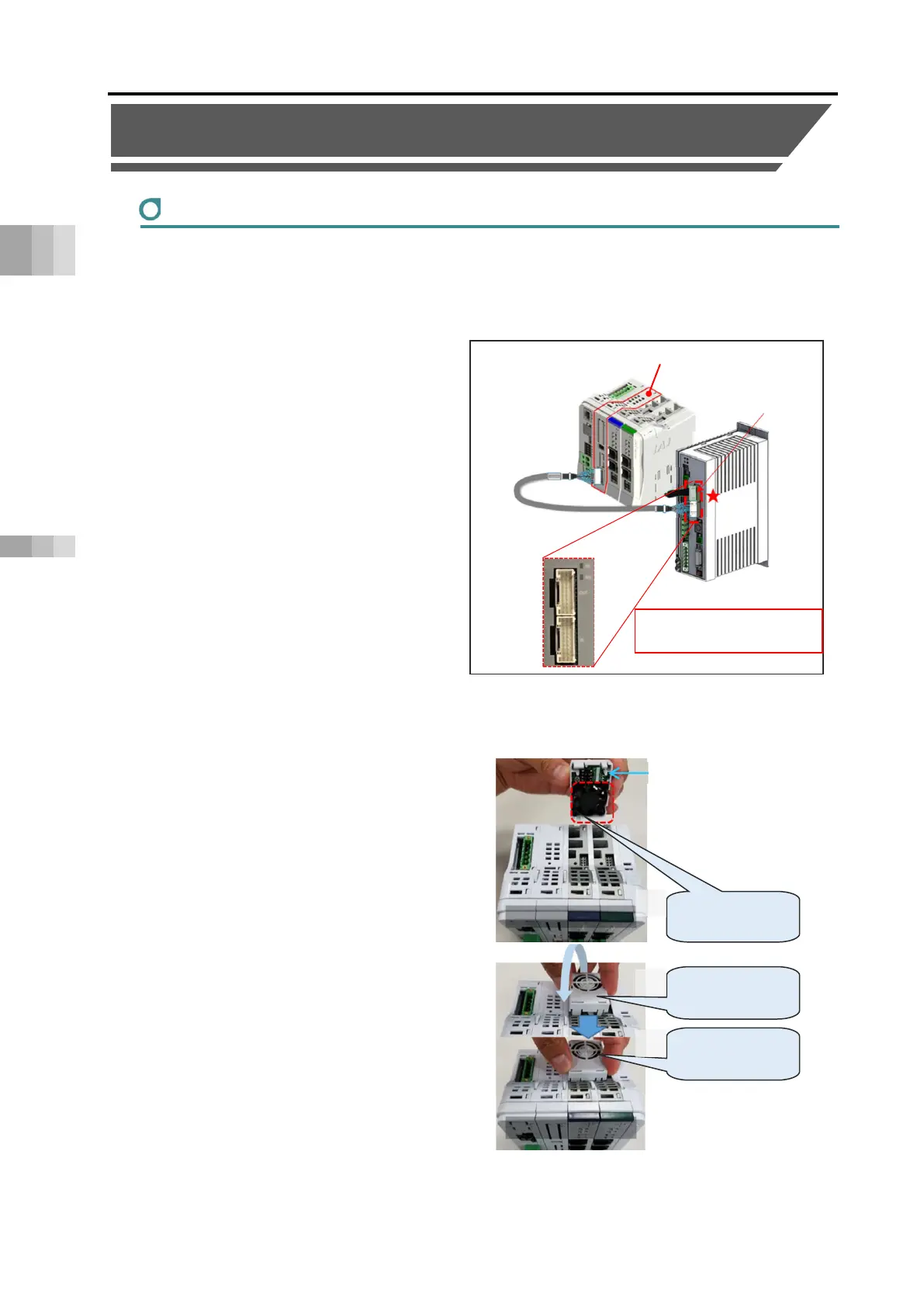

[Connection between SCON and expansion unit]
If including an expansion unit in the RCON system specification, be sure to connect with the
following procedure.
Connect the cable to the expansion unit.
Insert the other end of the cable end
connected to the expansion unit to the
SCON "IN" side of the RCON cable
connector.
Insert the terminal connector (terminal
resistor) into the RCON connector on
the SCON "OUT" side.
For the wiring of the SCON main body, refer to "SCON-CB/CGB controller manual (ME0340)".
[When installing optional fan unit]
(1) Adjust the installation orientation of the
RCON system and fan unit.
Hook the claw of the fan unit to the driver
unit as shown in the figure on the right.
(2) Pull down the fan unit to the front of the
RCON system.
(3)
Press the fan unit from the top and snap in.
1
Expansion
unit
Terminal connector
(Terminal resistor)
SCON_RC
specification
Connection cable
CB
-RE-CTL***
RCON
connector
"OUT"
"IN"
★ Terminal connector (terminal
resistor) is required on the final axis.
1
2
3
2
3
Fan unit
RCON system front
Hook the claw of the fan
unit to the driver unit
Pull down the fan unit
to the front
(1)
(2)
RCON system front
Pull down the fan unit
Press down and snap in
(3)
