IAI Rcon User Manual

4.2 Master Side Setting
B4-29
ME0384-4A
Startup Section
Chapter 4 Network Configuration
4.2 Master Side Setting
PLC setting: CC-Link (for PiC of PLC wiring / programming)
Items to prepare
PLC / CC-Link master unit / PC / GX Works2 / communication cable

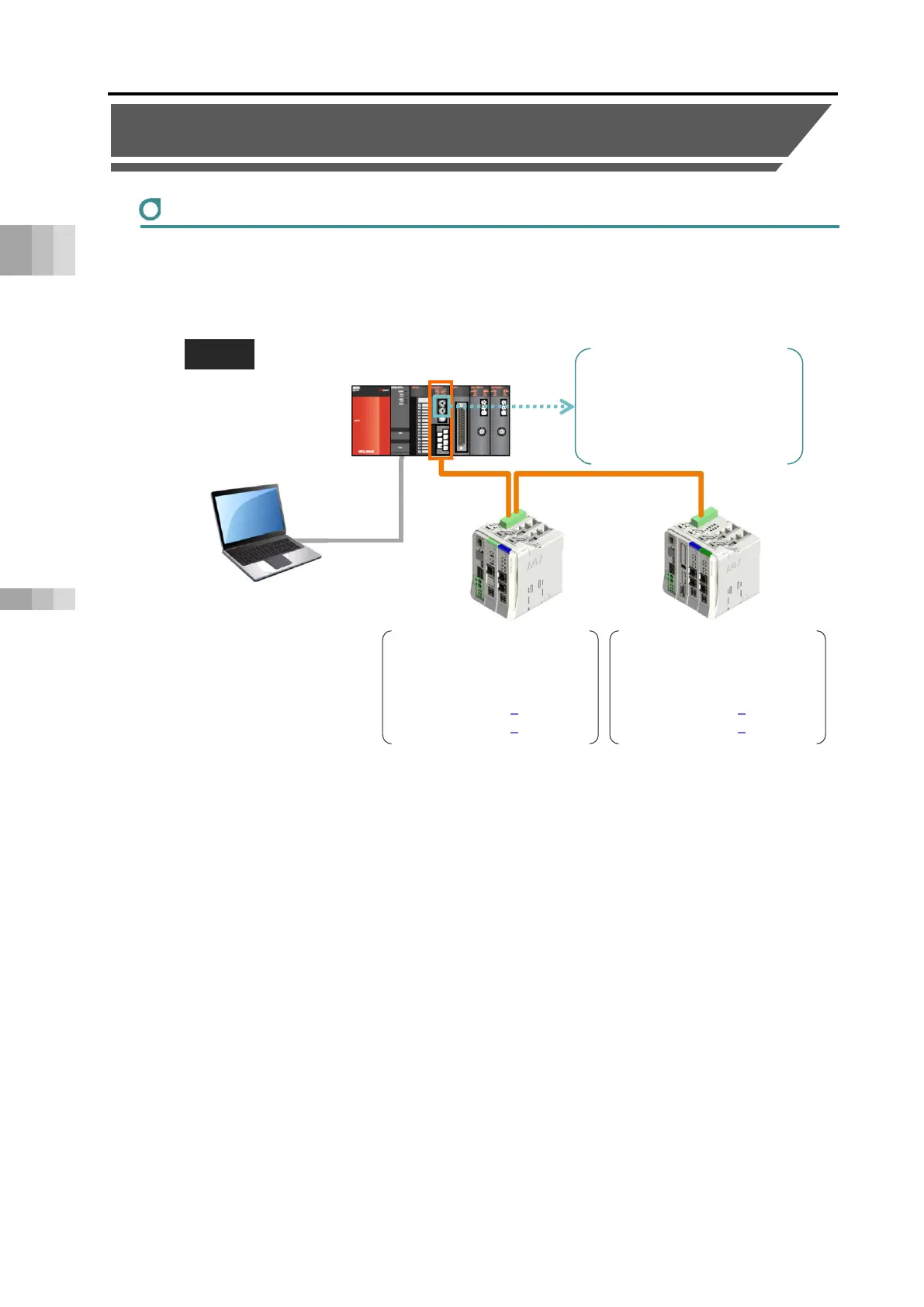

Ex) Two RCON units are connected to the CC-Link master unit of PLC.
[Connection between PLC and PC software]
Start up the Mitsubishi Electric Co., Ltd. PLC programming software GX Works2 and connect the
CC-Link master unit.
For installation procedure and the like of GX Works2,
refer to "Appendix 14.1 Installing GX Works2" in Mitsubishi Electric Co., Ltd. Engineering
Software GX Works2 Version 1 Operating Manual (Common Edition).
Manufactured by Mitsubishi Electric Corporation
PLC
programming
software GX Works2
GX Works2
dedicated cable
PLC
Occupancy information
By station type : Ver.1
Remote device station
Extended cyclic : 1x
Number of occupied stations : 4 stations occupied
RCON System Unit 1
Occupancy information
By station type : Ver.2
Remote device station
Extended cyclic : 4x
Number of occupied stations : 2 stations occupied
RCON System Unit 2
Station No. = 0 (master station number)
(x10 → 0, x1 → 0)
Communication speed
10Mbps
Same communication speed throughout the network
◆ Master
Connection
example
