5.4 Part Names/Functions and External Dimensions
A5-13
ME0384-4A
Chapter 5 200V Driver Unit 200V Power Supply Unit

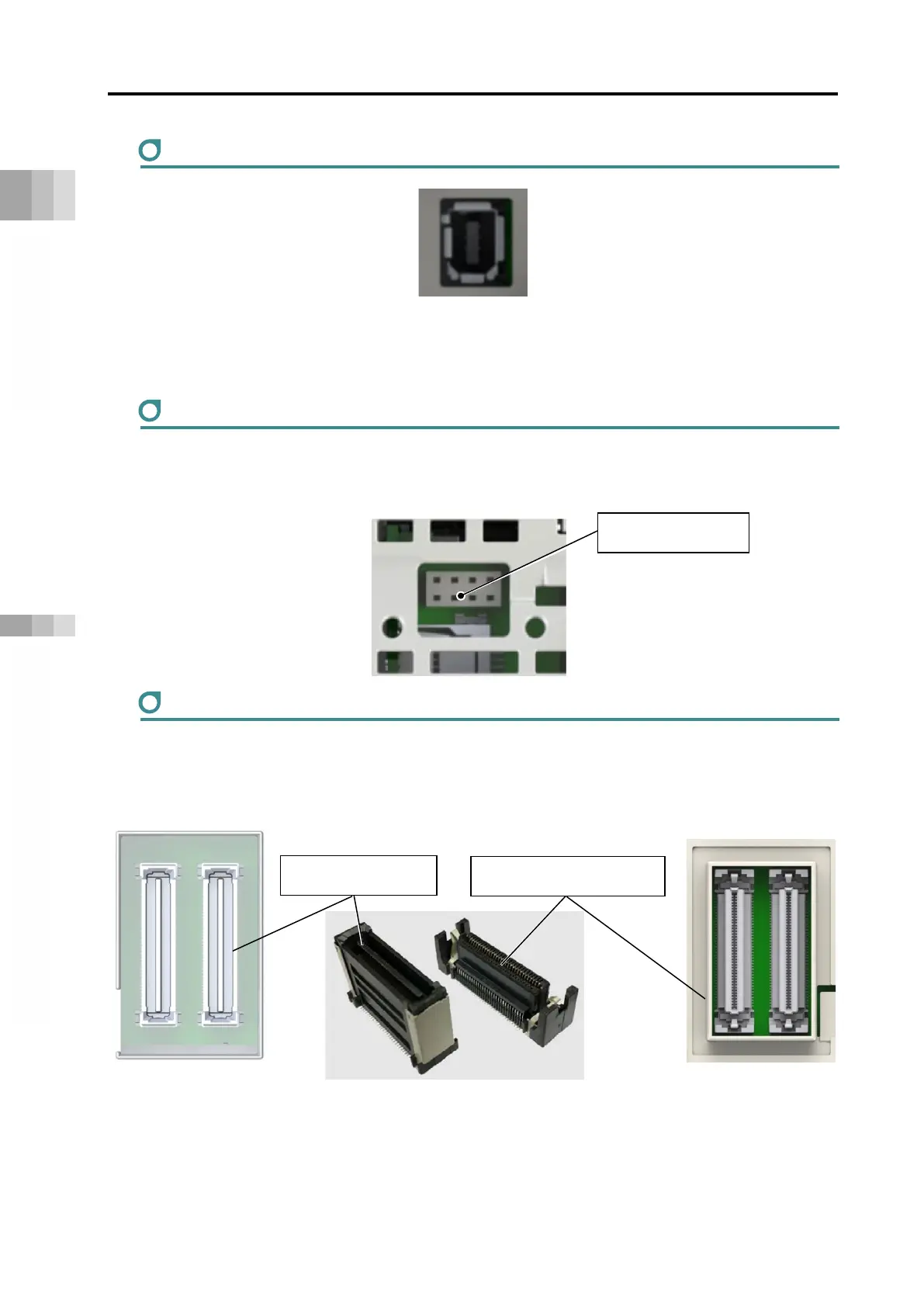

Driver Stop Connector
It is a connector to use the driver stop feature.
Refer to 2.5 Connection Diagram / Driver Stop Circuit (Page A2-37) for detail.
Keep the enclosed dummy plug (model code: DP-6) on when this feature is not to be used.
Fan connector
A connector to connect the Fan Unit for 200V Driver Unit. It connects to the fan board connector
on the fan unit side.
Connectors
A connector for use between units. Two identical connectors are used. The connectors have a
floating structure that absorbs connector misalignment due to housing mating or mounting
misalignment between connectors.
Fan connector
Plug side connector
Receptacle connector
To Next Page
