1.2 Features
A1-2
ME0384-4A
1.2 Features
(1) Modular connections with excellent expansibility

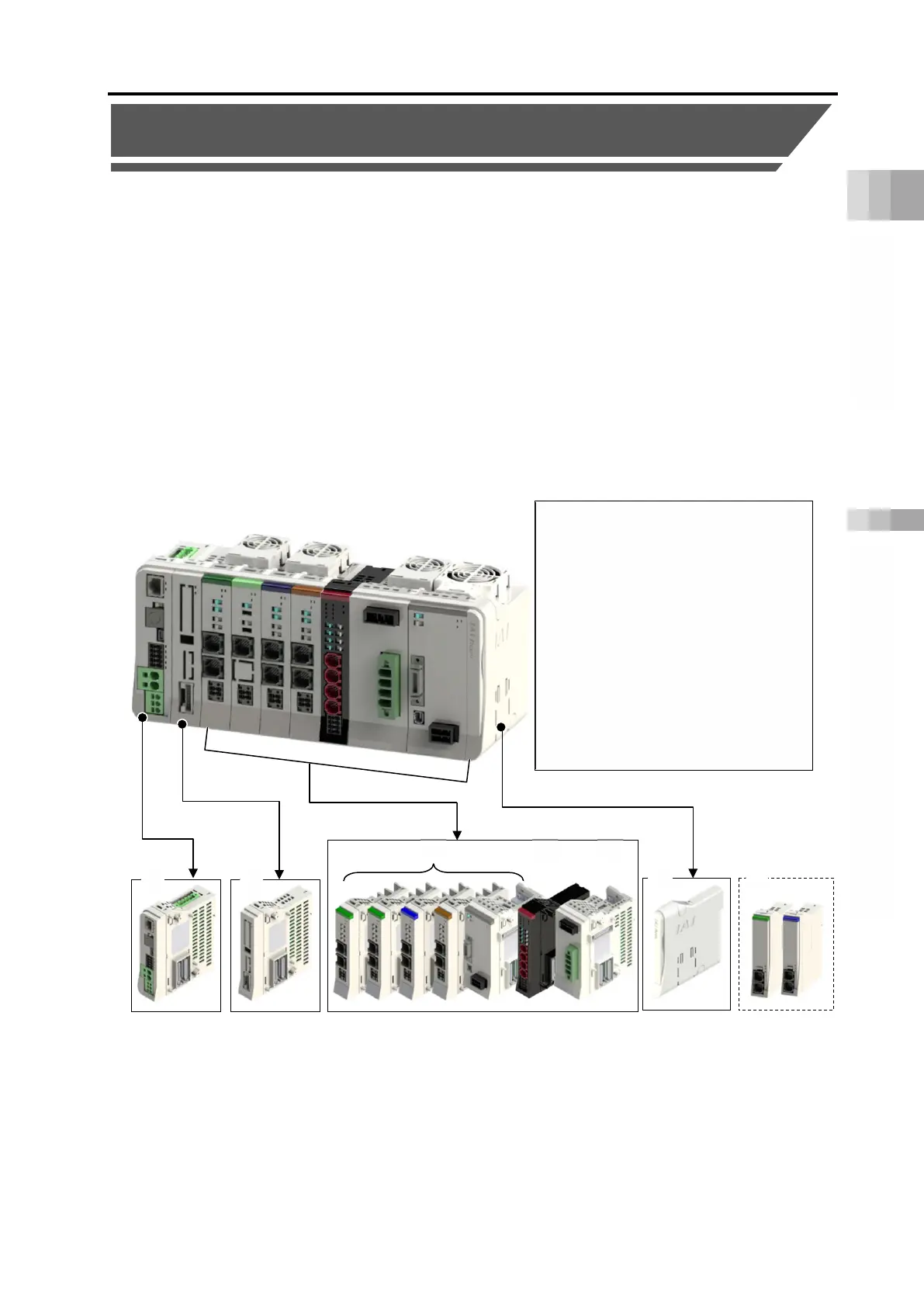

The following 7 types of units can be freely combined to build the RCON system.
Max. number of connectable axes is 16 axes
(Note 1)
.
It is available to connect each type of ROBO Cylinder (RCP/High-Thrust RCP Series, RCA/RCL
Series, RCD Series and RCS Series) and industrial robots. In addition, it is available to increase
the types of robots to connect by using SCON extension units.
Each driver unit can also connect to a simple absolute unit to support simple absolute type
ROBO Cylinders.
Note 1: When direct numerical control mode is used with field networks other than CC-Link or
CC-Link IE Field, up to 8 axes can be connected.
(1) Gateway unit
1 RCON system uses 1 gateway unit
and terminal unit set.
(2) SCON Extension Unit
(3) Driver unit
(4) EC Connection Unit
(5) 200V Power Supply Unit
(6)
Terminal Unit
(7) Simple absolute unit
(Simple Absolute Unit stands alone
and is not connected.)
