5.1 Operation Confirmation with PC Software
B5-16
ME0384-4A
Operation Check of ELECYLINDER
Shown below, explains how to operate in PC software (Model Code: RCM-101-*-*) when
ELECYLINDER is connected via the EC connection unit.
For how to check operation in the teaching pendant (TB-02/03), refer to an instruction manual of
each ELECYLINDER or teaching pendant.
[Caution when Connecting ELECYLINDER]
● SIO connectors on ELECYLINDER side cannot be used during being connected to the EC
connection unit.
● ELECYLINDER will be in motor voltage drop condition (alarm in teaching pendant: 203) if the
teaching pendant gets into disable status by the deadman’s switch.
● When the mode switch on the gateway unit is set to AUTO, it should not be available to go to
the try run window of the digital speed controller for ELECYLINDER.
● If the mode switch on the gateway unit gets switched from MANU to AUTO during the try run
window for the ELECYLINDER digital speed controller is displayed, the try run window should
close.
Select [Position] → Edit/Teach from the main
menu or click button, and the screen
switches to the simple data setting window.

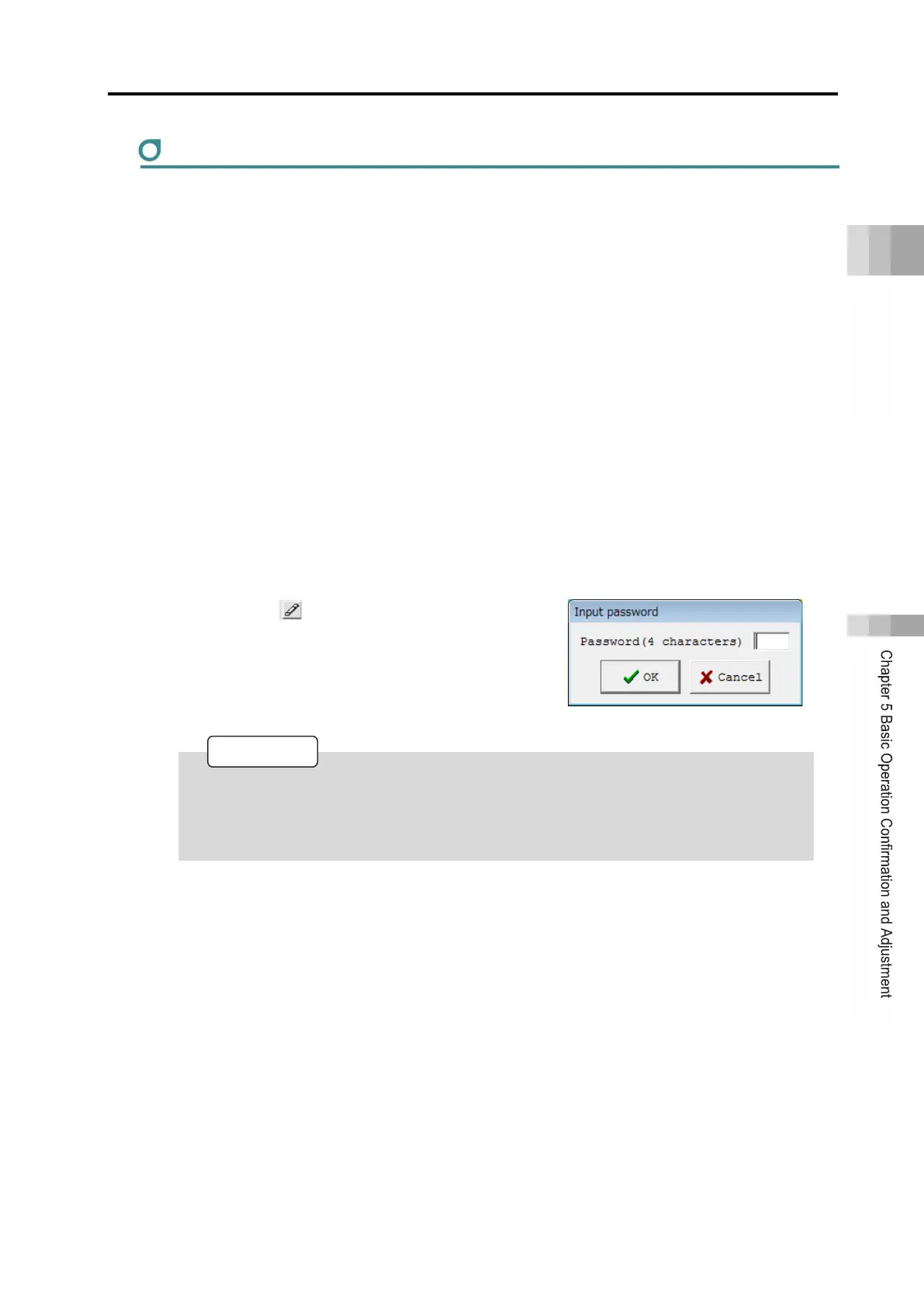

Except when the position edit password is set
to “0000”, the password input window should
show up. Input the password.
The position edit password at delivery is set to “0000”.
For how to change the password, refer to PA Software (RCM-101-*-*) Instruction
Manual (ME0355).
