5.1 Operation Confirmation with PC Software
B5-17
ME0384-4A

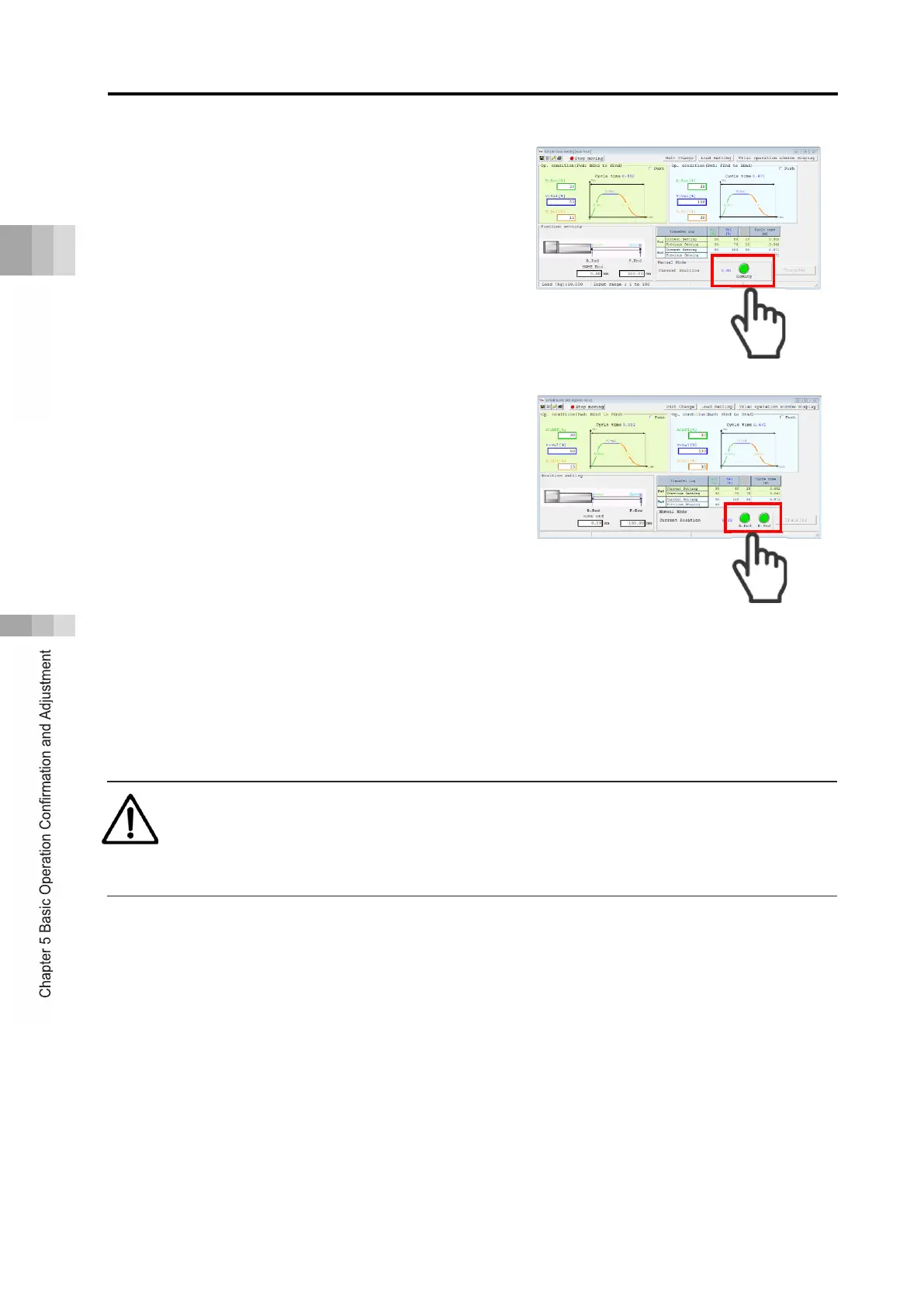

Click “Home-Return” button.
ELECYLINDER starts performing the home-
return operation.
Once the home-return operation is complete,
[Backward End] and [Forward End] buttons
should appear.
(Note) There is no need of having the home-
return operation for the battery-less
absolute encoder type (WA).
Click either [Forward End] button or
[Backward End] button.
ELECYLINDER starts moving forward or
backward.
Stop the click during operation and the
ELECYLINDER starts to decelerate and stop
from that timing.
[Stop Position / Operating Condition Setting / Adjustment]
ELECYLINDER is ready with the stop position and operating conditions set before delivery.
Adjustment can be made to the stop position and operating conditions in the simple data setting
window.
Caution
● Make sure to touch [Transfer] after setting or adjusting the data.
● Switching the window without transferring should allow to get the data back.
Also, without transferring, operation with “Manual Run” would not work.
To Next Page
