3.5 Field Network General Specifications
A3-22
ME0384-4A
Chapter 3 Gateway Unit
Specifications Section

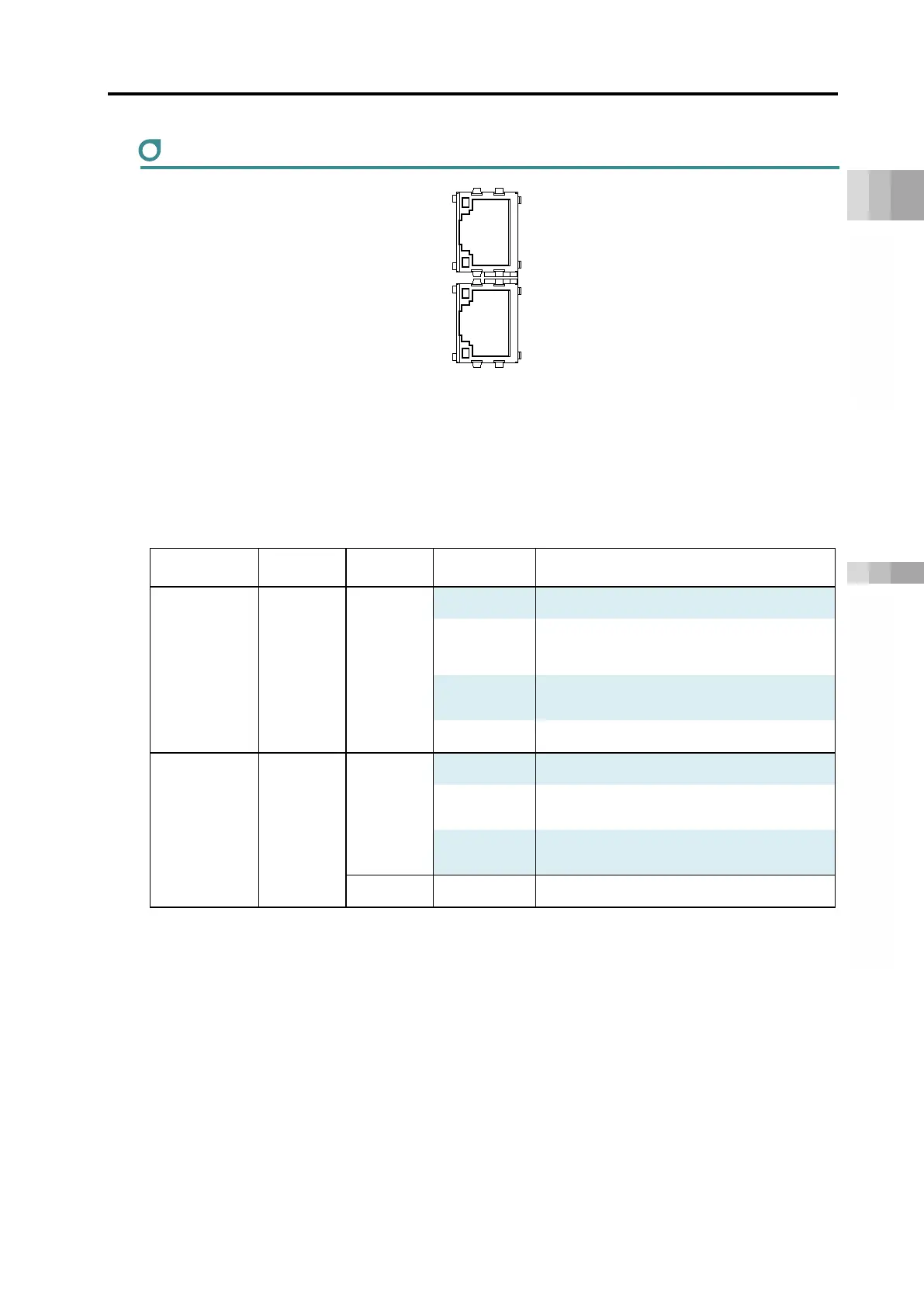

EtherCAT
Cable/connector specifications: Ethernet ANSI/TIA/EIA-568-B Category 5 or higher, shielded
8P8C modular plug (RJ45)
* It is to be prepared by the customer.
LED display
Name
Panel
notation
Display
color
Status Description
STATUS 0 ERR Orange
Light ON Signal component (module) error
Blinking
(continuous)
Configuration information (settings)
error
ON: 200 ms / OFF: 200 ms
Blinking
(2 times)
Watchdog timer/timeout
ON: 200 ms x 2 / OFF: 1,000 ms
Light OFF Initialized status
STATUS 1 RUN
Green
Light ON Normal operation (OPERATION) status
Blinking
(continuous)
PRE-OPERATION status
ON: 200 ms / OFF: 200 ms
Blinking
(1 time)
SAFE OPERATION status
ON: 200 ms / OFF: 1,000 ms
Orange Blinking Signal component (module) error
OUT
IN
