5.4 Part Names/Functions and External Dimensions
A5-9
ME0384-4A
Chapter 5 200V Driver Unit 200V Power Supply Unit
LED display
Panel notation
Status Description
T RUN
Green
Light ON Normal internal bus communication
Blinking
Waiting for initialization signal, initialization communication failed
Orange Light ON Bus communication error generated
SYS
Green
Light ON Servo ON
Light OFF Servo OFF
Red Light ON Alarm triggered, Stop Signal Input On

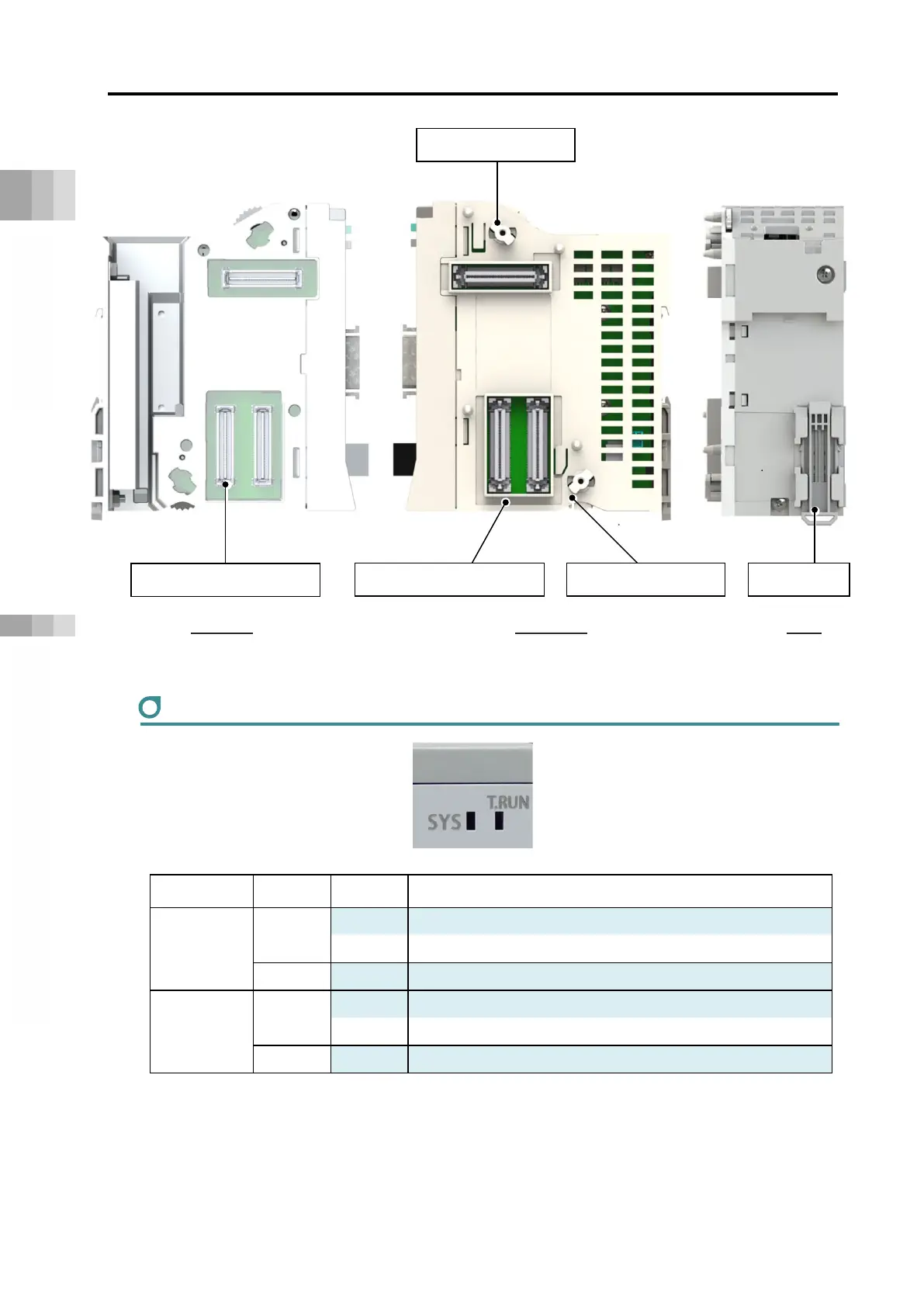

Left side Right side Rear
Connector bottom part
DIN tab
Connector upper part
Linked
Connector
