7.5 Part Names/Functions and External Dimensions
A7-11
ME0384-4A
Specifications Section
Chapter 7 Simple Absolute Unit

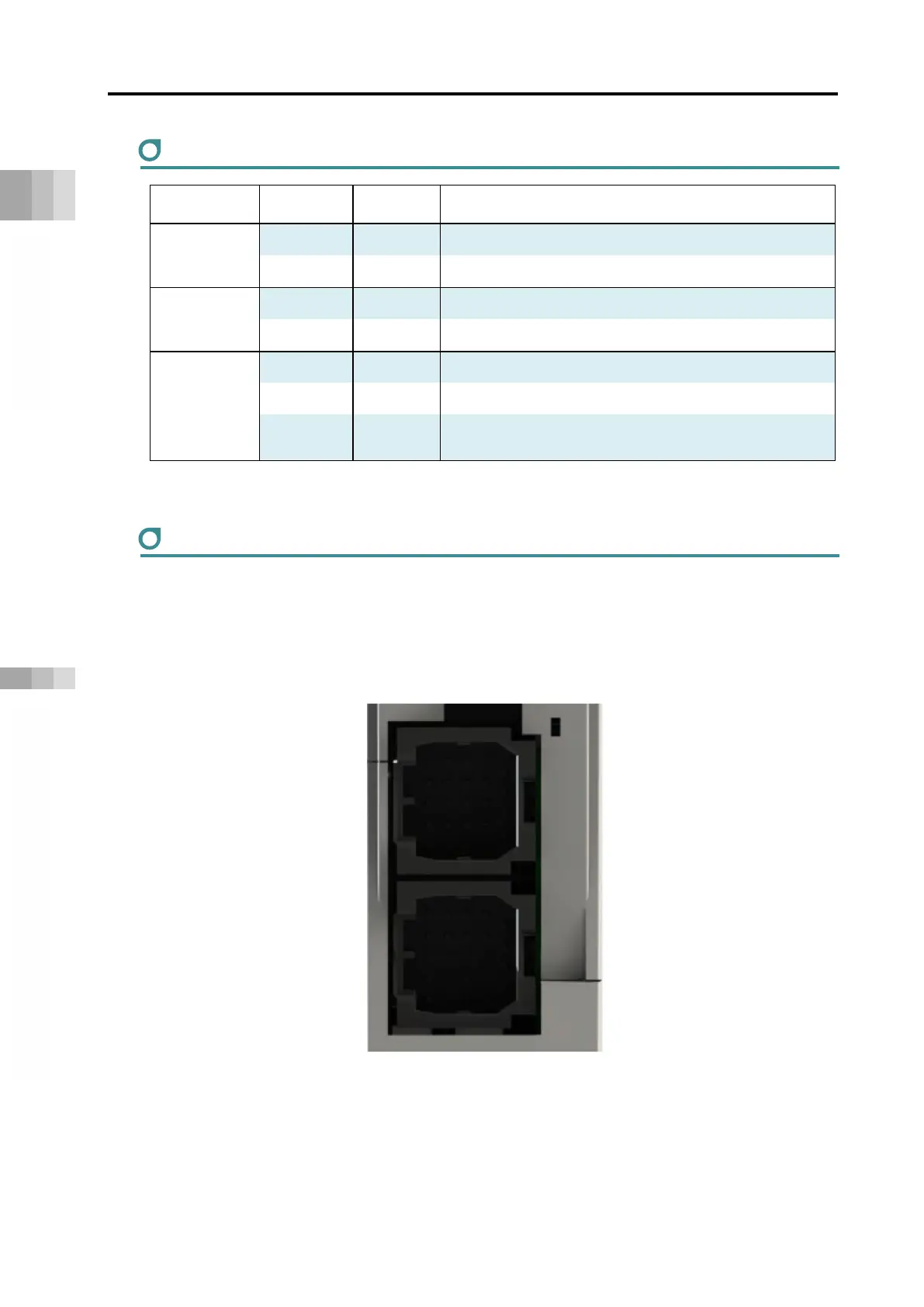

LED display
Panel
notation
Display
color
Status Description
SYS
Green Light ON Normal operation
Red Light ON Alarm triggered
STATUS1
Green Light ON Home return complete
Red Light ON Home return not complete
STATUS0
Green Light ON Battery fully charged
Red Light ON Battery not connected
Orange
(green/red)
Light ON Battery charging
Actuator cable connector/driver unit cable connector
Connect the simple absolute unit to an actuator using an actuator cable connector (MPG), and
to a driver unit with the driver unit cable connector (CONT). There are two types, one for stepper
motors and one for AC servo motors, as the pin arrangement of the MPG connector differs. A
color panel can be used for identification, as with the driver unit.
MPG
CONT
