4.4 Part Names/Functions and External Dimensions
A4-26
ME0384-4A
Chapter 4 24V Driver Unit EC Connection Unit

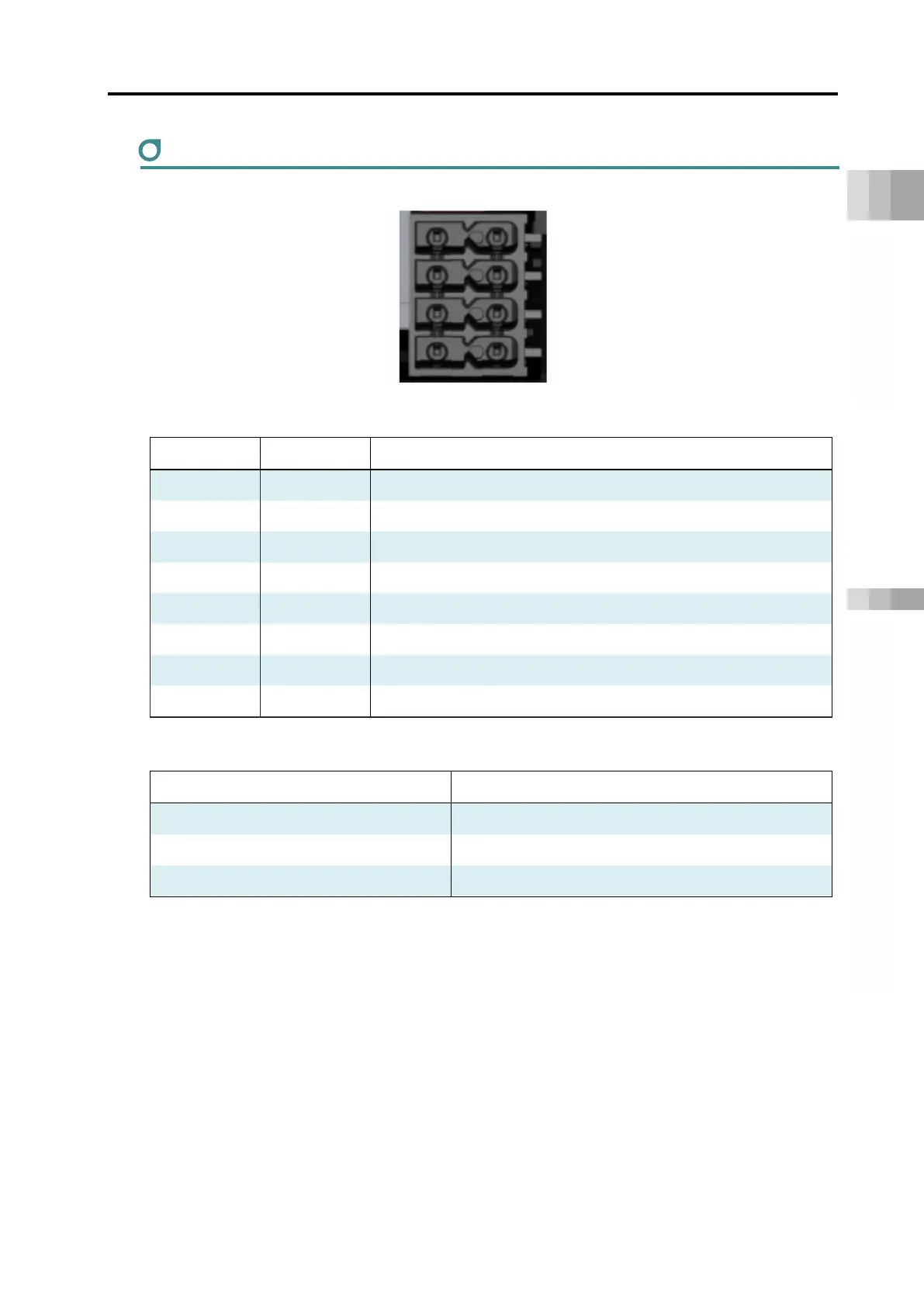

Drive source shutoff connector
Drive-source cutoff input. Drive source can be cut off by individual axes.
Cable connector name: DFMC1.5/2-ST-3.5 (Phoenix Contact)
Pin No. Signal name Description
1 MPO_3 Motor power output 4th axes
2 MPO_2
Motor power output 3th axes
3 MPO_1
Motor power output 2nd axes
4 MPO_0
Motor power output 1st axes
5 MPI_3
Motor power input 4 th axes
6 MPI_2
Motor power input 3 th axes
7 MPI_1 Motor power input 2nd axes
8 MPI_0
Motor power input 1st axes
Cable side connector compatible wire
Item Specifications
Compatible wire AWG20 ~ 16 (Copper Wire)
Strip length 10.0mm
Rated Temperature on Isolation Coating 60degC or more
1
2
3
4
5
6
7
8
To Next Page
