3.9 Gateway Parameter Configuration Tool
A3-166
ME0384-4A

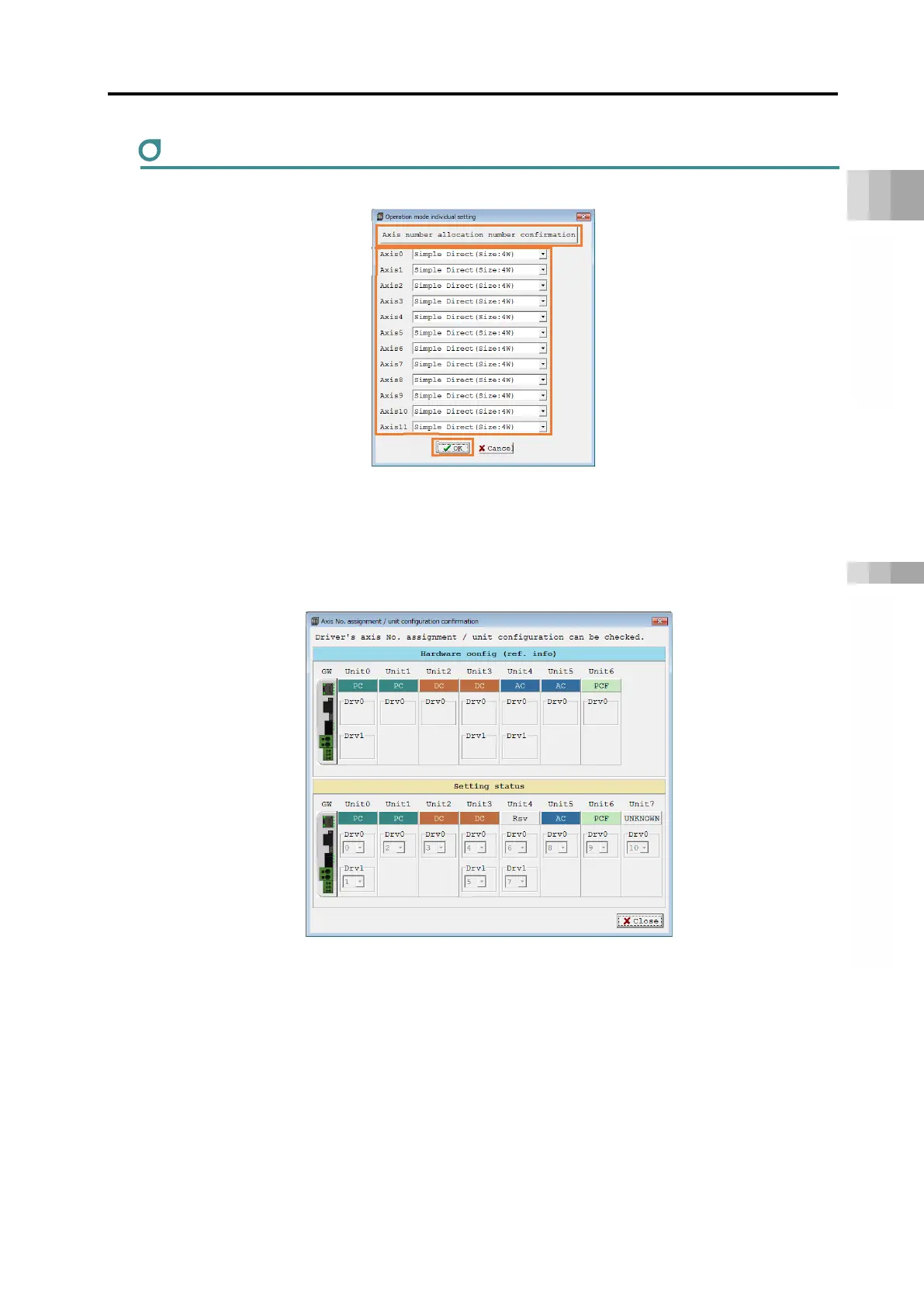

Operation mode individual setting
The operation for operation mode individual setting is as follows.
(1) Axis number assignment confirmation
When "Axis number allocation number confirmation" button is pressed, the "Axis number
assignment / unit configuration confirmation screen" opens. Note that axis numbers cannot
be edited on this screen.
(2) Operation mode individual setting
Set in order to set the operation mode for each axis.
(3) OK
It confirms the change and returns to the main screen. If the operation mode of each axis is
not the same, the display on the main screen will be individually set.
(1)
To Next Page
