3.4 Part Names/Functions and External Dimensions
A3-13
ME0384-4A

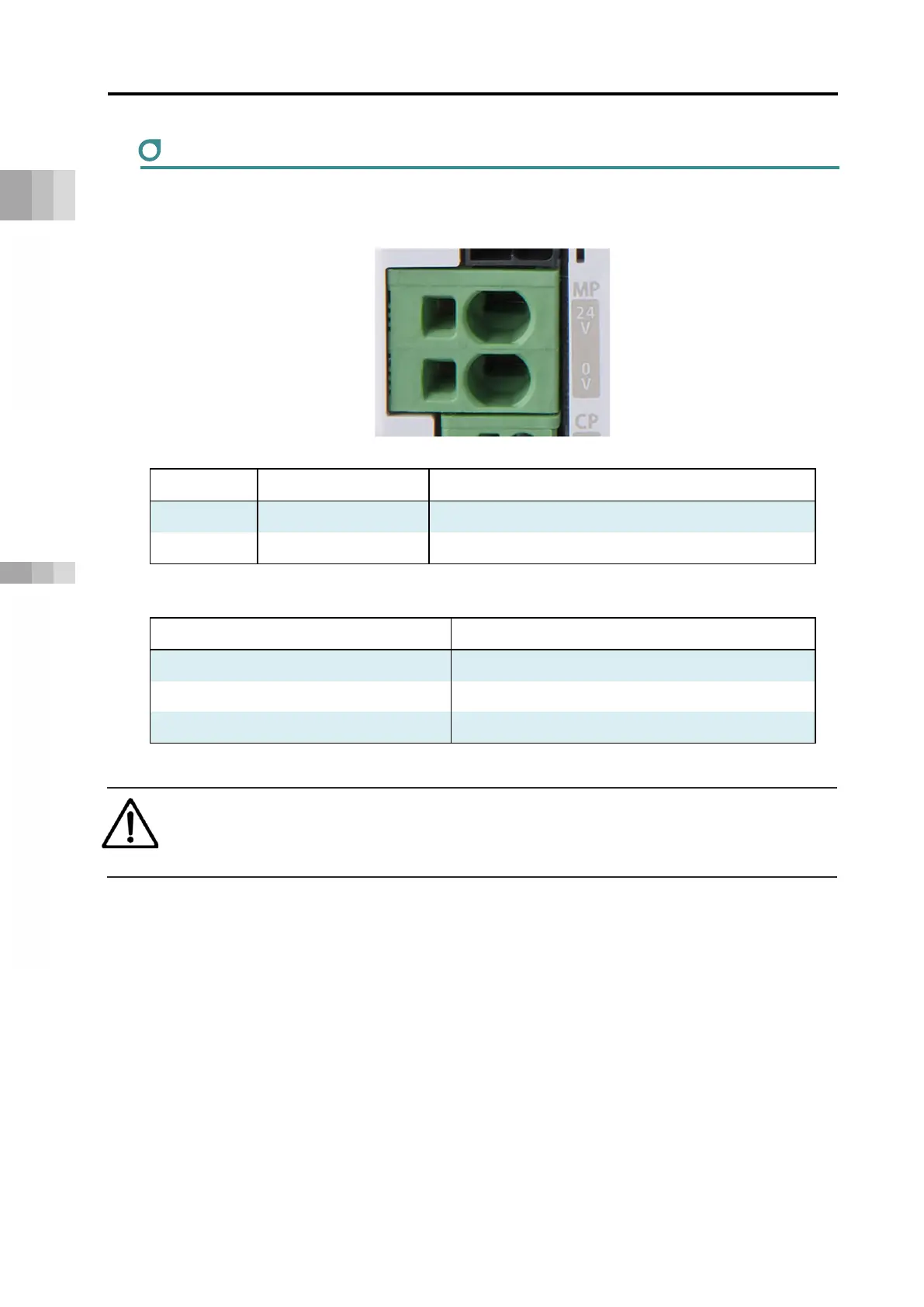

Motor power connector
Motor power +24 V supply connector. Supplies power to the motor of the 24V driver unit linked
to the gateway unit.
Pin No. Signal name Description
1 GND 0 V
2 MP Motor power +24 V input
Motor power connector compatible wire
Item Specifications
Compatible wire AWG20 ~ 8 (Copper Wire)
Strip length 15.0mm
Rated Temperature on Isolation Coating 60degC or more
Caution
● Select a wire with thickness that tolerates the rated current total value obtained in "2.3
Specifications/Power supply capacity (page A2-10)".
2
1
To Next Page
