IAI Rcon User Manual

2.2. Wiring
B2-17
ME0384-4A
Startup Section
Chapter 2 Mounting and Wiring

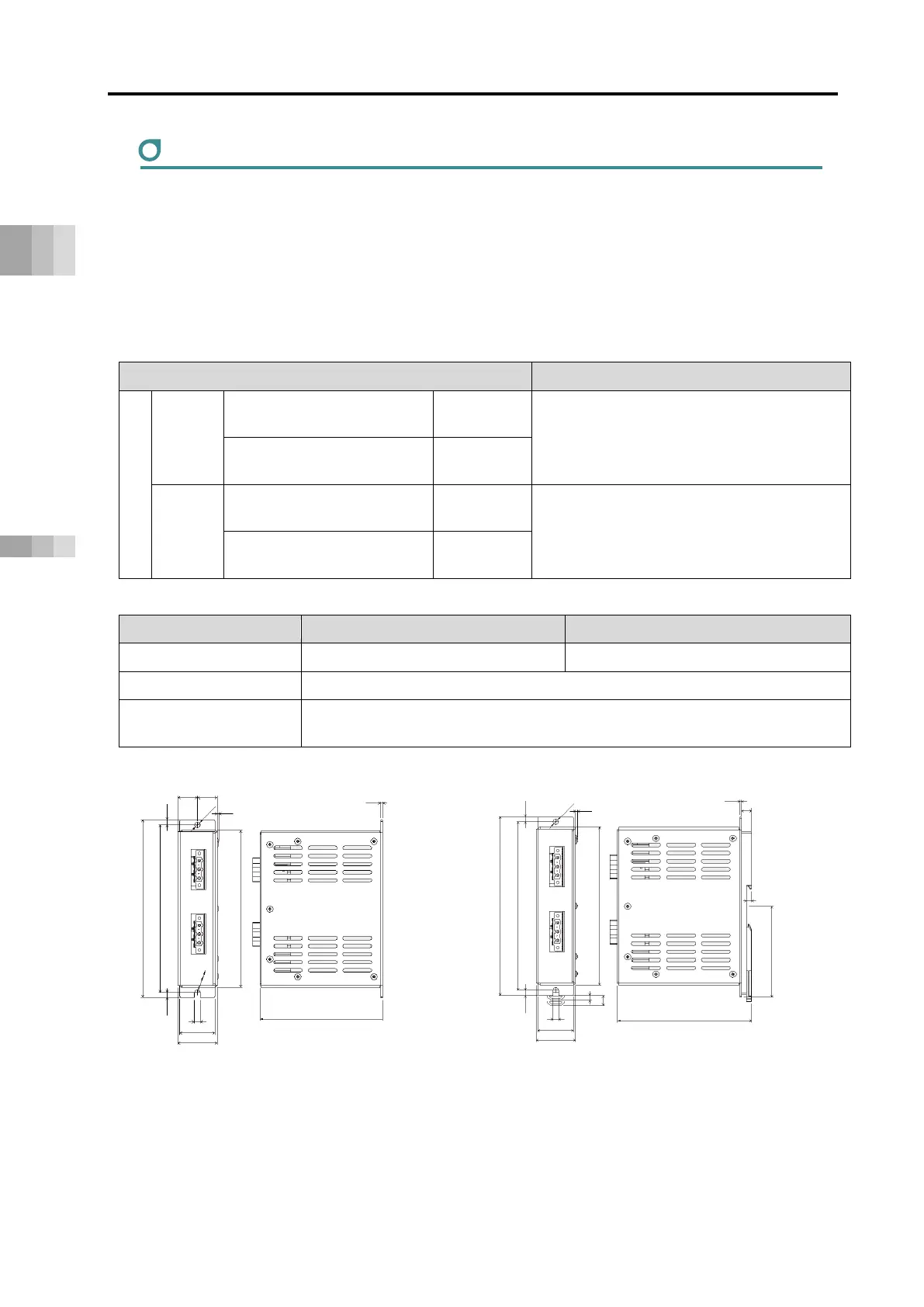

Wiring for External Regenerative Resistor Unit
There is a built-in regenerative resistor of 60W equipped in 200V driver unit and 200V power
supply unit.
The regenerative resistor is basically not necessary, but use this external regenerative resistor in
case of shortage in regenerative resistor.
[External Regenerative Resistor Unit]
[Model, Accessories]
Item
Enclosed Items
Model
First
Unit
Screw attachment small
type
RESU-2
200V Driver Unit Connection Cable
(Model code: CB-SC-REU010)
1m enclosed
DIN rail attachment small
type
RESUD-2
2nd
unit or
later
Screw attachment small
type
RESU-1
Regenerative resistor unit connection
cable
(Model code: CB-ST-REU010)
1m enclosed
DIN rail attachment small
type
RESUD-1
[Specification]
RESU-1, RESU-2
RESUD-1, RESUD-2
Body Size [mm]
W34 × H154 × D106.5
W34 × H158 × D115
Body Mass
Approx. 0.4kg
Internal Regenerative
Resistor
235Ω 80W
[Appearance]
RESU-1, RESU-2 (Screw attachment small type) RESUD-1, RESUD-2 (DIN rail attachment small type)
16.85
17.15
1.5
Ø5
4.5
145
154
136
R2.5
4.5
106.5
5
30.7
34
1.5
1.5
Ø5
4.5
145
154
136
4.5
115
5
30.7
34
1.5
4
4
8.5
(
DIN
レール中心から
77
)
(9)
