4.2 How to Read the Model Number
A4-3
ME0384-4A
Specifications Section
Chapter 4 24V Driver Unit EC Connection Unit

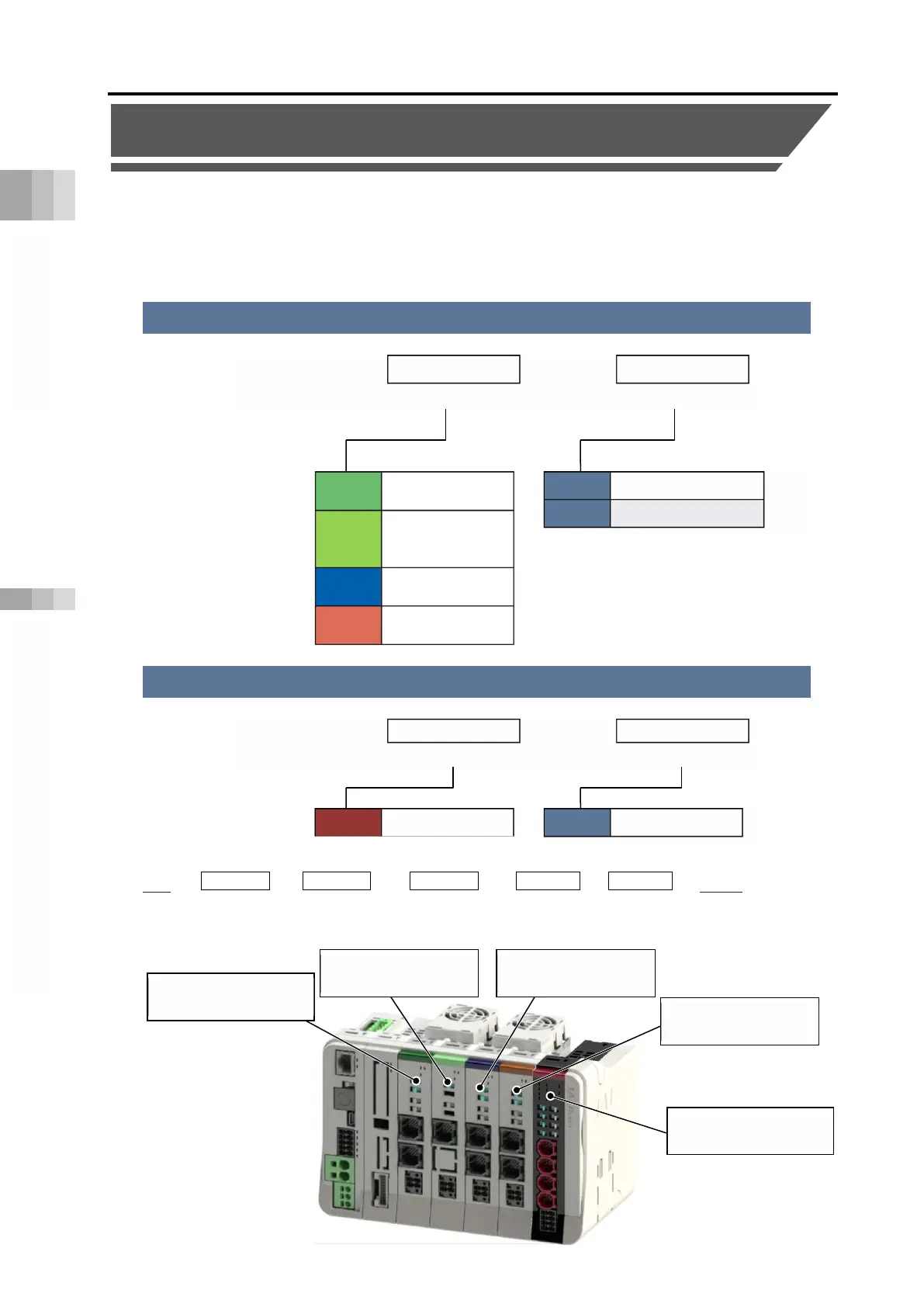

4.2 How to Read the Model Number
The model codes for the 24V driver unit and EC connection unit are as shown below.
1-axis specification or 2-axis specification can be selected for RCON-PC/AC/DC.
There is only one type, one-axis type for RCON-PCF and one type, four-axis type for the EC
connection unit.
*ELECYLINDER capable to be connected to the EC connection unit is the option: ACR only.
EC -
- - ( ) - - - ACR
24V Driver unit model
RCON
－
－
Type Number of Axes
PC
Stepper motor
Type
PCF
Stepper motor
56SP/60P/86P
Compatible type
AC
AC servo motor
type
DC
DC brush-less
motor type
1 1-axis specification
2 2-axis specification
EC Connection Unit model
RCON
－
－
Type Number of Axes
EC ELECYLINDER 4 Four-axis type
<
Series>
<Type>
<Lead>
<
Motor Joint Type>
<
Stroke>
<Option>
ACR: RCON
-EC connection type
(tentative)
<
Cable Length>
Driver unit
(Model : RCON-PCF-1)
Driver unit
(Model : RCON-AC-2)
Driver unit
(Model : RCON-DC-2)
EC Connection Unit
(Model : RCON-EC-4)
Driver unit
(Model : RCON-PC-2)
