3.5 Field Network General Specifications
A3-20
ME0384-4A
Chapter 3 Gateway Unit
Specifications Section

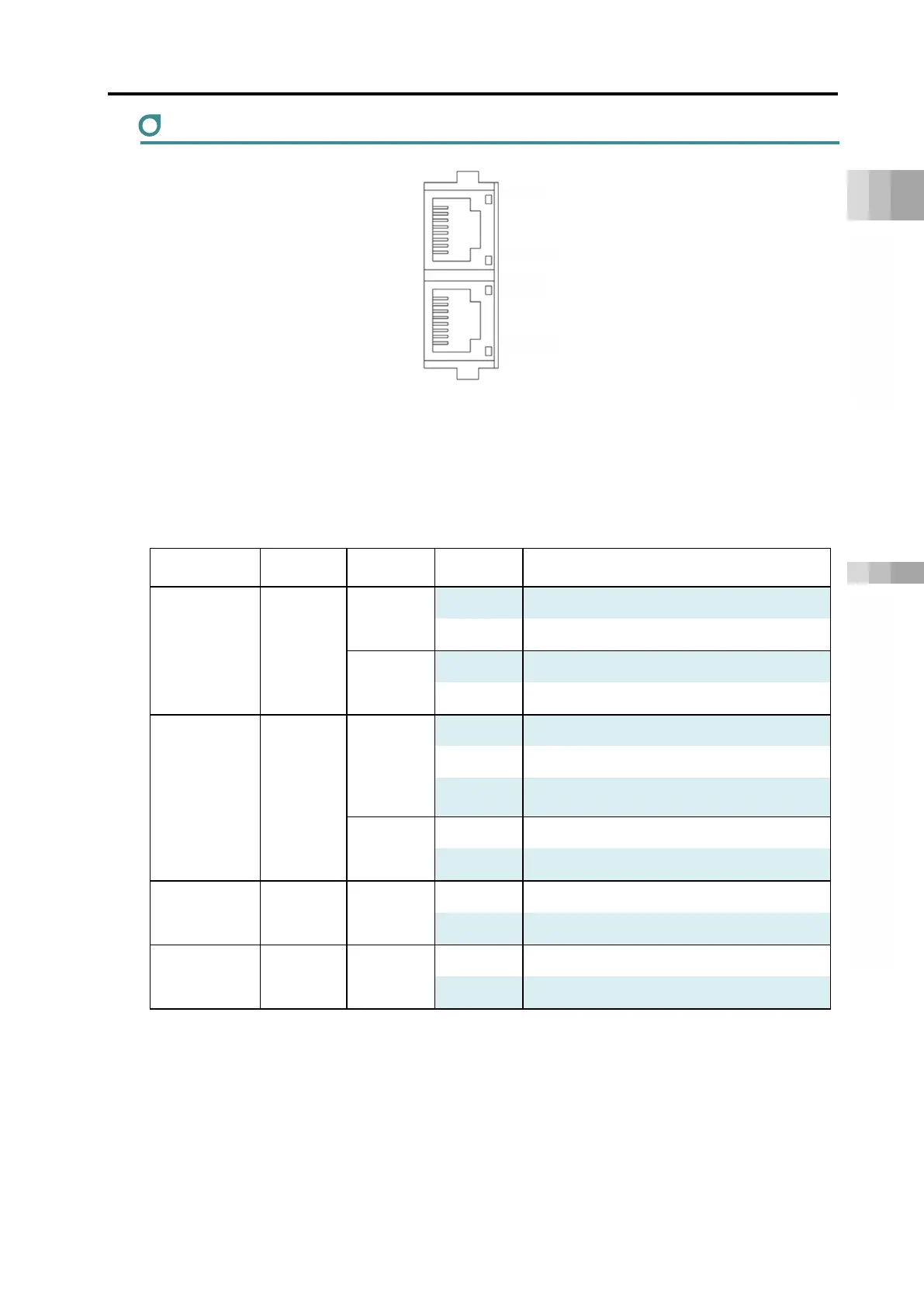

CC-Link IE Field
Cable/connector specifications: Ethernet ANSI/TIA/EIA-568-B Category 5e or higher, shielded
8P8C modular plug (RJ45)
* It is to be prepared by the customer.
LED display
Name
Panel
notation
Display
color
Status Description
STATUS 0 MS
Green
Light ON Normal operation
Light OFF Hardware error generated
Orange
Light ON Error generated
Light OFF Normal operation
STATUS 1 NS
Green
Light ON Cyclic transmission ON
Blinking Cyclic transmission OFF
Light OFF
Cyclic transmission not yet implemented,
fragmented
Orange
Light ON Receive data error
Light OFF Receive data normal
LINK － Green
Light ON Link up
Light OFF Link down
L.ER － Orange
Light ON Receive data error
Light OFF Receive data normal
L.ER
LINK
L.ER
LINK
