3.4 Part Names/Functions and External Dimensions
A3-16
ME0384-4A

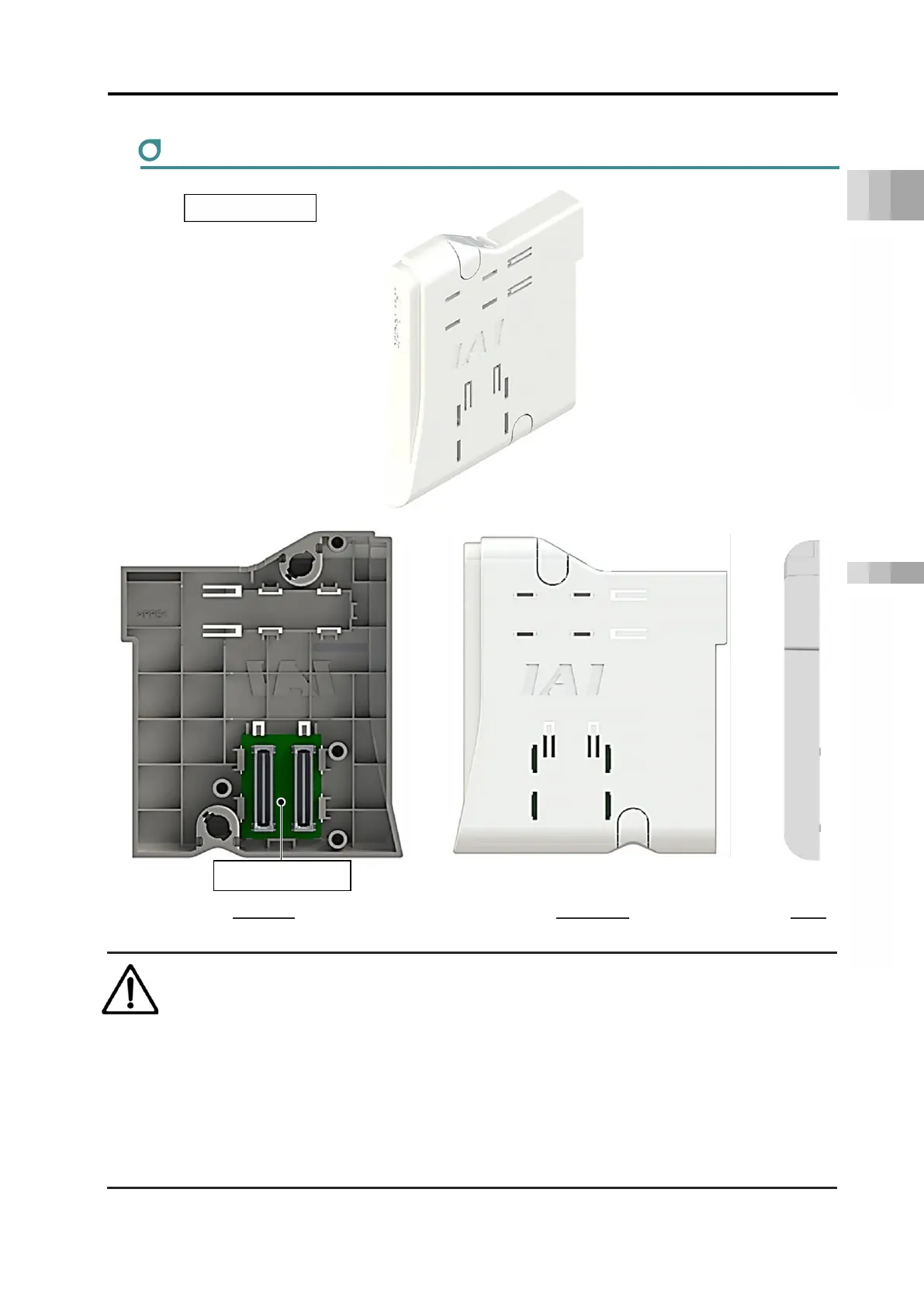

Terminal unit
Danger
● The terminal unit to be used should differ depending on the cases when the 200V driver
unit is not connected and when it is. the terminal unit (RCON-GW-TR) shown in this
page is a terminal unit for 24V that is to be used when the 200V driver unit is not to be
connected.
When the 200V driver units are to be connected, make sure to use the terminal unit for
200V (RCON-GW-TRS) enclosed in the 200V power supply unit. This terminal unit for
24V has a structure that does not allow itself connected to the 200V driver unit,
however, it could be forcefully inserted, which could cause fire on the connector as well
as damage on it. [Refer to A5-20]
RCON-GW-TR
Left side Right side Rear
Connector
