IAI Rcon User Manual

2.2. Wiring
B2-15
ME0384-4A
Startup Section
Chapter 2 Mounting and Wiring
CC-Link wiring
This manual introduces the example of connecting with a CC-Link master unit with a Mitsubishi
Electric PLC as the host PLC.

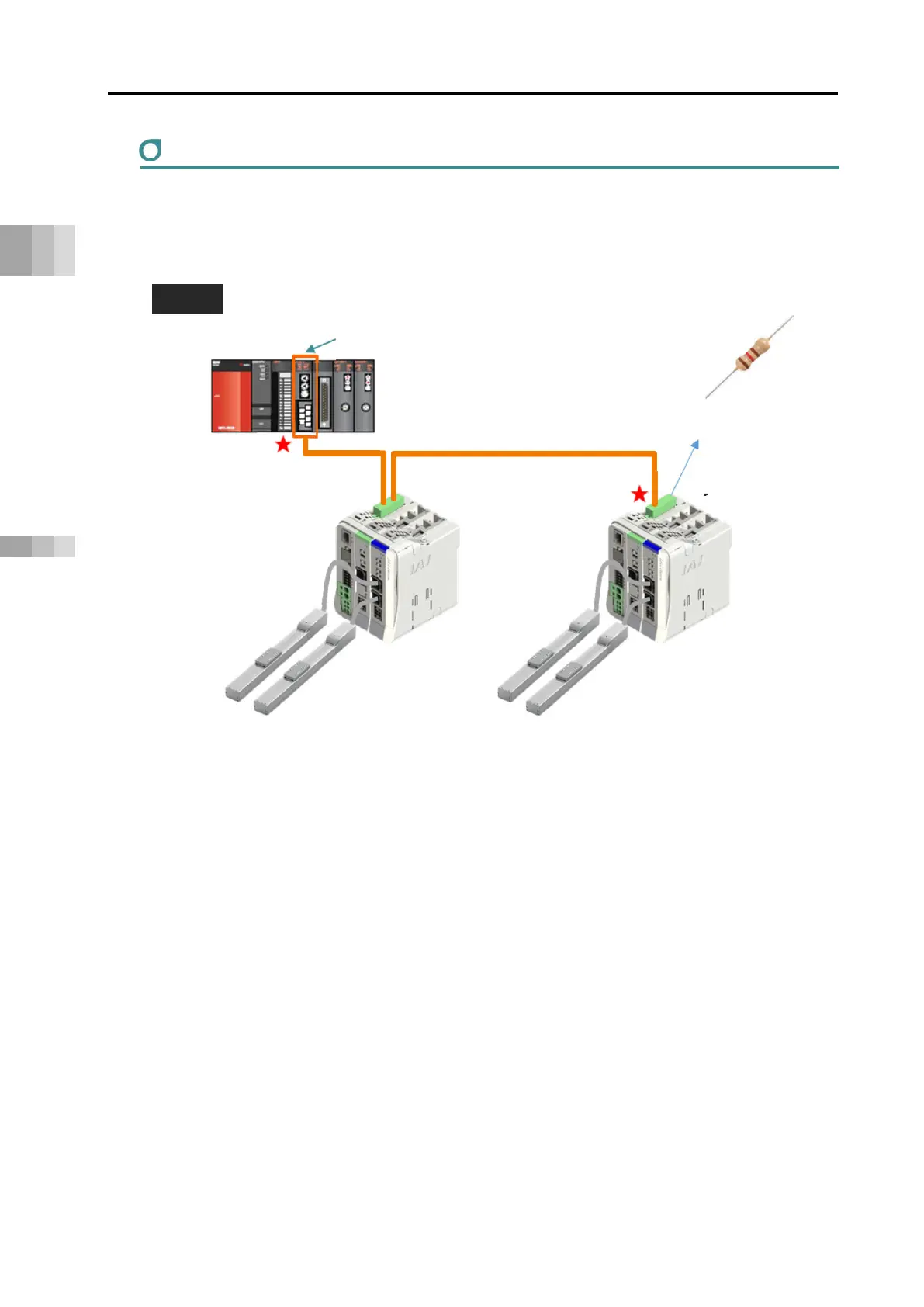

[Connecting the host PLC and two RCON systems]
Actuator
Actuator
RCON System
CC-Link dedicated cable
(prepared by the customer)
RCON System
* The terminal resistor of the
CC-Link master unit is to be
prepared by the customer.
Host PLC
(prepared by the customer)
CC
-Link master unit (to be prepared by customer)
Terminal resistor
(supplied with RCON system)
Connection
example
