4.4 Part Names/Functions and External Dimensions
A4-15
ME0384-4A
Chapter 4 24V Driver Unit EC Connection Unit

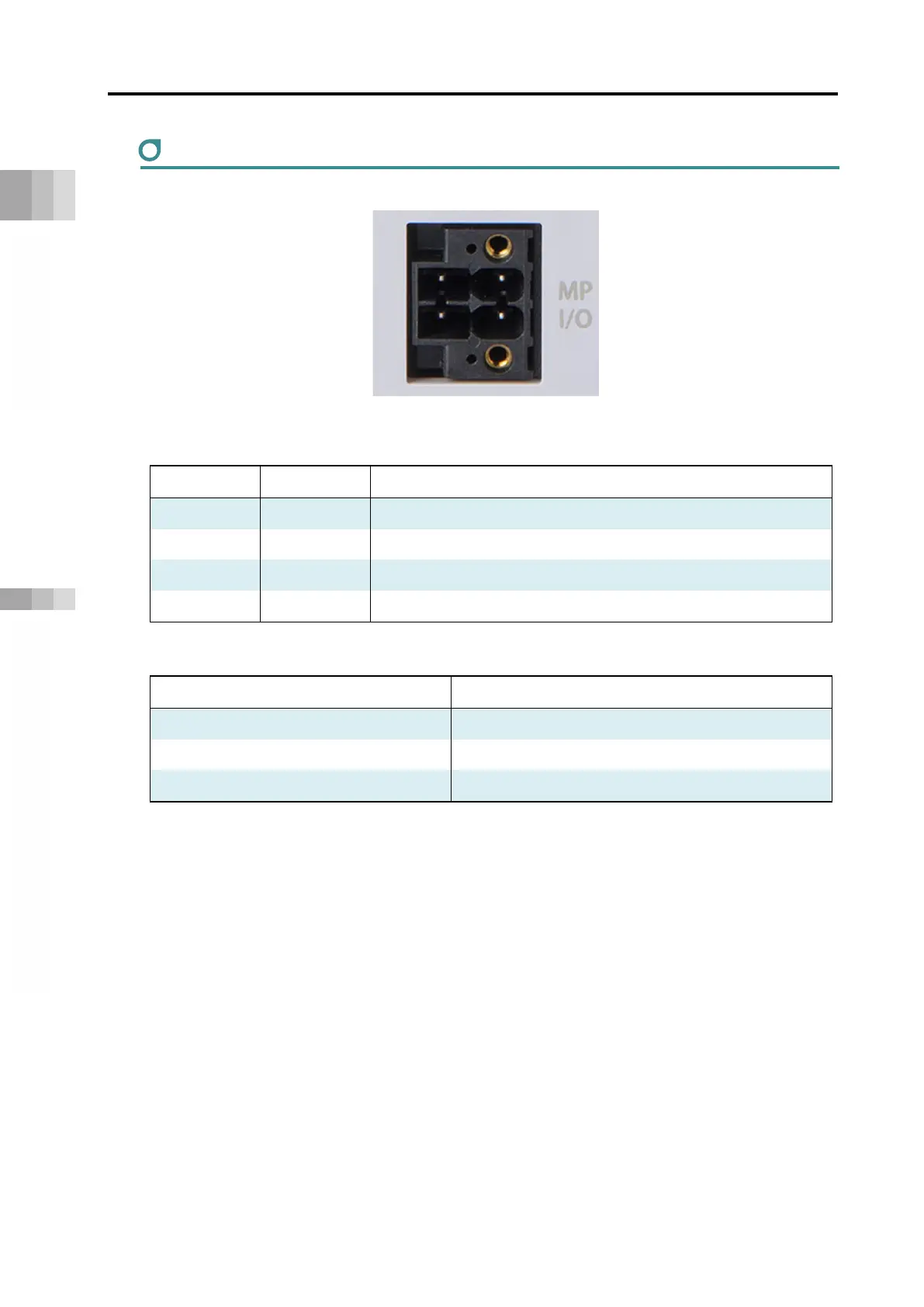

Drive source shutoff connector
Drive-source cutoff input. Drive source can be cut off by individual axes.
Cable connector name: DFMC1.5/2-STF-3.5 (Phoenix Contact)
Pin No. Signal name Description
1 MPO_II Motor power output (2nd axis)
2 MPO_I Motor power output (1st axis)
3 MPI_II Motor power input (2nd axis)
4 MPI_I Motor power input (1st axis)
Cable side connector compatible wire
Item Specifications
Compatible wire AWG20 ~ 16 (Copper Wire)
Strip length 10.0mm
Rated Temperature on Isolation Coating 60degC or more
To Next Page
