5.4 Part Names/Functions and External Dimensions
A5-22
ME0384-4A
Chapter 5 200V Driver Unit 200V Power Supply Unit

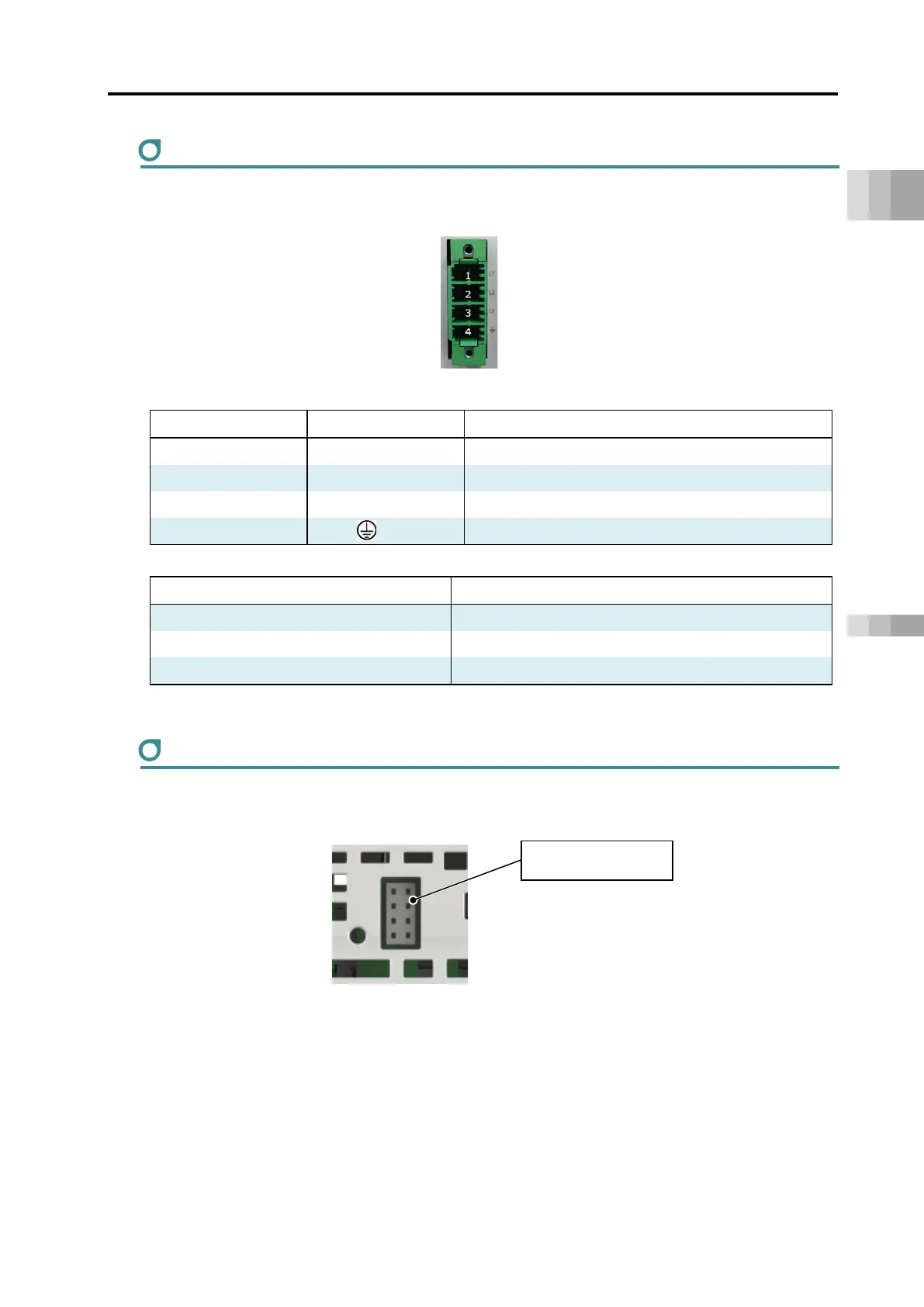

200V AC Input Connector
It is a 3-phase/single-phase 200V AC input connector. The total wattage connectable for 3-phase
200AC should be 2,400W while the total wattage should be 1,600W for single-phase 200V AC.
Cable connector name:SPC5/4-GF-7,62 (Phoenix Contact)
Pin No. Signal name Description
1 L1 (R) 1st Phase
2 L2 (S) 2nd Phase
3 L3 (T) 3th Phase
4
(PE) Protection Grounding
Cable side connector compatible wire
Item Specifications
Compatible wire AWG14 ~ 8 (Copper Wire)
Strip length 15.0mm
Rated Temperature on Isolation Coating 60degC or more
Fan connector
A connector to connect the fan unit. It is the same as the fan unit attached on the 24V driver unit.
It connects to the fan board connector on the fan unit side.
Fan connector
