3.4 Part Names/Functions and External Dimensions
A3-15
ME0384-4A

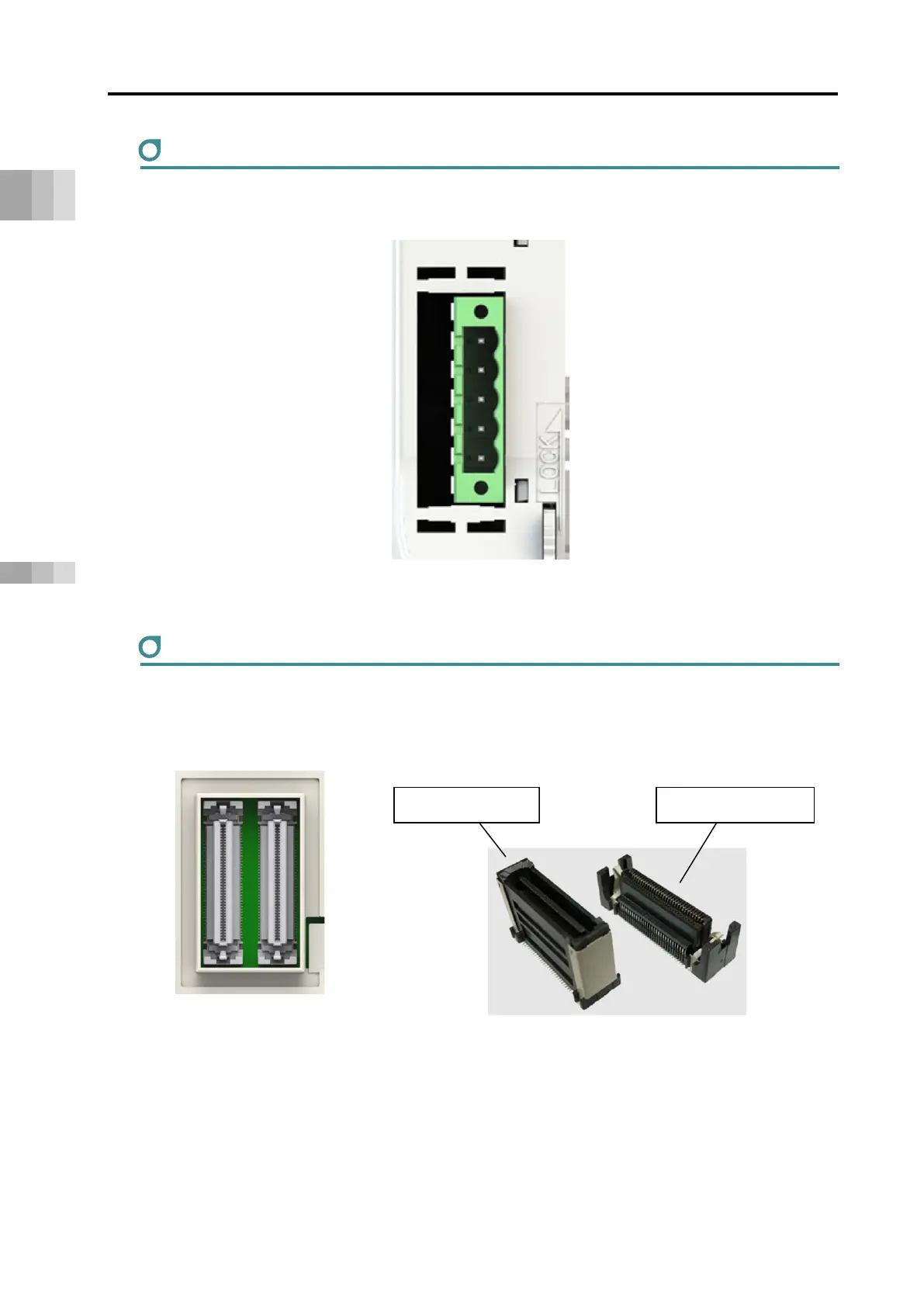

Field network connector
A connector for connecting to field networks. Field network details are listed in "3.5 Field
Network General Specifications (page A3-19)".
Connectors
A connector for use between units. Two identical connectors are used. The connectors have a
floating structure that absorbs connector misalignment due to housing mating or mounting
misalignment between connectors.
Receptacle connector Plug side connector
