3.9 Gateway Parameter Configuration Tool
A3-155
ME0384-4A

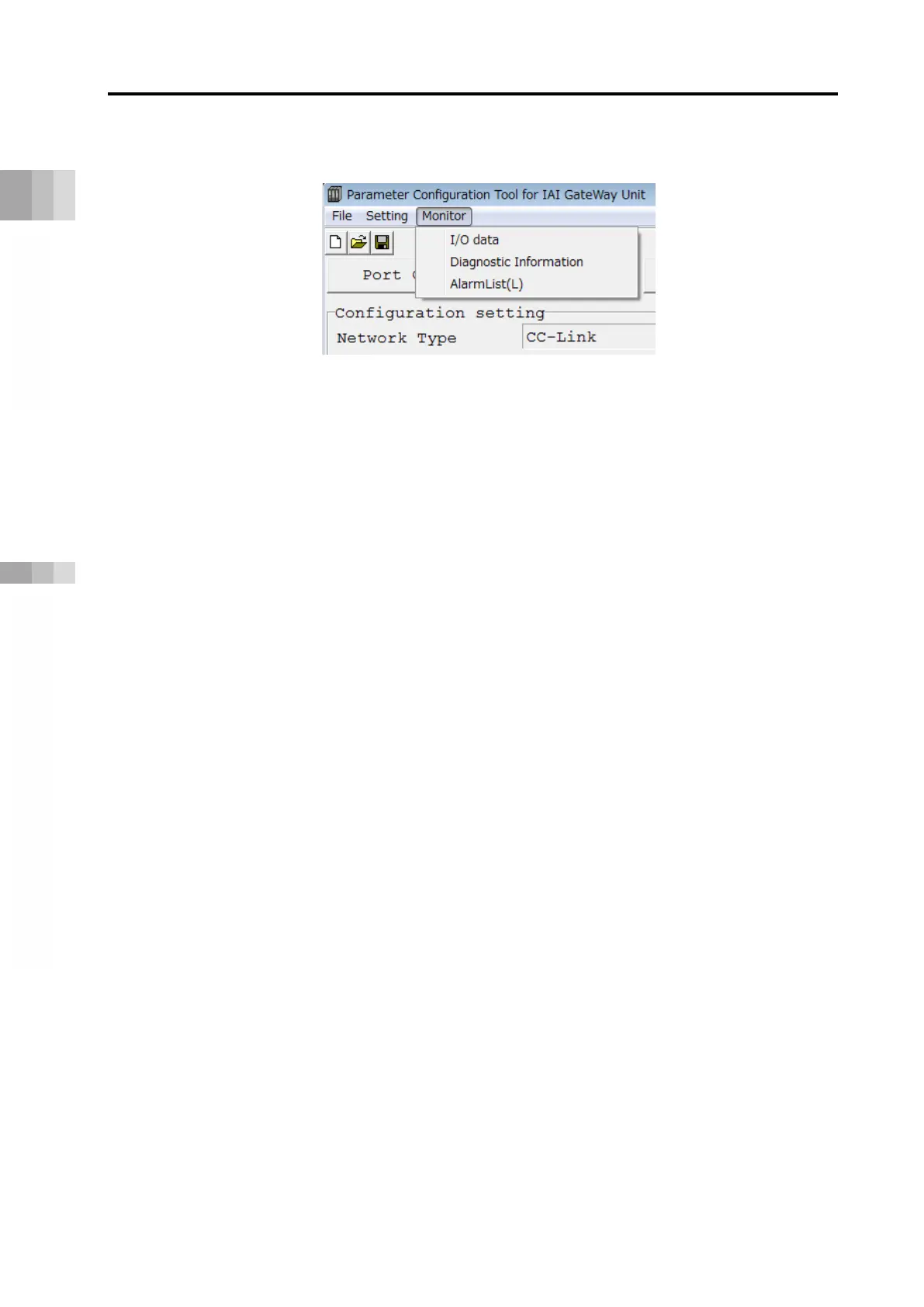

[Monitor menu]
Click the "Monitor" menu in the upper left of the main screen to display the monitor menu items.
(Note) "Monitor" cannot be selected before reading in the parameters.
• I/O data : Displays the communication contents between the host PLC and
gateway unit.
[See "I/O Data (register monitor)" on page A3-162]
• Diagnostic Information : Displays the number of ERRT and ERRC generated, number of
stops and scan time.
[See "Diagnostic information" on page A3-163]
• AlarmList (L) : Imports and displays the alarm list held in the gateway unit.
[See "Alarm list" on page A3-163]
To Next Page
