4.4 Part Names/Functions and External Dimensions
A4-18
ME0384-4A
Chapter 4 24V Driver Unit EC Connection Unit
Specifications Section

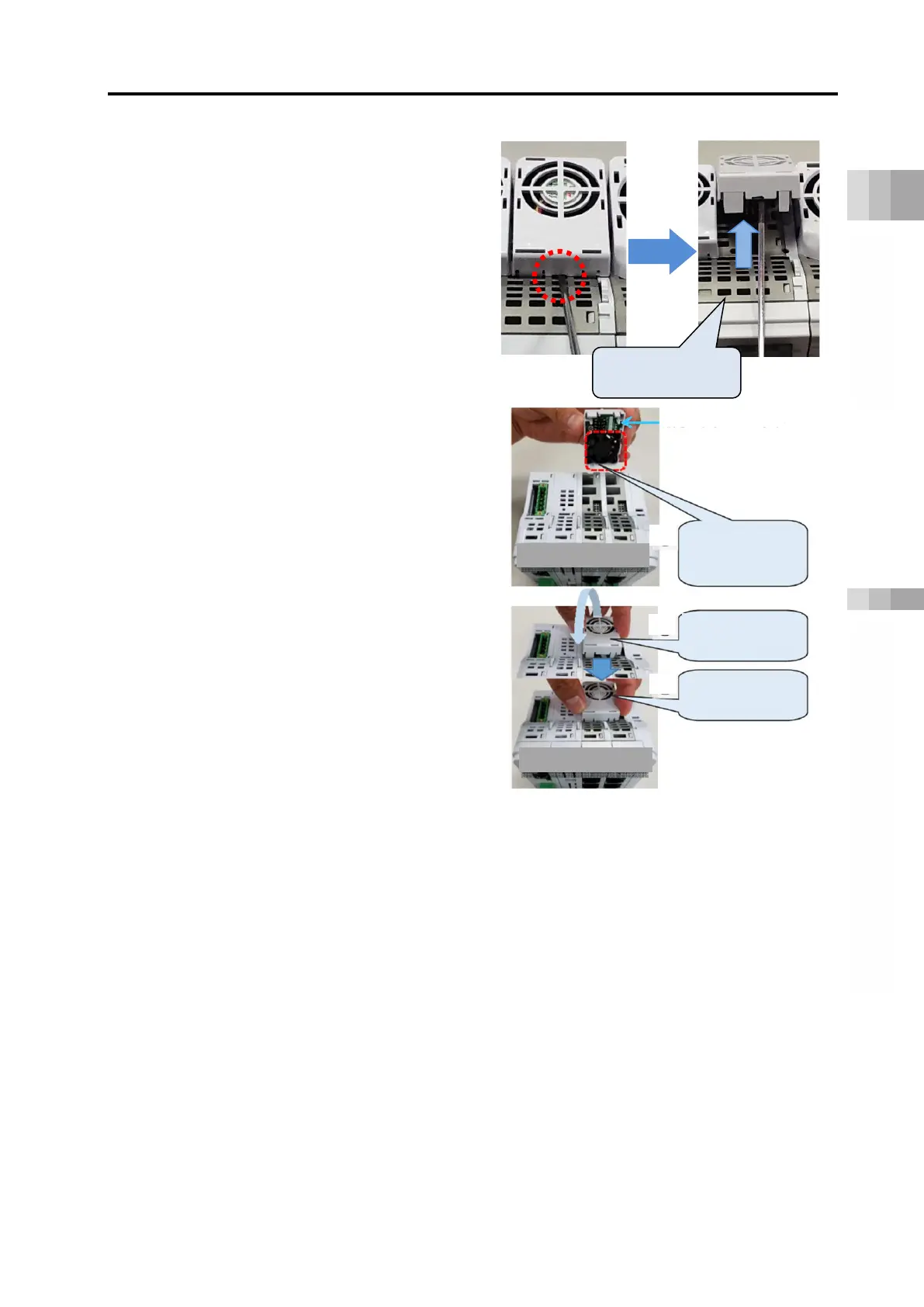

[How to Replace Fan Unit]
<Detaching Fan Unit>
(1) Insert a slotted screwdriver to the cutout
(circled in red in figure on the right) on the
fan unit and pull up the fan unit upwards to
detach it.
<Attaching Fan Unit>
(2) Adjust the installation orientation of the
RCON system and new fan unit.
Hook the claw of the fan unit to the driver
unit as shown in the figure on the right.
(3) Pull down the fan unit to the front of the
RCON system.
(4) Press the fan unit from the top and snap
in.
Hook the claw of
the fan unit to the
driver unit
(2)
Pull down the fan
unit to the front
RCON system front
(3)
(4)
Pull down the fan unit
Press down and snap in
RCON system front
(1) Pull fan unit
off upwards
New Fan Unit
