5.1 Overview
A5-2
ME0384-4A
Chapter 5 200V Driver Unit 200V Power Supply Unit
Specifications Section
Note1: The following 200V servo-motor actuators cannot be connected to the 200V driver units.
1) Motor types other than those from 60W to 750W
2) Encoder types other than battery-less absolute, incremental, spurious absolute or index absolute type
3) For 3-Phase 200V ·········· Combination that exceeds 2400W for total wattage of actuators connected
to 200V driver unit
4) For Single-Phase 200V ··· Combination that exceeds 1600W for total wattage of actuators connected
to 200V driver unit
5) Servo Press types
6) SCARA Robot
7) CT4 Series
8) ZR Series
When connecting the actuators described in (1) to (4) above, use SCON extension unit and SCON-CB.
Also, DD/DDA and LSA-W21S are not applicable for the single-phase 200V.
Note 2
There is a built-in regenerative resistor of 60W equipped in 200V driver unit and 200V power supply unit.
The regenerative resistor is basically not necessary, but use an external regenerative resistor unit in
case of shortage in regenerative resistor.
Teaching tool
Model:
TB-02
TB-03
Model:
RCM-101-MW
RCM-101-USB
Power supply unit
Model: PSA-24
RCS/ISB, etc.
SCON-CB
（RCON Connection Type）
SCON Extension Unit
Model : RCON-EXT
Field network
Fan unit
Model : CON-FU
RCON-FUH
RCP RCD
RCA
･
RCL
Simple Absolute Unit
RCP/RCA
Model: RCON
-ABU-P (for stepper motor)
Model: RCON
-ABU-A (for AC servo motor)
PLC

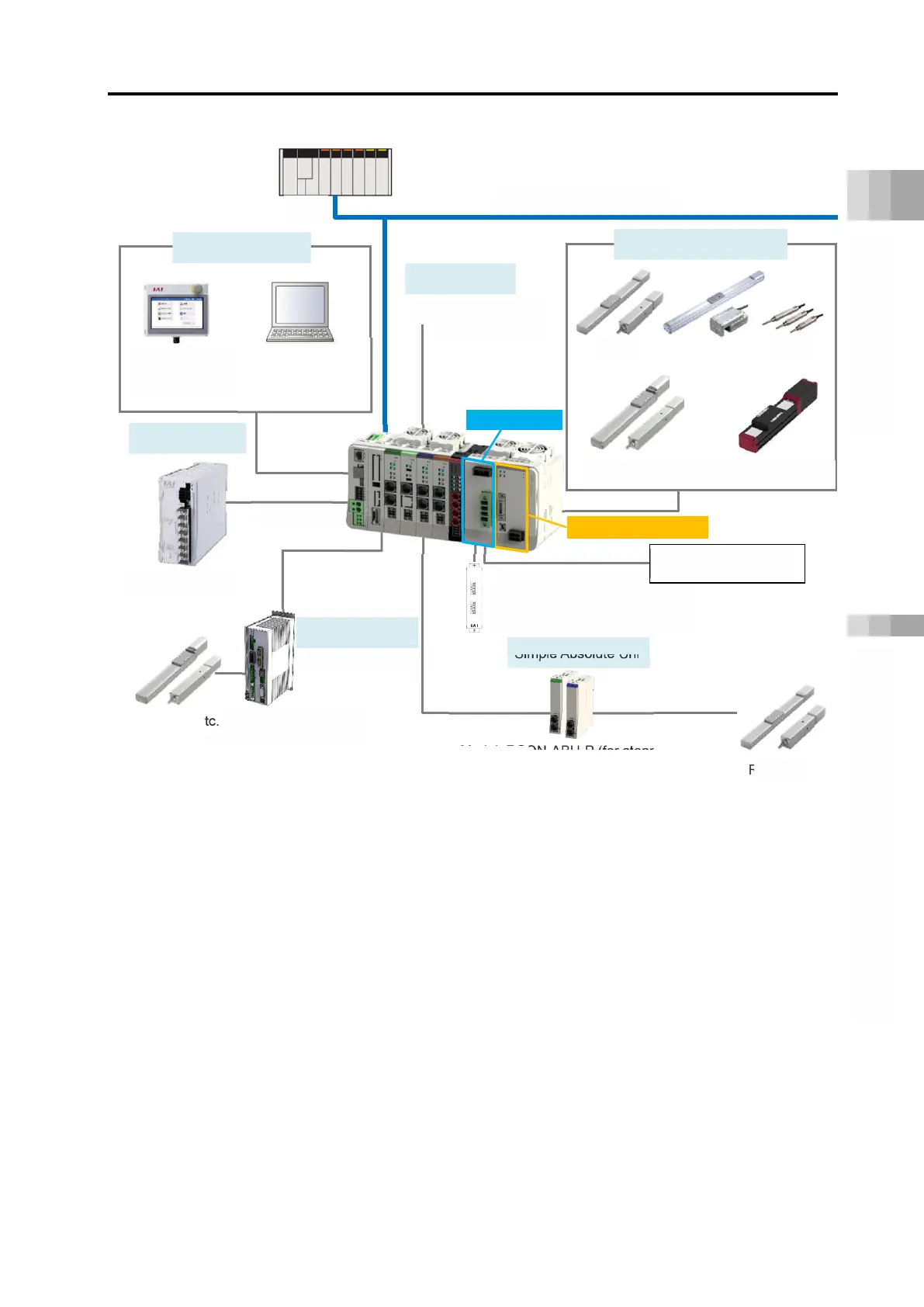

Connectable actuators
ELECYLINDER
RCS/ISB, etc.
(Note 1)
+24V, 0V
Regenerative Resistor Unit
(Note 2)
Model:RESU
-2/RESUD-2
3-Phase / Single-Phase
AC200V
200V Driver Unit
200V Power Supply Unit
