7.1 Overview
A7-2
ME0384-4A
Chapter 7 Simple Absolute Unit
Note1: The following 200V servo-motor actuators cannot be connected to the 200V driver units.
1) Motor types other than those from 60W to 750W
2) Encoder types other than battery-less absolute, incremental, spurious absolute or index absolute type
3) For 3-Phase 200V ·········· Combination that exceeds 2400W for total wattage of actuators connected
to 200V driver unit
4) For Single-Phase 200V ··· Combination that exceeds 1600W for total wattage of actuators connected
to 200V driver unit
5) Servo Press types
6) SCARA Robot
7) CT4 Series
8) ZR Series
When connecting the actuators described in (1) to (4) above, use SCON extension unit and SCON-CB.
Also, DD/DDA and LSA-W21S are not applicable for the single-phase 200V.
Note 2
There is a built-in regenerative resistor of 60W equipped in 200V driver unit and 200V power supply unit.
The regenerative resistor is basically not necessary, but use an external regenerative resistor unit in
case of shortage in regenerative resistor.

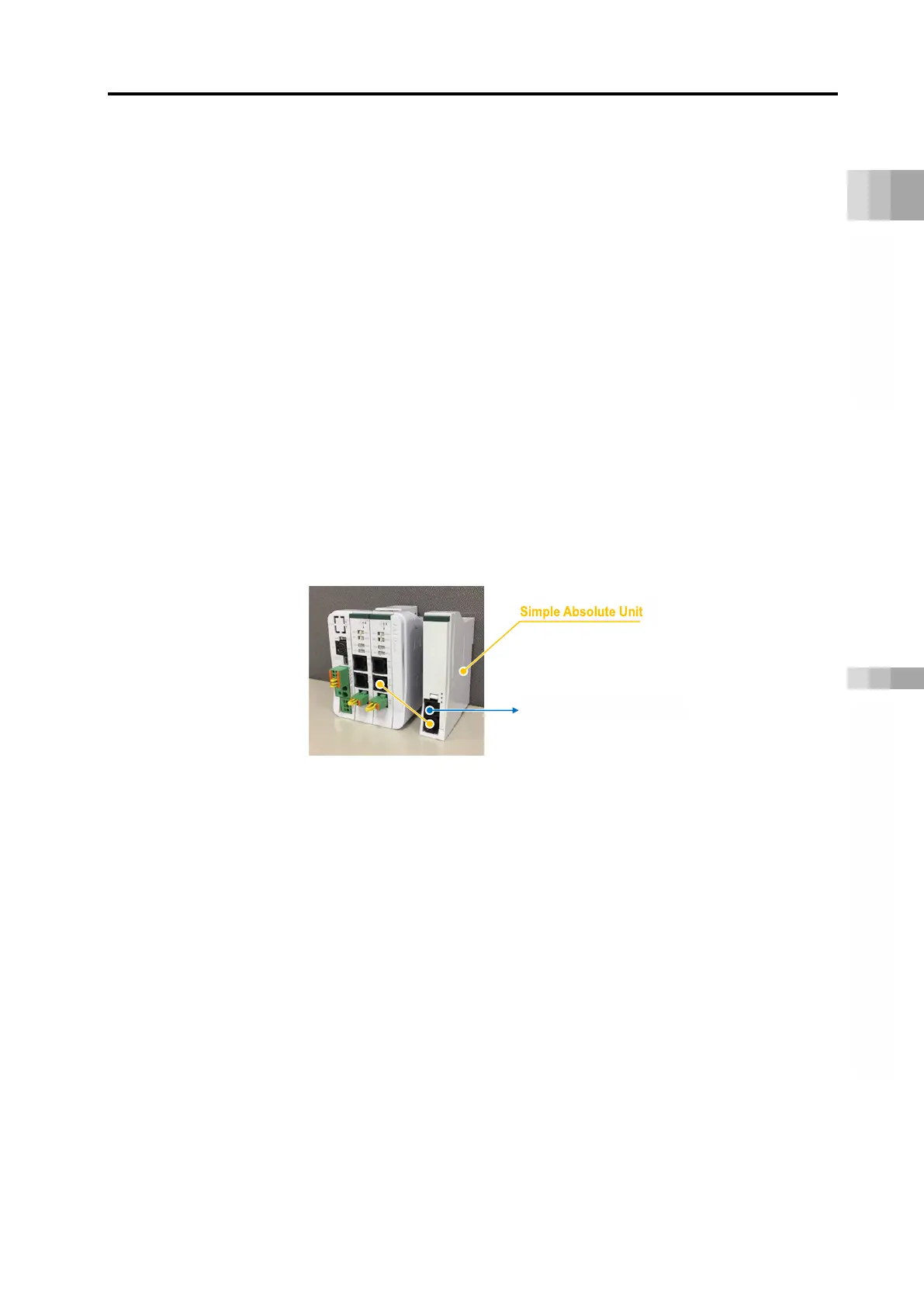

However, simple absolute units do not have a unit-connectable structure. Connect to the driver
unit with a cable after securing to a DIN rail.
To Next Page
